Recording Gear | Outboard | Microphone preamp
New | Condition: Brand New
API  |  Product Code: 528831

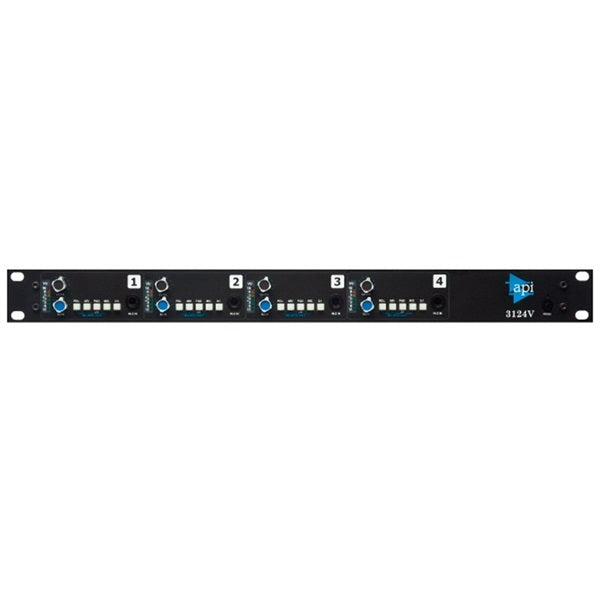

API 3124V (Discrete 4-Channel Mic/Line Preamp/DI) [Backorder item, delivery time approximately 3 weeks]

$3,919.00
Shipping calculated at checkout.
Product Condition
Brand New Unused, as sold.
Mint Like new, no flaws.
Excellent Barely used, very minor wear.
Very Good Light wear, fully functional.
Good Visible wear, plays fine.
Fair Heavy wear, still playable.
Product Inquiry

Description
★Discrete 4-channel mic/line preamp/DI

Like the API 3124+, the 3124V is a high-quality, compact 4-channel microphone preamplifier.
It features the RE-115K microphone input transformer and output transformer used in all API mic preamps and all API product lineups.
Additionally, the 3124V features a variable output level control and switchable 3:1 output transformer selection.

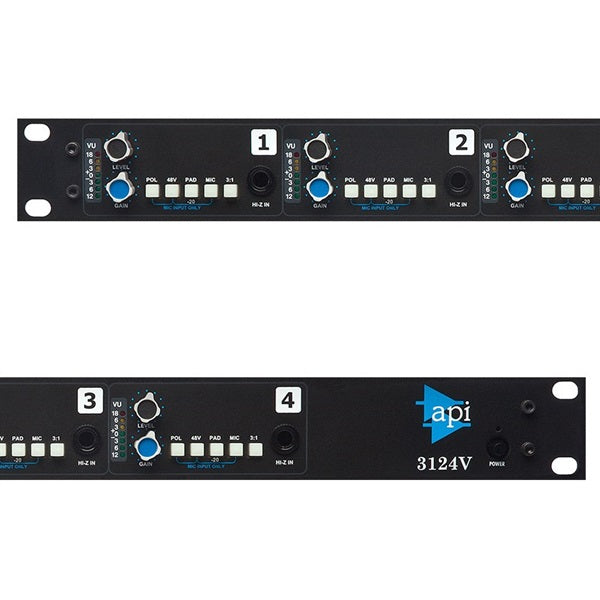

It also has a phantom power switch that can be switched on/off for each channel on the front panel.
Additionally, a -20dB pad switch is provided on the front panel for both the microphone and Hi-Z instrument inputs.

An output level control is included to allow compatibility with any DAW or other level-sensitive devices.
Additionally, the 3:1 output transformer tap selection provides a 9.5dB output attenuator.

The 3124V has a maximum gain of 65dB.
The Hi-Z input on the front panel is connected directly to the op amp.
It is possible to increase the input level of low-level, high-impedance instruments such as electric guitars and basses without passing them through a DI.
This Hi-Z input can accept input levels up to +20dBu, making it ideal for keyboards and other high-input electronic instruments.

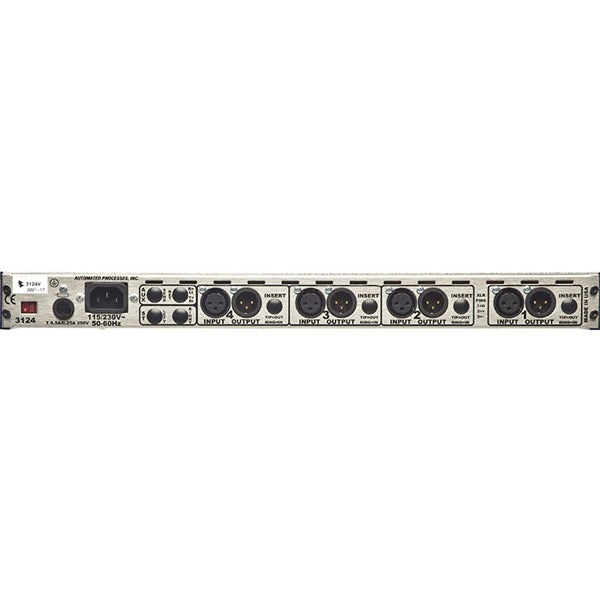

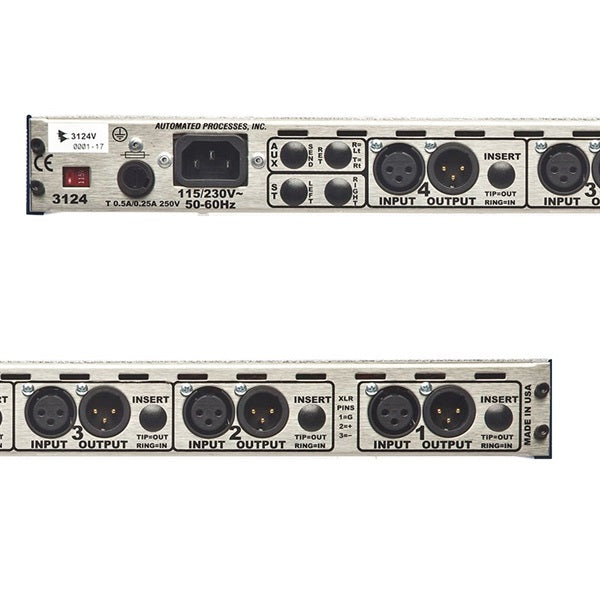

The output of the microphone preamp is output via an XLR connector on the rear panel.

Features: Classic API discrete circuit design, API's original 2520 op-amp, variable output level control, 3:1 output transformer tap selection, 4 XLR mic inputs, 4 front panel 1/4" Hi-Z instrument inputs, front panel polarity inversion switch, front panel -20dB pad, front panel mic/instrument selector switch, front panel 48V phantom power switch

■Product Specifications Input Impedance: Mic/1500Ω, Unbalanced or Hi-Z/470kΩ
Output impedance: 75 ohms or less Reference operating level: XLR connector +4 dBu
Stereo Output Level: Unbalanced/-2dBm, Balanced/+4dBm
Frequency response: +0, -5, 10Hz-20kHz (-0.5@10Hz)
Measured noise: -91dBm@+4 operation
THD: Maximum 0.03% at full output +4dBm, Maximum 0.09% at full output +22dBm
Gain Range: Min 10dB, Max 65dB (150Ω input, 20dB pad included)
Min 14dB, Max 50dB (Unbalanced input)
VU meter: 0VU=+4dBu
Power consumption: 19.2W
Size: Approx. W483 x H44 x D279 (mm)
Weight: approx. 4.7kg
