API 512V (API500 series)
Regular price
$1,188.00
Unit price
/
Unavailable
Description
Description
*This can be used by incorporating it into a dedicated power supply such as api500-6B, 500-H, etc. Please note that it cannot be used alone.
Discrete Mic/Line Preamp/DI (500 Series)
High gain up to 65dB Variable output level control 3:1 output transformer tap selection Front and rear panel mic inputs Line/instrument with up to 45dB gain Front panel combo XLR + 1/4 inch line/instrument input LED VU meter for output level monitoring 20dB pad switch for mic/line/instrument Built-in 48V phantom power (switchable)
-Traditional API discrete circuit design -Uses API's original 2520 op-amp

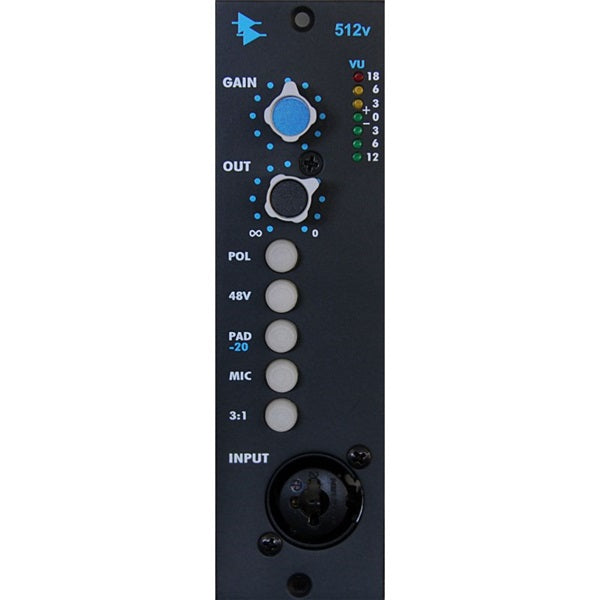

The API 512V is a mic/line/instrument preamp.
It is world-renowned for its low noise of -129 IEN and its ability to provide exceptional sound to any audio system.
The 512V offers the instantly recognizable API sound in a 500 series format at an affordable price.
It also has an impressively high gain of 65dB and features a variable output level control, switchable 3:1 output transformer selection, phantom power, switchable phase reverse switch, -20dB pad and mic/line/instrument selector on the front panel.
When inserted into an API Lunchbox, 500VPR or API console, you have the flexibility to use either the front panel combo XLR + 1/4 inch connector or the rear panel input.
An output level control is included to allow compatibility with any DAW or other level-sensitive devices.
Additionally, the 3:1 output transformer tap selection provides a 9.5dB output attenuator.
The circuit design faithfully follows that of API founder Saul Walker.
The 512V is an analog mic preamp with highly musical and rich sound, cleverly combined with API's original transformers and the incomparable 2520 op amp.
Hand-assembled, the 512V is fully functional and has the reliability, durability, and stability that are hallmarks of all API products.
Product Specifications
Front Connectors: XLR Mic Input, HI-Z 1/4 inch Unbalanced Input Mic Pre Gain Range: Mic / 34dB - 65dB (14dB - 45dB @ Pad Enabled), HI-Z / 14dB - 45dB (-6dB - 25dB @ Pad Enabled)
Maximum input level: Microphone / 8dB, Unbalanced HI-Z input / 36dB
Input impedance: Microphone input / 1500Ω, HI-Z unbalanced input / 400KΩ
Output Impedance: Less than 75 ohms, Transformer type floating balanced Clipping Level: +30dBu
Frequency response: +0, -0.3, 30 - 20 kHz
Noise: Microphone input / -95dBu, HI-Z unbalanced input / -90dBu
Distortion: Less than 0.05% @ +4dBu output, Less than 0.1% @ +28dBu output Power Consumption: ±12V / 18V / DC @ 40mA
Size: 1.5(W) x 5.25(H) x 7(D) inch
Shipping size: 4.5(W) x 6.5(H) x 10.25(D) inches
Weight: approx. 680g
Shipping weight: approx. 907g
Discrete Mic/Line Preamp/DI (500 Series)
High gain up to 65dB Variable output level control 3:1 output transformer tap selection Front and rear panel mic inputs Line/instrument with up to 45dB gain Front panel combo XLR + 1/4 inch line/instrument input LED VU meter for output level monitoring 20dB pad switch for mic/line/instrument Built-in 48V phantom power (switchable)
-Traditional API discrete circuit design -Uses API's original 2520 op-amp
The API 512V is a mic/line/instrument preamp.
It is world-renowned for its low noise of -129 IEN and its ability to provide exceptional sound to any audio system.
The 512V offers the instantly recognizable API sound in a 500 series format at an affordable price.
It also has an impressively high gain of 65dB and features a variable output level control, switchable 3:1 output transformer selection, phantom power, switchable phase reverse switch, -20dB pad and mic/line/instrument selector on the front panel.
When inserted into an API Lunchbox, 500VPR or API console, you have the flexibility to use either the front panel combo XLR + 1/4 inch connector or the rear panel input.
An output level control is included to allow compatibility with any DAW or other level-sensitive devices.
Additionally, the 3:1 output transformer tap selection provides a 9.5dB output attenuator.
The circuit design faithfully follows that of API founder Saul Walker.
The 512V is an analog mic preamp with highly musical and rich sound, cleverly combined with API's original transformers and the incomparable 2520 op amp.
Hand-assembled, the 512V is fully functional and has the reliability, durability, and stability that are hallmarks of all API products.
Product Specifications
Front Connectors: XLR Mic Input, HI-Z 1/4 inch Unbalanced Input Mic Pre Gain Range: Mic / 34dB - 65dB (14dB - 45dB @ Pad Enabled), HI-Z / 14dB - 45dB (-6dB - 25dB @ Pad Enabled)
Maximum input level: Microphone / 8dB, Unbalanced HI-Z input / 36dB
Input impedance: Microphone input / 1500Ω, HI-Z unbalanced input / 400KΩ
Output Impedance: Less than 75 ohms, Transformer type floating balanced Clipping Level: +30dBu
Frequency response: +0, -0.3, 30 - 20 kHz
Noise: Microphone input / -95dBu, HI-Z unbalanced input / -90dBu
Distortion: Less than 0.05% @ +4dBu output, Less than 0.1% @ +28dBu output Power Consumption: ±12V / 18V / DC @ 40mA
Size: 1.5(W) x 5.25(H) x 7(D) inch
Shipping size: 4.5(W) x 6.5(H) x 10.25(D) inches
Weight: approx. 680g
Shipping weight: approx. 907g
