RJM MICRO LINE MIXER
Regular price
$244.00
Unit price
/
Unavailable
Shipping calculated at checkout.
Product Condition
| Brand New | Unused, as sold. |
|---|---|
| Mint | Like new, no flaws. |
| Excellent | Barely used, very minor wear. |
| Very Good | Light wear, fully functional. |
| Good | Visible wear, plays fine. |
| Fair | Heavy wear, still playable. |
Couldn't load pickup availability
Description
Description

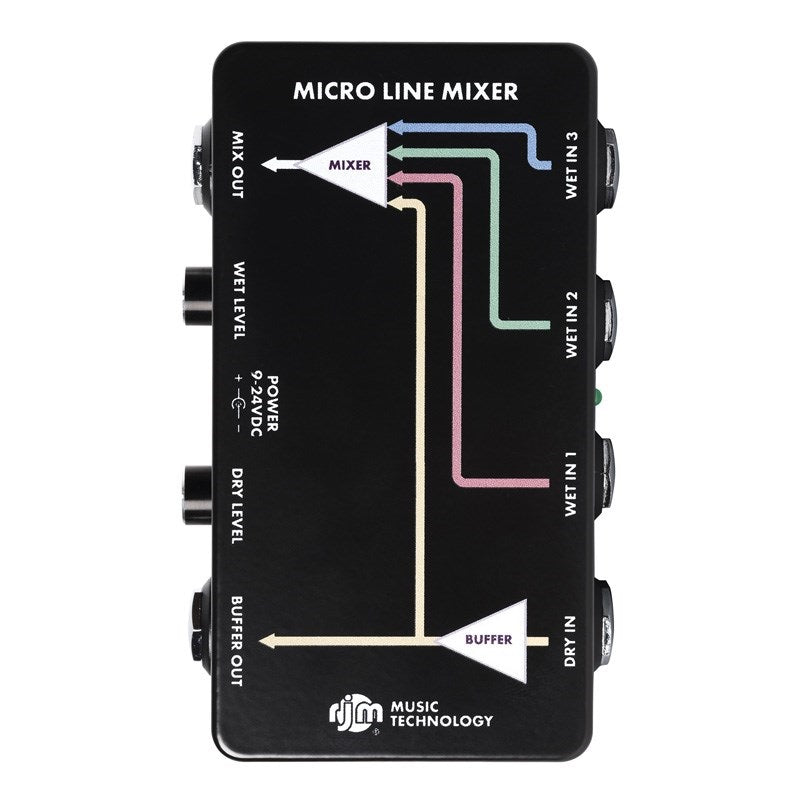

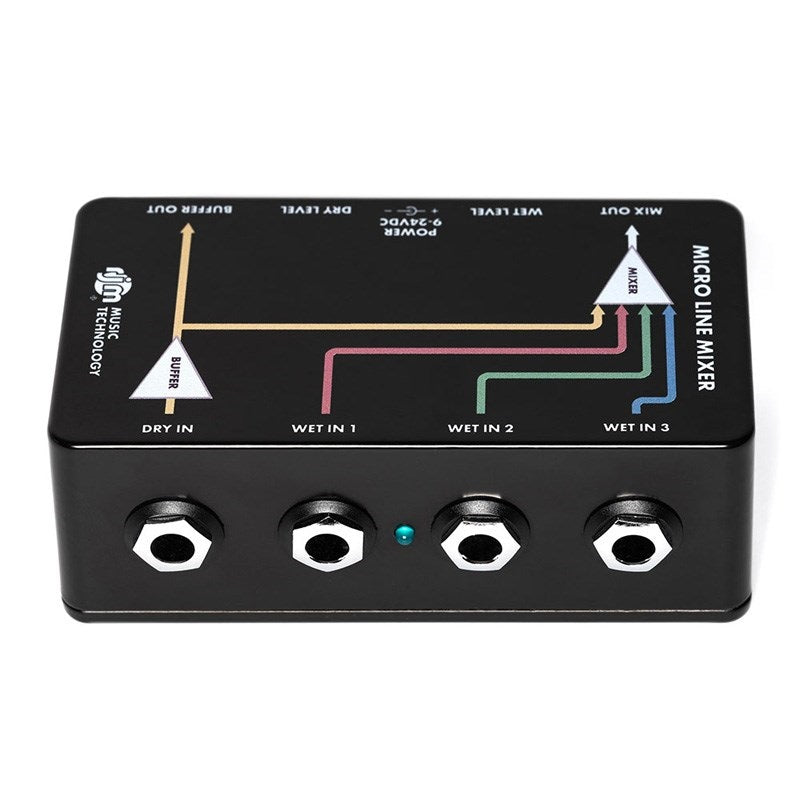

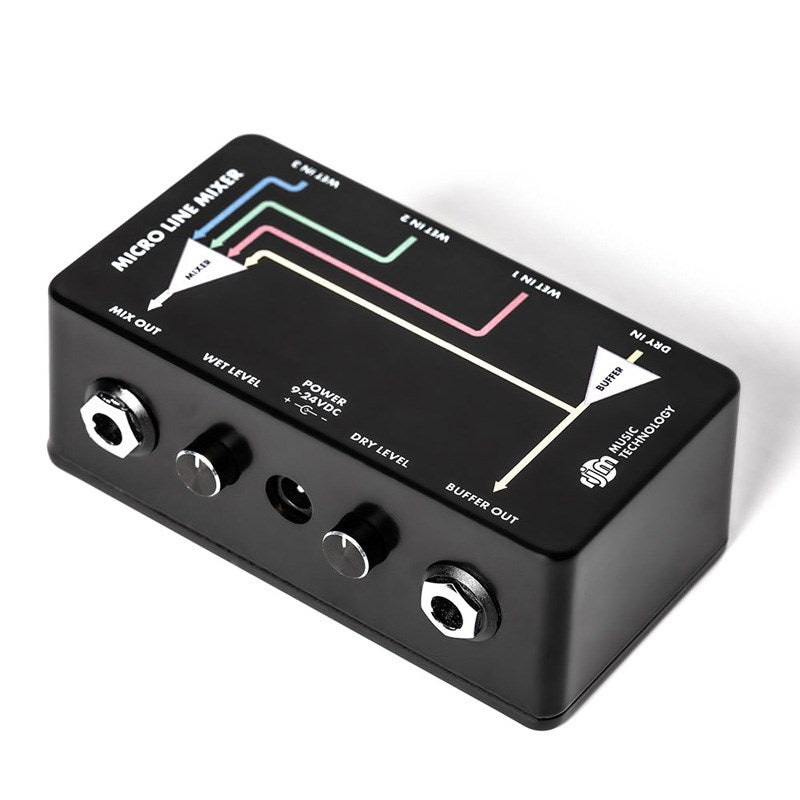

The RJM Micro Line Mixer significantly upgrades the potential of the original Line Mixer model. It is a compact stereo line mixer with four inputs and outputs that support mono/stereo input and output, and a dry/wet level adjustment function.

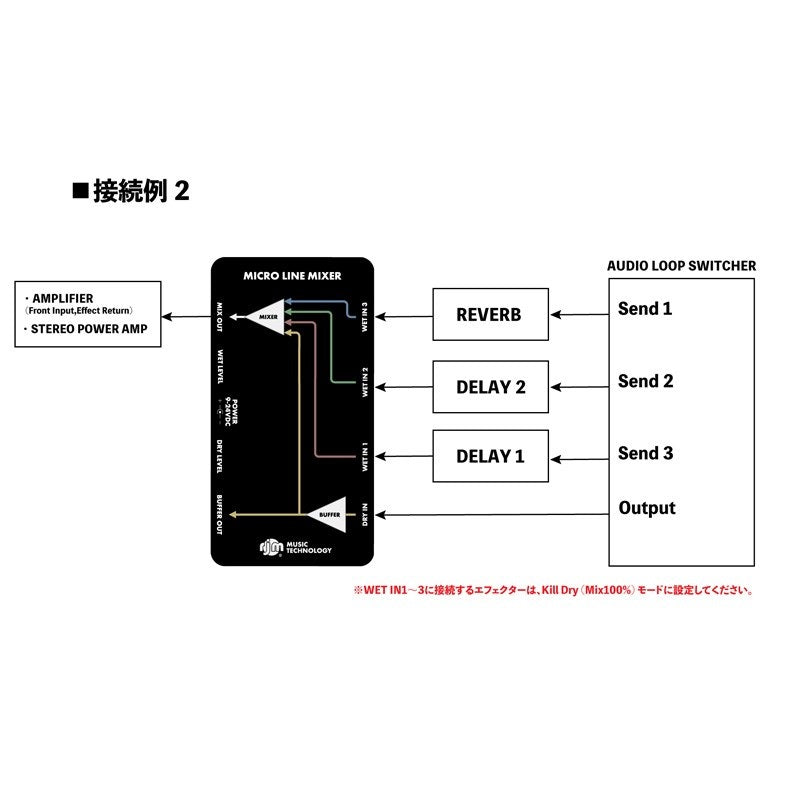

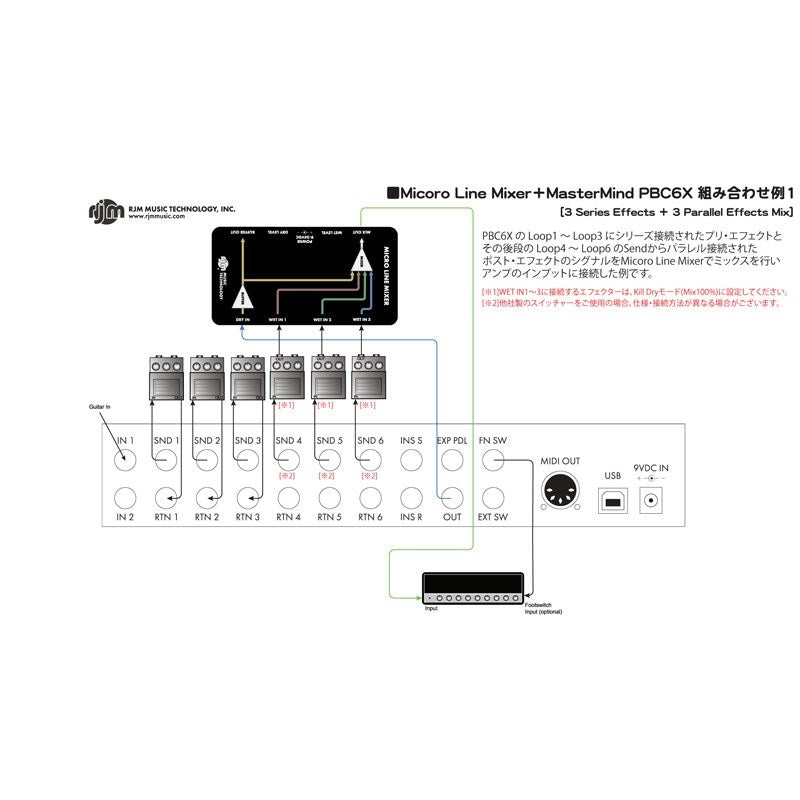

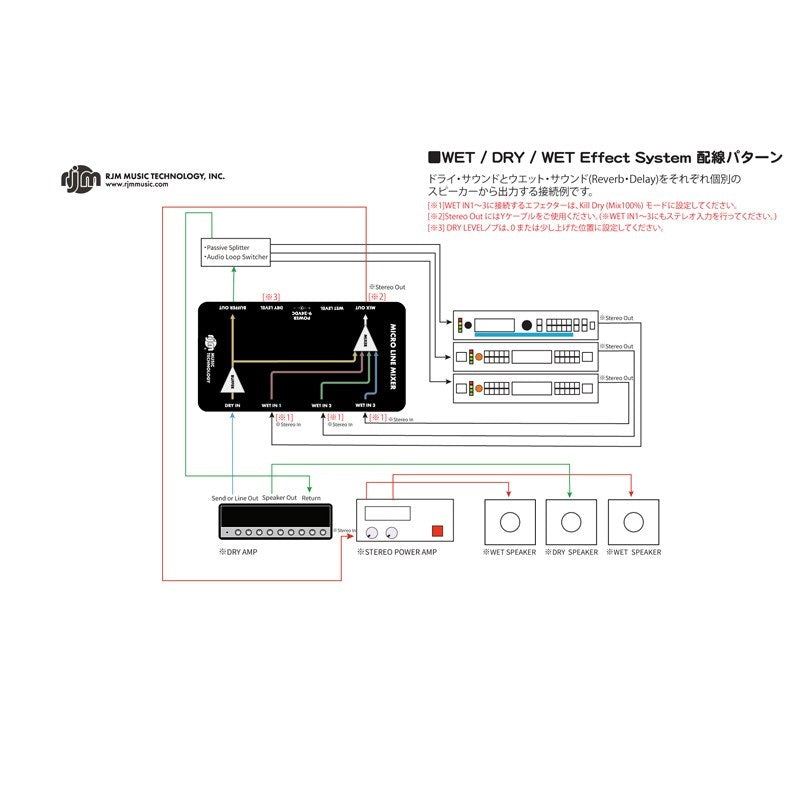

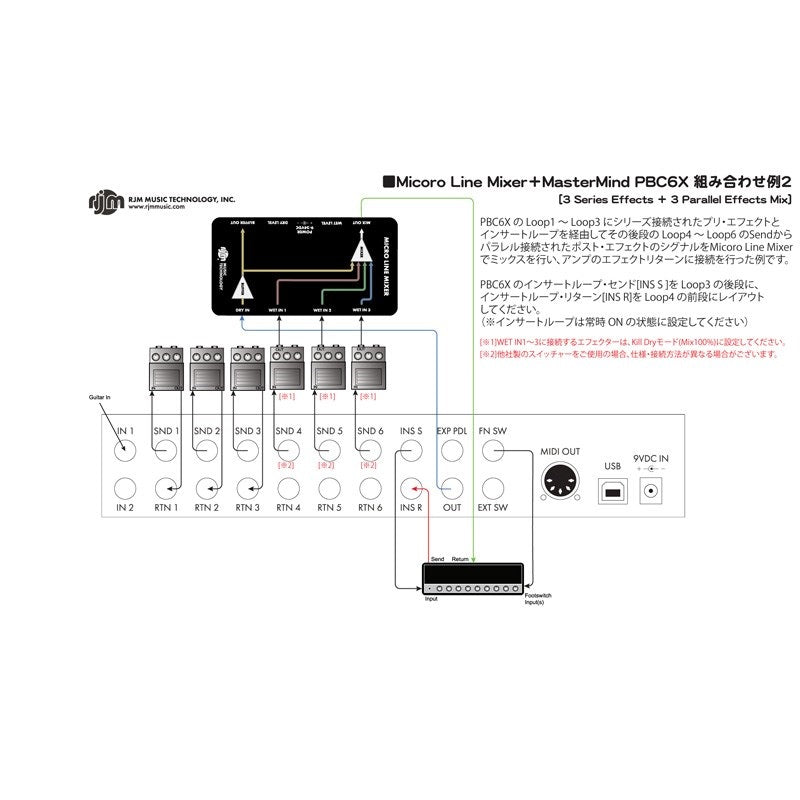

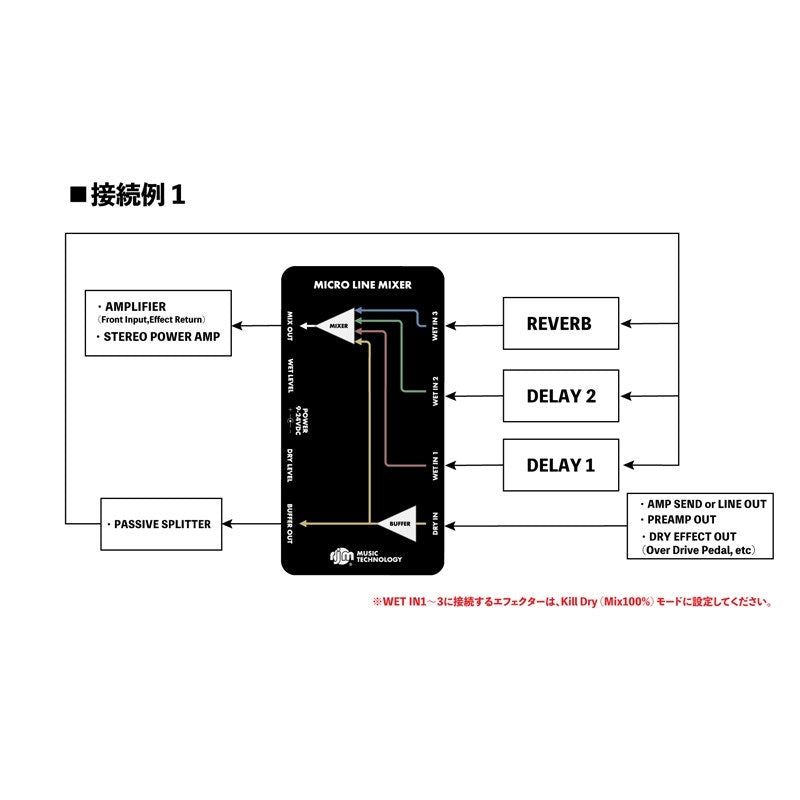

It is possible to mix the dry signal output from a guitar amp send or line out with the wet signal output from up to three spatial effect units (reverb, delay, etc.). Using the compact, high-quality MICRO LINE MIXER, you can not only perform parallel mixing, but also create a "Wet / Dry / Wet Effect System."
■Features
- Equipped with a dry input that passes through a high-quality RJM buffer circuit - Up to three effects can be connected in mono or stereo [※1]
- The signal input to DRY IN can be split internally and output from BUFFER OUT [※2]
・MIX OUT signal can be output in MONO or STEREO [※3]
-DRY LEVEL and WET LEVEL knobs allow for individual level adjustment. -DRY IN and BUFFER OUT can be switched to MONO or STEREO by changing the internal jumper wiring.
[※1] Set the connected effector to Kill Dry mode (Mix 100%).
[※2] If connecting to two or more effects pedals, a Y cable or passive splitter will be required separately.
[※3] Please use a Y cable for STEREO output.
■Specifications
Dry Input: 1MΩ input impedance
Wet inputs: 100kΩ input impedance
Outputs: 150Ω output impedance
Level Controls: -∞ to unity gain
Frequency Response: 20Hz-20kHz
Headroom: +9dBV using 9V power supply, more with higher voltage power supplies
Power Requirements: 9-24V DC (center negative polarity), 50mA minimum
BOSS-type power connector, 5.5mm/2.1mm barrel connector
Dimensions: 11.20 (w) x 6.05 (d) x 4.19 (h) cm
Weight: 227g
Made in USA
It is possible to mix the dry signal output from a guitar amp send or line out with the wet signal output from up to three spatial effect units (reverb, delay, etc.). Using the compact, high-quality MICRO LINE MIXER, you can not only perform parallel mixing, but also create a "Wet / Dry / Wet Effect System."
■Features
- Equipped with a dry input that passes through a high-quality RJM buffer circuit - Up to three effects can be connected in mono or stereo [※1]
- The signal input to DRY IN can be split internally and output from BUFFER OUT [※2]
・MIX OUT signal can be output in MONO or STEREO [※3]
-DRY LEVEL and WET LEVEL knobs allow for individual level adjustment. -DRY IN and BUFFER OUT can be switched to MONO or STEREO by changing the internal jumper wiring.
[※1] Set the connected effector to Kill Dry mode (Mix 100%).
[※2] If connecting to two or more effects pedals, a Y cable or passive splitter will be required separately.
[※3] Please use a Y cable for STEREO output.
■Specifications
Dry Input: 1MΩ input impedance
Wet inputs: 100kΩ input impedance
Outputs: 150Ω output impedance
Level Controls: -∞ to unity gain
Frequency Response: 20Hz-20kHz
Headroom: +9dBV using 9V power supply, more with higher voltage power supplies
Power Requirements: 9-24V DC (center negative polarity), 50mA minimum
BOSS-type power connector, 5.5mm/2.1mm barrel connector
Dimensions: 11.20 (w) x 6.05 (d) x 4.19 (h) cm
Weight: 227g
Made in USA
