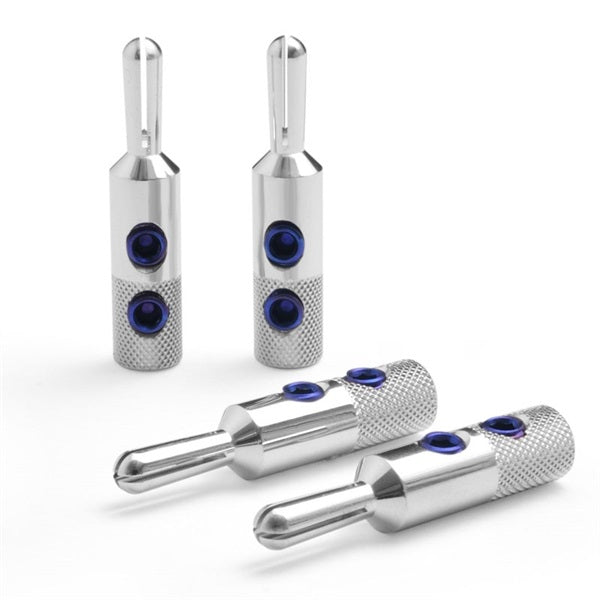

Oyaide SRBN (4-Piece Set) [Direct Silver-Plated + Rhodium-Plated] Banana Plugs
Regular price
$81.00
Unit price
/
Unavailable
Shipping calculated at checkout.
Product Condition
| Brand New | Unused, as sold. |
|---|---|
| Mint | Like new, no flaws. |
| Excellent | Barely used, very minor wear. |
| Very Good | Light wear, fully functional. |
| Good | Visible wear, plays fine. |
| Fair | Heavy wear, still playable. |
Couldn't load pickup availability
![SRBN_(4-Piece_Set)_[Direct_Silver-Plated_+_Rhodium-Plated]_Banana_Plugs_01](http://global.ikebe-gakki.com/cdn/shop/files/SRBN__4-Piece_Set___Direct_Silver-Plated___Rhodium-Plated__Banana_Plugs_01.jpg?v=1760165795&width=112)
Oyaide SRBN (4-Piece Set) [Direct Silver-Plated + Rhodium-Plated] B...
Regular price
$81.00
Unit price
/
Unavailable
Description
Description
The main body, which serves as the base for the fusion of sound and design, is machined from an 8mm diameter phosphor bronze round bar. The tip insertion section has a cross slit to ensure maximum contact area. The tip diameter was selected based on the size of a WBT speaker terminal. After more than a dozen cuts and tries in 30-micron increments, we selected the sweet spot that allows for easy insertion and prevents it from coming loose.
The cable insertion diameter (4mm) is matched with a 5mm screw. This ensures a perfect connection when using stranded wire. The screws are made of stainless steel. To finish the product, the body is carefully buffed by hand, given a mirror-like finish, and then plated twice with thick silver and rhodium.
◆Materials and Structure Smooth and tight. Phosphor bronze is used to minimize the number of parts and to ensure a secure hold with excellent spring properties.
To ensure maximum contact area, the tip is divided into four sections with cross slits, and the slits are designed to fit snugly when inserted. Over a dozen samples were created, ranging from the standard value of 3.8 mm to 30 μm increments, to select the size and shape that would provide the smoothest and tightest fit. We also tested speaker terminals other than those made by WBT, and the product is compatible with any terminal.
The maximum compatible cable diameter is set to 4mm (5.5sq). The cable insertion section is tapered to make it easier to insert the stranded wire into the main body. The connection method uses a dual screw clamp. A high-rigidity 5mm diameter stainless steel screw is used for the 4mm diameter cable penetration section. This eliminates any gaps between the main body and the screw, ensuring a secure connection and fixation between the cable and main body with two screws.
The screws that secure the cables are made of blued stainless steel that has been hardened. Hardening the screws improves their mechanical strength and also helps prevent oxidation.
An 8mm phosphor bronze rod is machined with high precision using a highly programmed CNC machine. The machined body is then mechanically barrel polished and then individually buffed by hand. The mirror-finished body is then directly plated with thick silver and then finished with rhodium plating.
■Specifications Material: Phosphor bronze
Plating: Direct silver plating (1.5μ) + rhodium plating (0.3μ)
Cable connection method: Dual screw clamp method
Outer diameter: 8.0 mm
Compatible cable diameter: 4.0mm (5.5sq)
Packing quantity: 4 pieces per set
Other: L-shaped hex wrench included
The cable insertion diameter (4mm) is matched with a 5mm screw. This ensures a perfect connection when using stranded wire. The screws are made of stainless steel. To finish the product, the body is carefully buffed by hand, given a mirror-like finish, and then plated twice with thick silver and rhodium.
◆Materials and Structure Smooth and tight. Phosphor bronze is used to minimize the number of parts and to ensure a secure hold with excellent spring properties.
To ensure maximum contact area, the tip is divided into four sections with cross slits, and the slits are designed to fit snugly when inserted. Over a dozen samples were created, ranging from the standard value of 3.8 mm to 30 μm increments, to select the size and shape that would provide the smoothest and tightest fit. We also tested speaker terminals other than those made by WBT, and the product is compatible with any terminal.
The maximum compatible cable diameter is set to 4mm (5.5sq). The cable insertion section is tapered to make it easier to insert the stranded wire into the main body. The connection method uses a dual screw clamp. A high-rigidity 5mm diameter stainless steel screw is used for the 4mm diameter cable penetration section. This eliminates any gaps between the main body and the screw, ensuring a secure connection and fixation between the cable and main body with two screws.
The screws that secure the cables are made of blued stainless steel that has been hardened. Hardening the screws improves their mechanical strength and also helps prevent oxidation.
An 8mm phosphor bronze rod is machined with high precision using a highly programmed CNC machine. The machined body is then mechanically barrel polished and then individually buffed by hand. The mirror-finished body is then directly plated with thick silver and then finished with rhodium plating.
■Specifications Material: Phosphor bronze
Plating: Direct silver plating (1.5μ) + rhodium plating (0.3μ)
Cable connection method: Dual screw clamp method
Outer diameter: 8.0 mm
Compatible cable diameter: 4.0mm (5.5sq)
Packing quantity: 4 pieces per set
Other: L-shaped hex wrench included
