Ibanez LD303 [Layer Delayer]

Ibanez's innovative, multi-functional delay effect pedal greatly expands the range of expression depending on the player's ideas!!
The LD303 Layer Delayer is an innovative effect pedal that expands the possibilities of delay.

By generating delay signals for sixteenth notes and triplets, and individually controlling the volume of each, you can freely create rhythmic and three-dimensional delay patterns.
Furthermore, it supports tone adjustment via TONE and FILTER controls, integration with external effects via FX loops, and editing via a PC application.
This multi-functional delay effect pedal stimulates the creativity of a wide range of musicians, from guitarists and bassists to keyboardists, greatly expanding the possibilities of expression depending on the user's ideas.

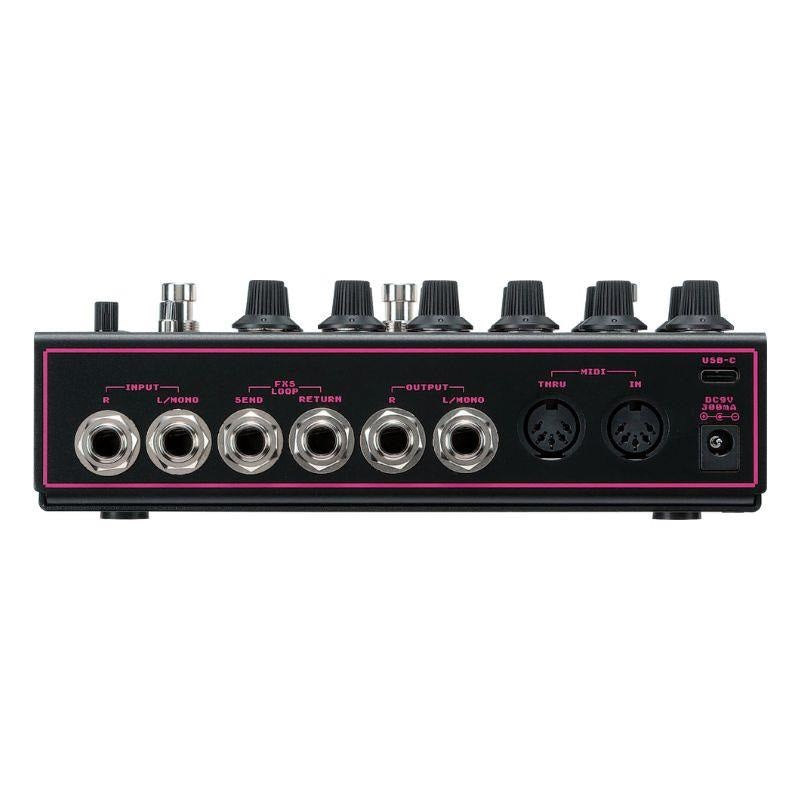

- Individual volume control for 16th note and triplet delay sounds - Equipped with Stereo In/Out, FX Loop located in the delay signal path, and MIDI In/Thru terminals - Simulates three types of delay sounds: digital, analog, and tape echo - Simulates a low-pass ladder filter - Features a Tail function to adjust the attenuation of the delay sound, 8 auto-pan modes, and a tap tempo footswitch - Includes 20 factory presets out of 50 presets - The latest firmware, updater, and Layer Delayer app can be downloaded from the link below.



[Delay Signal Volumes]
The delay time is set to the length of a quarter note, and the system generates corresponding sixteenth note and triplet delay signals.
1st, 2nd/4, 3rd/4, and 4th/4 correspond to sixteenth notes, while 1st, 2nd/3, and 3rd/3 correspond to triplets.
You can individually boost up to 3dB.


【TONE】
Adjusts the tone of the delay sound.
It's possible to seamlessly switch between three types of delay: digital, analog, and tape echo.
It produces a wide variety of expressive delay sounds.


【FILTER】
It emulates the classic low-pass ladder filter that is iconic to Moog synthesizers.
The CUT OFF and RESONANCE controls allow for a wide range of expression, from a sharp, distinctive character to a natural low-pass filter sound with reduced resonance.
(Moog is a registered trademark of inMusic MMI Acquisition LLC.)


【TAIL DECAY】
The Tail function allows you to retain the delay sound even after turning off the effect.
The knob adjusts the amount of feedback, which determines how much of the delay sound remains.
Setting the parameter to 0 will instantly mute the output while simultaneously turning off the effect.
Setting it to a high value around 90-100 will produce a delay sound that lasts for a long time even after bypassing.


[Auto-panning]
Taking advantage of the panning effect unique to stereo output, it features eight types of auto-pan modes.
It dynamically moves the delay signal within the stereo field, creating a three-dimensional sound.
In addition to panning modes such as left-to-right, right-to-left, and ping-pong, you can select wide or narrow sweep widths for each mode.
Furthermore, the sweep speed can also be adjusted, allowing for precise control over the panning effect.


[MIDI]
Each parameter can be controlled with a MIDI controller.
Furthermore, it supports MIDI clock messages, allowing you to synchronize the delay time with external devices.
