NUX | Product Code:
731949
Sold out
12% off
Newly Added
NUX TAPE ECHO
Sale price
$156.00
Regular price
$178.00
Unit price
/
Unavailable
Shipping calculated at checkout.
Product Condition
| Brand New | Unused, as sold. |
|---|---|
| Mint | Like new, no flaws. |
| Excellent | Barely used, very minor wear. |
| Very Good | Light wear, fully functional. |
| Good | Visible wear, plays fine. |
| Fair | Heavy wear, still playable. |
Couldn't load pickup availability
Description
Description

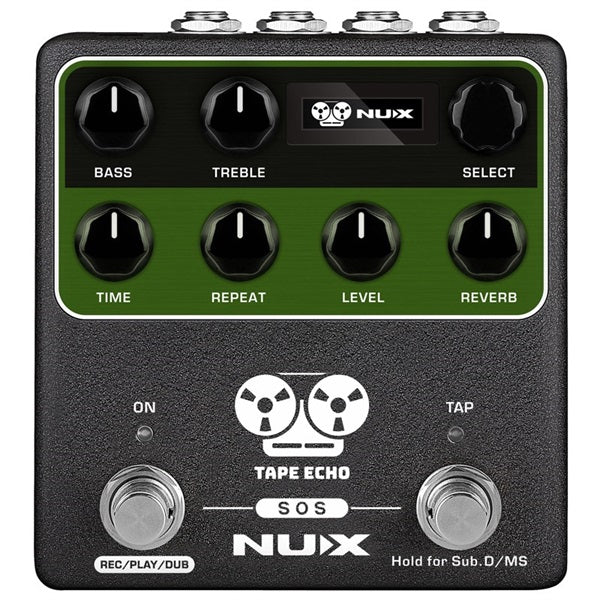

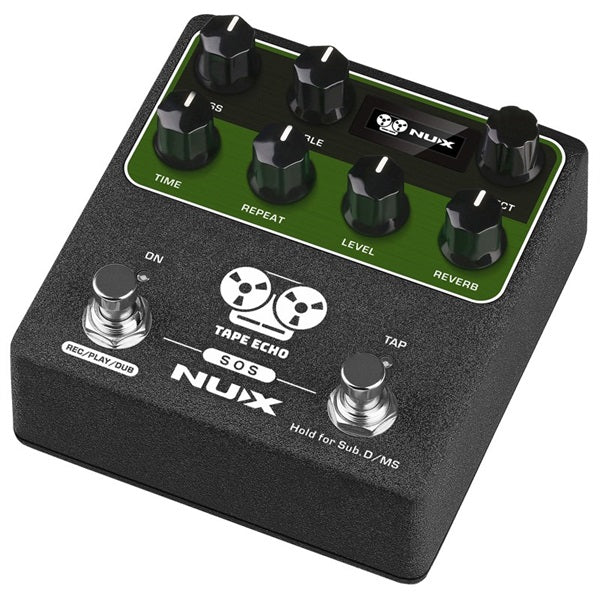

The NUX Tape Echo is modeled after the Japanese-made Space Echo, released in 1974. NUX's unique Core Image Technology delivers a realistic sound.
It reproduces seven different combinations using three playback heads. It also allows you to switch between MS/BPM (Sub-division). It also includes spring reverb, self-feedback that reproduces oscillation sounds even from silent conditions, and a built-in looper. Intuitively operate the various controls to create a pleasant echo sound.
NUX's unique Core Image Technology reproduces realistic echo sounds. Spring reverb is also included.
- Seven sound variations using three playback heads. MS/BPM (Sub-division) switching is also possible. The selected tape head is shown on the display, so you can see what is selected at a glance.
- SATURATION reproduces the distortion and compression of a preamp, and WOW and FLUTTER reproduce the fluctuation of the echo sound and can be set individually. It also has a KILL DRY function that turns off the dry signal (original sound) and outputs only the echo sound.
- Tap tempo allows you to set the time with your feet.
-It also has a self-feedback function that oscillates by pressing and holding the ON switch even when there is no input signal, and an SOS (Sound on Sound) mode (40-second phrase loop).

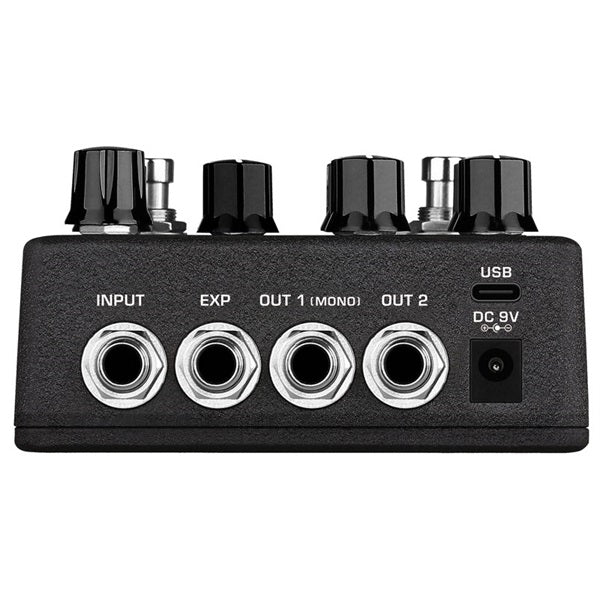

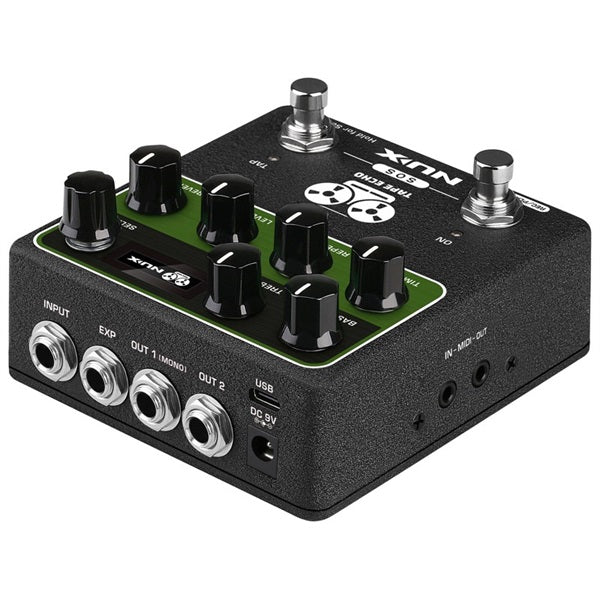

It also supports stereo output for reproducing a wider echo sound. It is also equipped with terminals for connecting external expression pedals and MIDI devices, and a 3.5mm TRS to 5-pin MIDI cable is included.

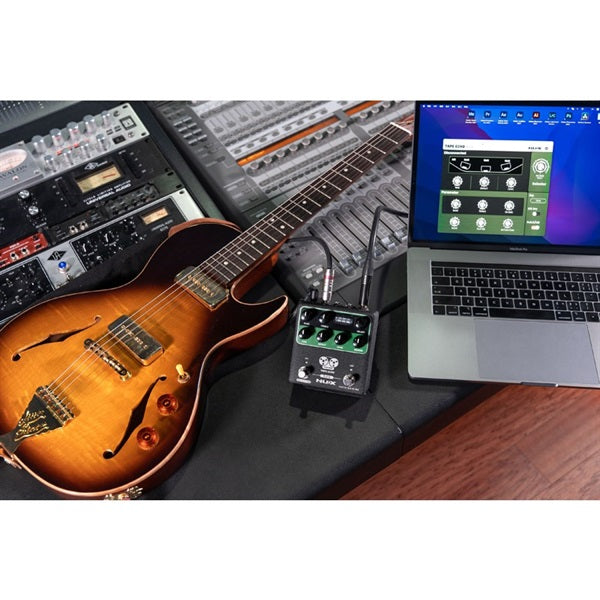

- You can connect it to a PC and use the "Tape Echo Editor Software" to set parameters and MIDI assignments.
SPEC
Sampling Rate: 48kHz
A/D Converter: 32-bit
Signal Processing: 32-bit
Frequency Response: 20Hz~20kHz - ±1dB
Input Impedance: 5MΩ
Maximum Input Level: 1.5Vrms
Output Impedance: 100Ω
Maximum Output Level: 1.5Vrms
System Latency: 1ms
Dynamic Range: 103dBu/105dBu (A-Weighting)
THD+N Ratio: 0.0038%@Input 1Vrms_1kHz, 0.01%@Input 1.5Vrms_1kHz
Power: 9V DC (center negative, NUX ACD-006A recommended)
Current Draw: approximately 100mA, 150mA
Dimensions: 105(L) x 115(W) x 58(H) mm
Weight: 440 g
Accessories: 3.5mm TRS to 5pinMIDI cable x 2
*The USB Type-C cable for connecting to a PC is sold separately. Please prepare a cable that is capable of data communication.
* To download the editor software, please download "Tape Echo Edit Software (Mac or Windows)" from the bottom of the NUX Tape Echo website (Support). If you are using it with a Windows PC, please also download and install the NUX ASIO Driver from the same website.
It reproduces seven different combinations using three playback heads. It also allows you to switch between MS/BPM (Sub-division). It also includes spring reverb, self-feedback that reproduces oscillation sounds even from silent conditions, and a built-in looper. Intuitively operate the various controls to create a pleasant echo sound.
NUX's unique Core Image Technology reproduces realistic echo sounds. Spring reverb is also included.
- Seven sound variations using three playback heads. MS/BPM (Sub-division) switching is also possible. The selected tape head is shown on the display, so you can see what is selected at a glance.
- SATURATION reproduces the distortion and compression of a preamp, and WOW and FLUTTER reproduce the fluctuation of the echo sound and can be set individually. It also has a KILL DRY function that turns off the dry signal (original sound) and outputs only the echo sound.
- Tap tempo allows you to set the time with your feet.
-It also has a self-feedback function that oscillates by pressing and holding the ON switch even when there is no input signal, and an SOS (Sound on Sound) mode (40-second phrase loop).
It also supports stereo output for reproducing a wider echo sound. It is also equipped with terminals for connecting external expression pedals and MIDI devices, and a 3.5mm TRS to 5-pin MIDI cable is included.
- You can connect it to a PC and use the "Tape Echo Editor Software" to set parameters and MIDI assignments.
SPEC
Sampling Rate: 48kHz
A/D Converter: 32-bit
Signal Processing: 32-bit
Frequency Response: 20Hz~20kHz - ±1dB
Input Impedance: 5MΩ
Maximum Input Level: 1.5Vrms
Output Impedance: 100Ω
Maximum Output Level: 1.5Vrms
System Latency: 1ms
Dynamic Range: 103dBu/105dBu (A-Weighting)
THD+N Ratio: 0.0038%@Input 1Vrms_1kHz, 0.01%@Input 1.5Vrms_1kHz
Power: 9V DC (center negative, NUX ACD-006A recommended)
Current Draw: approximately 100mA, 150mA
Dimensions: 105(L) x 115(W) x 58(H) mm
Weight: 440 g
Accessories: 3.5mm TRS to 5pinMIDI cable x 2
*The USB Type-C cable for connecting to a PC is sold separately. Please prepare a cable that is capable of data communication.
* To download the editor software, please download "Tape Echo Edit Software (Mac or Windows)" from the bottom of the NUX Tape Echo website (Support). If you are using it with a Windows PC, please also download and install the NUX ASIO Driver from the same website.
