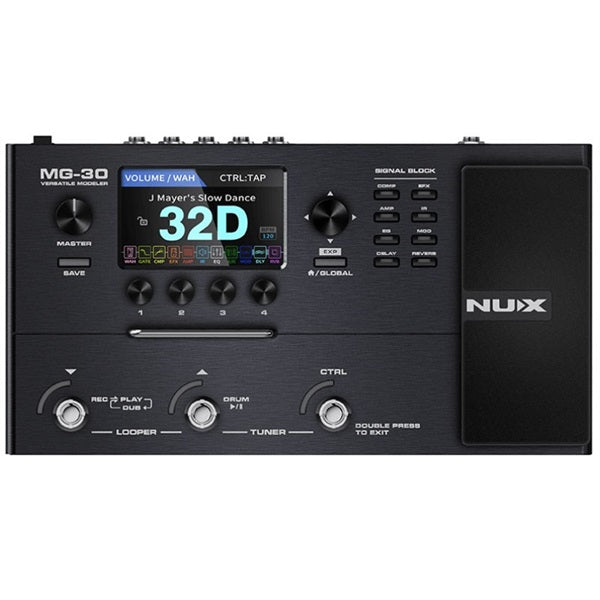

NUX MG-30

The MG-30 is equipped with two powerful DSPs, featuring a high-resolution white-box amp modeling algorithm (TSAC-HD) and Core Image effects, reproducing a more realistic and clearer sound.
Equipped with send/return and EXP terminals, it supports a variety of setups. It also has a built-in 1024-sample IR cabinet simulator, and the signal blocks can be connected in different order, as well as in parallel.
The MG-30 also features an IR acoustic guitar simulator, bass amp modeling, and a built-in cabinet simulator, making it suitable for bass applications. The MG-30's intuitive operation allows you to create a wide variety of high-quality sounds.


- Equipped with two powerful DSPs, it combines NUX's proprietary TSAC-HD (True Simulation of Analog Circuit, White Box) algorithm with 1024 sample IRs to reproduce a more realistic and vivid sound while maintaining low latency.
- Two 2-channel 32-bit audio codecs with 110dB S/N ratio.

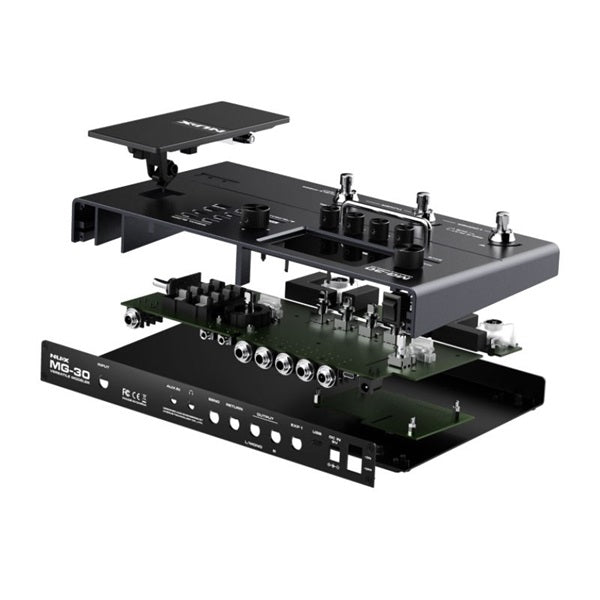

- Aluminum alloy exterior.
- Intuitive 4-inch 800 x 480 color LCD display.
- Built-in amp modeling (25 types for guitar, 3 types for bass, 2 types for acoustic), effects (12 types for drive, 3 types for compressor, 13 types for modulation, 7 types for delay, 5 types for reverb, 5 types for wah pedal), 4 types of equalizer, and noise gate.
- 11 independent, movable signal blocks (WAH, CMP, GATE, EFX, AMP, IR, EQ, S/R, MOD, DLY, RVB). MOD/DLY/RVB blocks can also be routed in parallel.
- Eight guitars (eight microphones x three microphone positions can be selected), eight bass IR cabinet simulators, and three IR acoustic guitar simulators are built in. In addition, third-party IR data can be loaded into each patch. (48kHz, 1028 samples)
- Equipped with send/return terminals that allow you to change the connection order by moving the signal blocks.
- Includes 67 drum tracks and a 60-second looper.
Connect to your computer via the USB port. Use it as a USB audio interface or for re-amping. You can also update the firmware and easily set patches and load IR data on your PC using the free Quick Tone Editor Software.
- Includes 32 groups x 4 patches, including patches created by famous guitarists such as Kazuya Yamaguchi, Pete Thorn, and Leon Todd.
- Equipped with an EXP terminal and a foot switch (NMP-2 LITE) that can be used to turn signal block on/off or as a tap switch.

Input Impedance: 1M ohm (INPUT), 220k ohm (RETURN)
Output Impedance: 1k ohm (OUTPUT), 1k ohm (SEND)
A/D Converter: 32bit
Sampling Frequency: 48kHz
Frequency Response: 20Hz-20kHz
Dynamic Range: 110dB
Current Draw: ＜400mA
Power: DC9V, center negative
Dimension: 313(L) x 166(W) x 54(H) mm
Weight: 1.5 kg
Accessories: AC adapter, USB cable, NMP-2 LITE (dual foot switch), TRS patch cable for connecting the foot switch
