Lynx | Product Code:
538231
5% off
Newly Added
Lynx AURORA(n) 32 - TB3 (32-channel input/output model) (Audio Interface) (Lynx)
Sale price
$7,222.00
Regular price
$7,598.00
Unit price
/
Unavailable
Shipping calculated at checkout.
Product Condition
| Brand New | Unused, as sold. |
|---|---|
| Mint | Like new, no flaws. |
| Excellent | Barely used, very minor wear. |
| Very Good | Light wear, fully functional. |
| Good | Visible wear, plays fine. |
| Fair | Heavy wear, still playable. |
Couldn't load pickup availability
Lynx AURORA(n) 32 - TB3 (32-channel input/output model) (Audio Inte...
Sale price
$7,222.00
Regular price
$7,598.00
Unit price
/
Unavailable
Description
Description
*The Thunderbolt connector has been changed from the previous TB2 to the current TB3.
◎AURORA(n) 32 - TB3◎
32-channel model, connects to computer via Thunderbolt, supports daisy-chaining of up to six devices per TB port
★Next-generation interface
Aurora(n) is a next-generation mastering-grade A/DD/A converter that was a complete redesign of the groundbreaking Aurora. Building on the foundation of the original model, it offers even greater quality and functionality.
Key Features: 24-bit/192kHz mastering-grade A/DD/A conversion. Wide range of options to suit your budget and scale: 8, 16, 24, or 32 channels (1U size).
Modular expansion system - add preamplifiers, analog summing and digital connectivity (AES3 + ADAT) options*
1-in/3-out word clock using Lynx's second-generation SynchroLock 2 technology. Future-proof LSlot card design - USB, Thunderbolt, ProTools|HD, and DANTE connectivity available (connection methods vary by model).
Built-in microSD recorder - supports up to 32 channels of direct recording and playback Two high-end audio-grade headphone outputs with independent volume controls**
Fully compatible with Windows and macOS. Rugged rack-mount chassis. Designed and manufactured in Southern California, USA.
●Details◎The Importance of TransparencyFor a natural and pristine mix, signal coloration is merely an unnecessary element.Did you know that the breadth, clarity, and definition essential for a transparent mix can never be provided by converters that cannot avoid coloration and distortion?Lynx Studio Technology's proven transparent sound has led their converters to be used in top recording facilities and various audio applications around the world.
Loved by audio engineers and producers seeking pristine recordings and mixes, Lynx converters, without adding unnatural coloration, are used in Dolby's new audio research facility, Skywalker Sound, NRP, and the Smithsonian Institute. Aurora(n) takes this to the next level, with even greater precision than ever before, eliminating even the slightest hint of coloration or degradation of the signal.
Discrete Converter Design: Some manufacturers combine multiple converters onto a single chip. This has the advantage of allowing more converter channels to be accommodated in a single rack space, reducing cost, but inevitably compromising performance. Lynx designs each channel's analog signal path as a separate, shielded circuit - meaning each channel pair has its own dedicated converter. This design offers many audio advantages, including significantly reduced crosstalk and distortion while improving dynamic range and performance.
◎Hilo Converter Technology (HCT)
The Aurora(n) incorporates the design and technology gained through the development of Hilo, achieving the same incredible performance as Hilo, which is popular not only in professional audio but also in the high-fidelity audio field, while achieving superior specifications and transparency that far surpass those of its predecessor.
◎ Future-proof design ・Add channels - Expandable to a maximum of 32 channels by adding 8 channels at a time ・Add modules - Digital (AES3 + ADAT), mic preamp, and analog summing module options will be released in the future*
Supports a variety of connectivity options - Thunderbolt, DANTE, ProTools|HD, and USB via LSlot card. Firmware updates provide additional features and improvements, just like Hilo and Aurora.
◎SynchroLock 2
Newly designed high-performance sample clock technology, SynchroLock 2, provides an astounding 300,000:1 jitter reduction, 5-second lock time, and extremely high accuracy.
It has one word clock input and three outputs via BNC connectors, making it ideal as a master clock in small systems.
■Technical Specifications◆Analog Performance○Line input (after AD conversion)
THD+N (High Frequency Distortion): -113dB @ 1kHz, -1dBFS, 20kHz filter, +20dBu trim Dynamic Range: 119dB, A-weighted, -60dBFS signal method Frequency Response: ±0.010dB, 20-20kHz
Maximum crosstalk: -130dB @ 1kHz, -1dBFS Signal and common mode rejection: >80dB Full scale trim settings: +6dBV, 20dBu
○Line output (after DA conversion)
THD+N (High Frequency Distortion): -108dB @ 1kHz, -1dBFS, 20kHz filter, +20dBu trim Dynamic Range: 120dB, A-weighted, -60dBFS signal method Frequency Response: ±0.025dB, 20-20kHz
Maximum Crosstalk: -130dB @ 1kHz, -1dBFS signal Full-scale trim setting: +6dBV, 20dBu

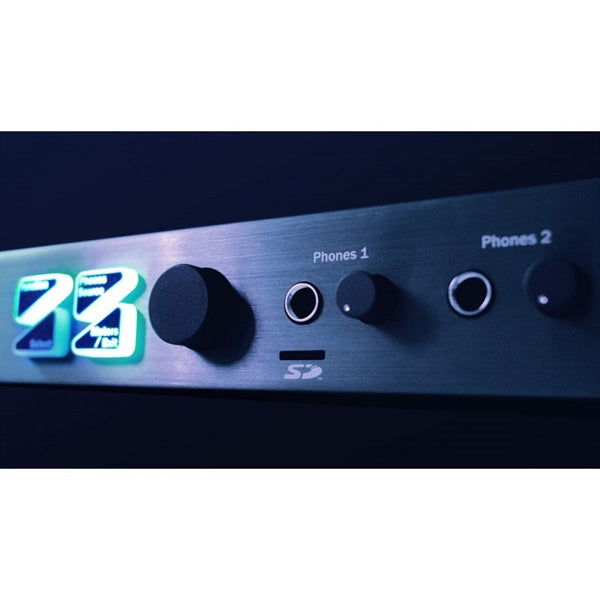

Headphone output (after DA conversion)
THD+N (High Frequency Distortion): -107dB @ 1kHz, -1dBFS, 20kHz filter, volume max. Dynamic Range: 120dB, A-weighted, -60dBFS signal method. Frequency Response: ±0.025dB, 2020kHz.
Maximum Crosstalk: -120dB @ 1kHz, -1dBFS signal Maximum Output Level: 18.4dBu
** It is not possible to assign different sources to Phones 1 and Phones 2.
Digital input/output
AES3 + ADAT I/O (Scheduled for release in 2017)
Software
Lynx Mixer for Aurora(n) Thunderbolt models (Thunderbolt driver included)
○Other
*The following additional modules are scheduled for release in 2017: Digital I/O
・Microphone preamplifier ・Analog summing

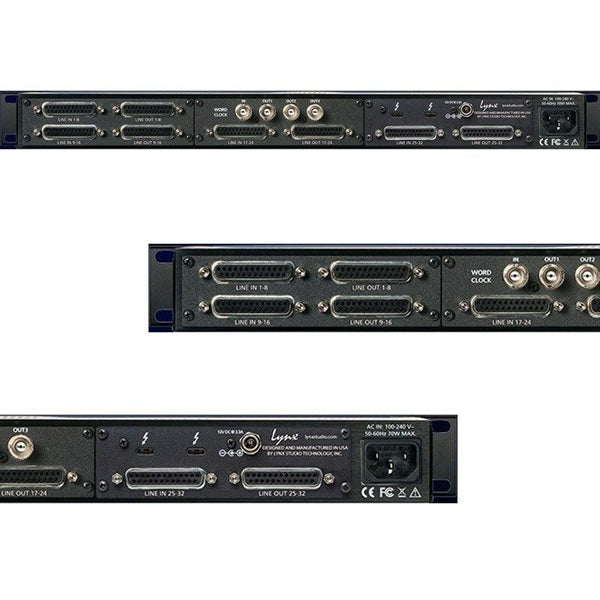

Analog input terminal
Aurora(n) 8: DB25 x 1
Aurora(n) 16: DB25 x 2
Aurora(n) 24: DB25 x 3
Aurora(n) 32: DB25 x 4
Analog output terminal
Aurora(n) 8: DB25 x 1
Aurora(n) 16: DB25 x 2
Aurora(n) 24: DB25 x 3
Aurora(n) 32: DB25 x 4
○Size width: 19 inches (approximately 48.26 cm)
Height: 1.7 inches (approximately 4.32 cm)
Depth: 10 inches (approx. 25.4 cm)
○Weight
Aurora(n) 8: 7lbs (approx. 3.18kg)
Aurora(n) 16: 7.1lbs (approx. 3.22kg)
Aurora(n) 24: 7.2lbs (approx. 3.27kg)
Aurora(n) 32: 7.3lbs (approx. 3.31kg)
○LSlot connection option
Aurora(n) offers versatile connectivity options - its LSlot design allows you to change the connection method as needed.
*Please check the latest operating environment on the manufacturer's website before purchasing.
◎AURORA(n) 32 - TB3◎
32-channel model, connects to computer via Thunderbolt, supports daisy-chaining of up to six devices per TB port
★Next-generation interface
Aurora(n) is a next-generation mastering-grade A/DD/A converter that was a complete redesign of the groundbreaking Aurora. Building on the foundation of the original model, it offers even greater quality and functionality.
Key Features: 24-bit/192kHz mastering-grade A/DD/A conversion. Wide range of options to suit your budget and scale: 8, 16, 24, or 32 channels (1U size).
Modular expansion system - add preamplifiers, analog summing and digital connectivity (AES3 + ADAT) options*
1-in/3-out word clock using Lynx's second-generation SynchroLock 2 technology. Future-proof LSlot card design - USB, Thunderbolt, ProTools|HD, and DANTE connectivity available (connection methods vary by model).
Built-in microSD recorder - supports up to 32 channels of direct recording and playback Two high-end audio-grade headphone outputs with independent volume controls**
Fully compatible with Windows and macOS. Rugged rack-mount chassis. Designed and manufactured in Southern California, USA.
●Details◎The Importance of TransparencyFor a natural and pristine mix, signal coloration is merely an unnecessary element.Did you know that the breadth, clarity, and definition essential for a transparent mix can never be provided by converters that cannot avoid coloration and distortion?Lynx Studio Technology's proven transparent sound has led their converters to be used in top recording facilities and various audio applications around the world.
Loved by audio engineers and producers seeking pristine recordings and mixes, Lynx converters, without adding unnatural coloration, are used in Dolby's new audio research facility, Skywalker Sound, NRP, and the Smithsonian Institute. Aurora(n) takes this to the next level, with even greater precision than ever before, eliminating even the slightest hint of coloration or degradation of the signal.
Discrete Converter Design: Some manufacturers combine multiple converters onto a single chip. This has the advantage of allowing more converter channels to be accommodated in a single rack space, reducing cost, but inevitably compromising performance. Lynx designs each channel's analog signal path as a separate, shielded circuit - meaning each channel pair has its own dedicated converter. This design offers many audio advantages, including significantly reduced crosstalk and distortion while improving dynamic range and performance.
◎Hilo Converter Technology (HCT)
The Aurora(n) incorporates the design and technology gained through the development of Hilo, achieving the same incredible performance as Hilo, which is popular not only in professional audio but also in the high-fidelity audio field, while achieving superior specifications and transparency that far surpass those of its predecessor.
◎ Future-proof design ・Add channels - Expandable to a maximum of 32 channels by adding 8 channels at a time ・Add modules - Digital (AES3 + ADAT), mic preamp, and analog summing module options will be released in the future*
Supports a variety of connectivity options - Thunderbolt, DANTE, ProTools|HD, and USB via LSlot card. Firmware updates provide additional features and improvements, just like Hilo and Aurora.
◎SynchroLock 2
Newly designed high-performance sample clock technology, SynchroLock 2, provides an astounding 300,000:1 jitter reduction, 5-second lock time, and extremely high accuracy.
It has one word clock input and three outputs via BNC connectors, making it ideal as a master clock in small systems.
■Technical Specifications◆Analog Performance○Line input (after AD conversion)
THD+N (High Frequency Distortion): -113dB @ 1kHz, -1dBFS, 20kHz filter, +20dBu trim Dynamic Range: 119dB, A-weighted, -60dBFS signal method Frequency Response: ±0.010dB, 20-20kHz
Maximum crosstalk: -130dB @ 1kHz, -1dBFS Signal and common mode rejection: >80dB Full scale trim settings: +6dBV, 20dBu
○Line output (after DA conversion)
THD+N (High Frequency Distortion): -108dB @ 1kHz, -1dBFS, 20kHz filter, +20dBu trim Dynamic Range: 120dB, A-weighted, -60dBFS signal method Frequency Response: ±0.025dB, 20-20kHz
Maximum Crosstalk: -130dB @ 1kHz, -1dBFS signal Full-scale trim setting: +6dBV, 20dBu
Headphone output (after DA conversion)
THD+N (High Frequency Distortion): -107dB @ 1kHz, -1dBFS, 20kHz filter, volume max. Dynamic Range: 120dB, A-weighted, -60dBFS signal method. Frequency Response: ±0.025dB, 2020kHz.
Maximum Crosstalk: -120dB @ 1kHz, -1dBFS signal Maximum Output Level: 18.4dBu
** It is not possible to assign different sources to Phones 1 and Phones 2.
Digital input/output
AES3 + ADAT I/O (Scheduled for release in 2017)
Software
Lynx Mixer for Aurora(n) Thunderbolt models (Thunderbolt driver included)
○Other
*The following additional modules are scheduled for release in 2017: Digital I/O
・Microphone preamplifier ・Analog summing
Analog input terminal
Aurora(n) 8: DB25 x 1
Aurora(n) 16: DB25 x 2
Aurora(n) 24: DB25 x 3
Aurora(n) 32: DB25 x 4
Analog output terminal
Aurora(n) 8: DB25 x 1
Aurora(n) 16: DB25 x 2
Aurora(n) 24: DB25 x 3
Aurora(n) 32: DB25 x 4
○Size width: 19 inches (approximately 48.26 cm)
Height: 1.7 inches (approximately 4.32 cm)
Depth: 10 inches (approx. 25.4 cm)
○Weight
Aurora(n) 8: 7lbs (approx. 3.18kg)
Aurora(n) 16: 7.1lbs (approx. 3.22kg)
Aurora(n) 24: 7.2lbs (approx. 3.27kg)
Aurora(n) 32: 7.3lbs (approx. 3.31kg)
○LSlot connection option
Aurora(n) offers versatile connectivity options - its LSlot design allows you to change the connection method as needed.
*Please check the latest operating environment on the manufacturer's website before purchasing.
