Focusrite RedNet R1
Regular price
$1,210.00
Unit price
/
Unavailable
Shipping calculated at checkout.
Product Condition
| Brand New | Unused, as sold. |
|---|---|
| Mint | Like new, no flaws. |
| Excellent | Barely used, very minor wear. |
| Very Good | Light wear, fully functional. |
| Good | Visible wear, plays fine. |
| Fair | Heavy wear, still playable. |
Couldn't load pickup availability
Focusrite RedNet R1
Regular price
$1,210.00
Unit price
/
Unavailable
Description
Description
★Desktop remote controller that expands the Focusrite Red series
RedNet R1 is more than just a remote controller.
This is an expansion device developed to unleash the power of the RED series, represented by the Focusrite RED 8PRE.
In addition to controlling the input and output levels of the RED series, you can instantly switch the output format and destination of Protools HDX, other DAWs, the output of the RED series, and even I/O within the Dante audio network.
●Seamless switching of input sources Up to eight output formats, from mono to 7.1.4ch, can be saved, allowing you to switch from mono to surround and even 7.1.4ch monitor sets.
●Switching and control of output destinations Up to four types of output routing can be saved, from mono to 7.1.4ch. In addition to switching speakers, you can also control the output level within the routing as a whole and solo/mute each channel.
Remote control of RED series microphone inputs
You can adjust the RED series microphone input level, PAD, and switch the input format.
Built-in talkback function
The built-in microphone of the REDNET R1 or a microphone connected to the microphone input terminal of the main unit can be used as a talkback microphone. The talkback microphone output destination can be specified as up to four systems, including I/O connected to the Dante network.

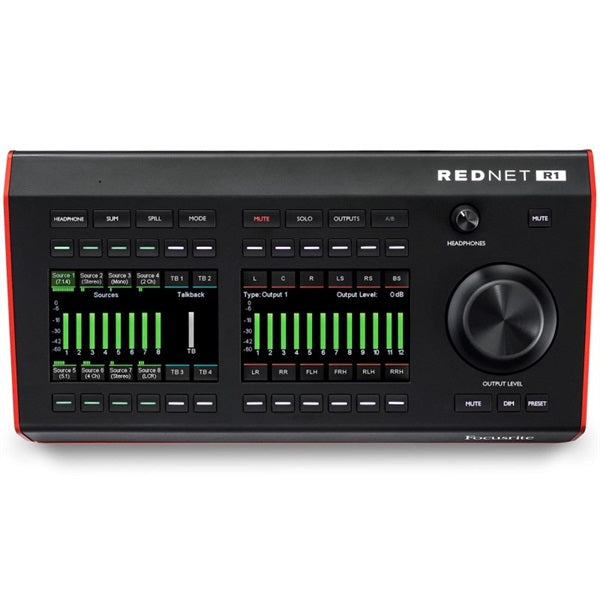

■Features◎Flexible monitor control Top panel controls include level, reference level preset selection, cut, dim, mute and various solo modes.
◎Speaker switching: An A/B switch allows you to switch between a variety of monitoring presets, and four foldable presets allow you to quickly switch between them to check your downmix.
◎Talkback function
RedNet R1 has a built-in talkback microphone, and you can also connect any talkback microphone to the rear panel XLR connector and route talkback to any I/O on the Dante network or any output on a RED Series interface.
◎Software/hardware control environment using RedNet Control
RedNet Control allows you to quickly configure complex monitoring and routing setups in software.
◎Foot switch input
1/4" jack socket can be used as a footswitch for talkback control and LFE mute
Power over Ethernet (PoE) compatible. Powered via Ethernet (using the PoE standard) or using a DC power source.
■Specifications●Internal Talkback:
Gain range: 0dB to 55dB
Type: Balanced, Zin = 3kΩ
Maximum input level: +10dBu ± 0.5dB
External Talkback Gain Range: 0dB to 55dB
Gain range: Balanced, Zin=3kΩ
Maximum input level: +10dBu ± 0.5dB
Frequency response: 20Hz-20kHz ± 2dB
・THD+N: -98dB (0.0012%) @ -1dBFS
・EIN: -128dBu 'A'-Weighted (typical)
Signal-to-Noise Ratio: -111dB 'A' weighted, minimum gain CMRR (Common Mode Rejection Ratio): 50/60Hz CMRR: -77dB
Headphone Output: All values measured at maximum output level (Rs = 600 Ω); 0 dBFS Reference Level: +11 dBm
Frequency response: 20Hz to 20kHz ±0.5dB
・THD+N: -100dB(0.001%)@-1dBFS, Rs=150R
Output impedance: 5Ω
Headphone Impedance: 32Ω - 600Ω
Digital Performance Supported Sample Rates: 44.1/48/88.2/96 kHz (-4%/-0.1%/+0.1%/+4.167%) at 24-bit Clock Source: Internal or from Dante network master

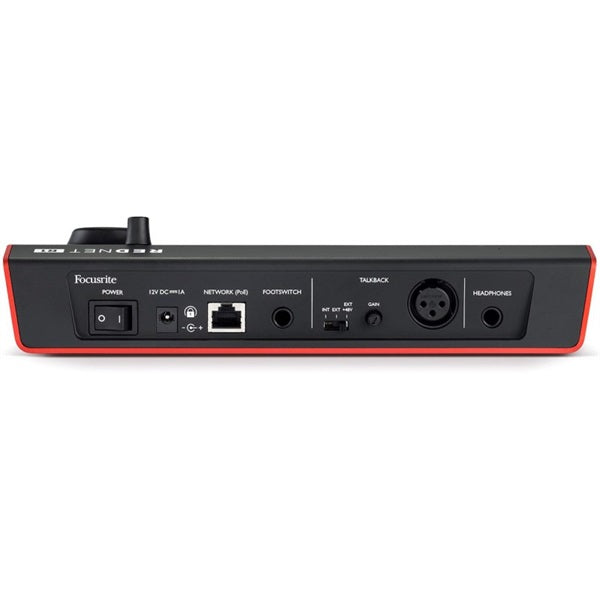

Rear panel connections, pots and switches
Inputs: External talkback microphone input: 1 XLR (F)
Footswitch: 1 stereo jack
Outputs: Headphone output: 1 stereo jack
Power Switch: 1 switch Talkback Gain Pot: 1 pot Talkback Switch: Tri-state switch (External Talkback +48V, External Talkback, Internal Talkback)
PSU & Network Connections PSU (PoE and DC): PoE input and DC 12V locking barrel input connector Network Connector: Standard RJ45
Power Supply: Power over Ethernet (PoE): Compliant with IEEE 802.3af Class 0 Power-over-Ethernet standard (compatible with PoE A or PoE B). DC Power: 12V 1.2A DC power supply. Power Consumption: PoE: 10.3W, DC: 9W
*Please check the latest operating environment on the manufacturer's website before purchasing.
RedNet R1 is more than just a remote controller.
This is an expansion device developed to unleash the power of the RED series, represented by the Focusrite RED 8PRE.
In addition to controlling the input and output levels of the RED series, you can instantly switch the output format and destination of Protools HDX, other DAWs, the output of the RED series, and even I/O within the Dante audio network.
●Seamless switching of input sources Up to eight output formats, from mono to 7.1.4ch, can be saved, allowing you to switch from mono to surround and even 7.1.4ch monitor sets.
●Switching and control of output destinations Up to four types of output routing can be saved, from mono to 7.1.4ch. In addition to switching speakers, you can also control the output level within the routing as a whole and solo/mute each channel.
Remote control of RED series microphone inputs
You can adjust the RED series microphone input level, PAD, and switch the input format.
Built-in talkback function
The built-in microphone of the REDNET R1 or a microphone connected to the microphone input terminal of the main unit can be used as a talkback microphone. The talkback microphone output destination can be specified as up to four systems, including I/O connected to the Dante network.
■Features◎Flexible monitor control Top panel controls include level, reference level preset selection, cut, dim, mute and various solo modes.
◎Speaker switching: An A/B switch allows you to switch between a variety of monitoring presets, and four foldable presets allow you to quickly switch between them to check your downmix.
◎Talkback function
RedNet R1 has a built-in talkback microphone, and you can also connect any talkback microphone to the rear panel XLR connector and route talkback to any I/O on the Dante network or any output on a RED Series interface.
◎Software/hardware control environment using RedNet Control
RedNet Control allows you to quickly configure complex monitoring and routing setups in software.
◎Foot switch input
1/4" jack socket can be used as a footswitch for talkback control and LFE mute
Power over Ethernet (PoE) compatible. Powered via Ethernet (using the PoE standard) or using a DC power source.
■Specifications●Internal Talkback:
Gain range: 0dB to 55dB
Type: Balanced, Zin = 3kΩ
Maximum input level: +10dBu ± 0.5dB
External Talkback Gain Range: 0dB to 55dB
Gain range: Balanced, Zin=3kΩ
Maximum input level: +10dBu ± 0.5dB
Frequency response: 20Hz-20kHz ± 2dB
・THD+N: -98dB (0.0012%) @ -1dBFS
・EIN: -128dBu 'A'-Weighted (typical)
Signal-to-Noise Ratio: -111dB 'A' weighted, minimum gain CMRR (Common Mode Rejection Ratio): 50/60Hz CMRR: -77dB
Headphone Output: All values measured at maximum output level (Rs = 600 Ω); 0 dBFS Reference Level: +11 dBm
Frequency response: 20Hz to 20kHz ±0.5dB
・THD+N: -100dB(0.001%)@-1dBFS, Rs=150R
Output impedance: 5Ω
Headphone Impedance: 32Ω - 600Ω
Digital Performance Supported Sample Rates: 44.1/48/88.2/96 kHz (-4%/-0.1%/+0.1%/+4.167%) at 24-bit Clock Source: Internal or from Dante network master
Rear panel connections, pots and switches
Inputs: External talkback microphone input: 1 XLR (F)
Footswitch: 1 stereo jack
Outputs: Headphone output: 1 stereo jack
Power Switch: 1 switch Talkback Gain Pot: 1 pot Talkback Switch: Tri-state switch (External Talkback +48V, External Talkback, Internal Talkback)
PSU & Network Connections PSU (PoE and DC): PoE input and DC 12V locking barrel input connector Network Connector: Standard RJ45
Power Supply: Power over Ethernet (PoE): Compliant with IEEE 802.3af Class 0 Power-over-Ethernet standard (compatible with PoE A or PoE B). DC Power: 12V 1.2A DC power supply. Power Consumption: PoE: 10.3W, DC: 9W
*Please check the latest operating environment on the manufacturer's website before purchasing.
