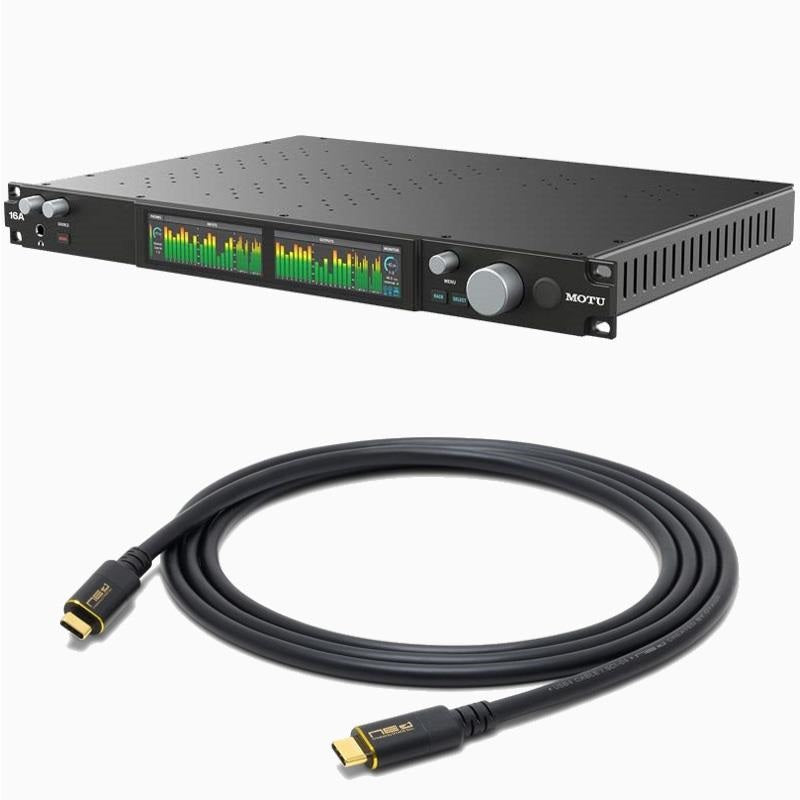

MOTU 16A Gen2 + Oyaide SCI-04 Set (Mots) (USB4) (Thunderbolt 4) (Audio Interface) (Oyaide) (Thunderbolt 3 Compatible USB4 Type-C to Type-C 1.2m)

MOTU's classic interface + Oyaide's high-quality USB4 cable set!

[Set contents]

・MOTU 16A Gen2(JAN:4580101341739)
・Oyaide SCI-04/1.2m(JAN:4582387110108)

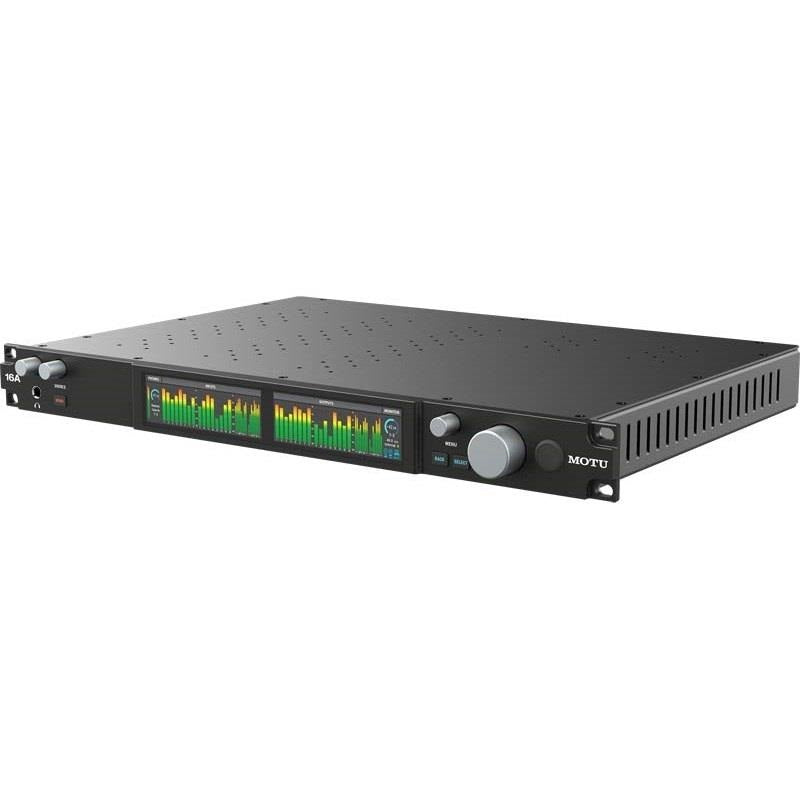

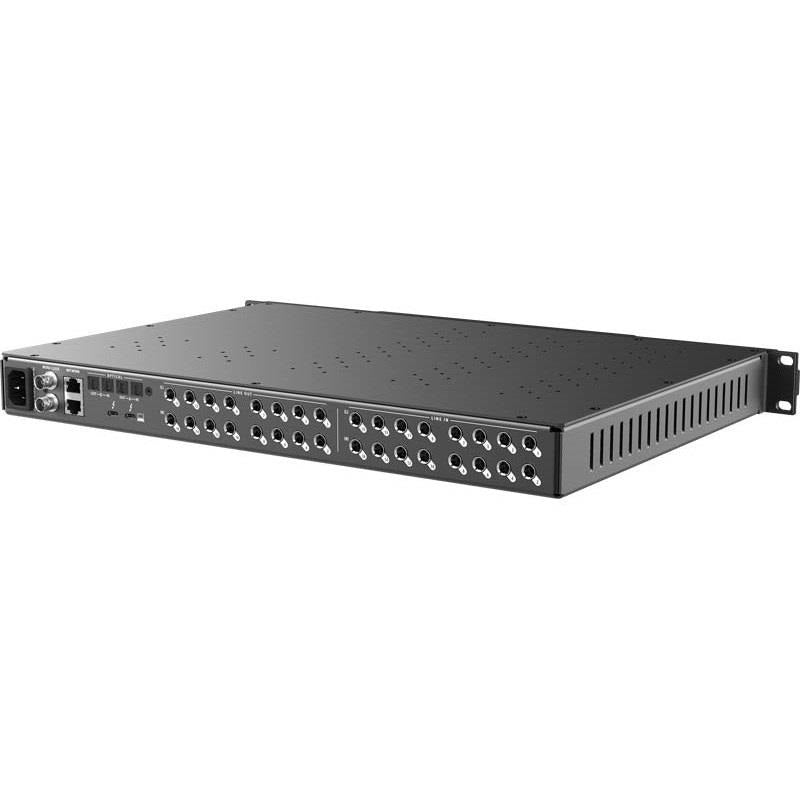

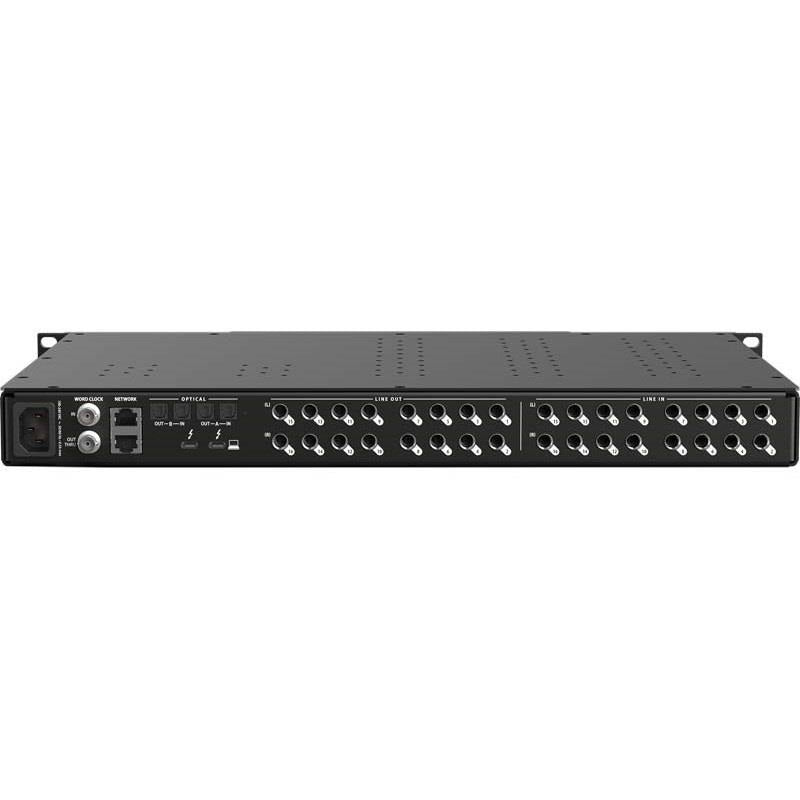

[MOTU 16A Gen2]

Analog 16 x 18 I/O, Optical x 2 I/O, Thunderbolt 4/USB 4/AVB connections,
ESS SABRE 32DAC Audio Interface, Digital Mixer, and Patch Bay


The second-generation 16A has been completely redesigned in terms of sound, functionality, and connectivity.


The renowned and highly acclaimed ESS Technology Sabre32 DAC delivers 125dB of dynamic range and extremely low THD. The 16A's analog performance is the best of MOTU's decades of engineering expertise in audio interface development.

Thunderbolt and USB connectivity compatible with Mac, PC, and iOS
The 16A is the first audio interface ever to offer cutting-edge Thunderbolt 4 and USB4 connectivity for Mac, PC, and iOS. When connected to a host device via the included 40 Gbps USB-C cable, the 16A delivers the fastest connection speeds possible—up to 40 Gbps—while remaining backward compatible with Thunderbolt 3, USB3, and USB2 connections. The Thunderbolt and USB4 connections provide an astounding 256 channels of computer I/O (128 inputs / 128 outputs) at sample rates up to 96 kHz.

◆Process 66 channels of audio simultaneously

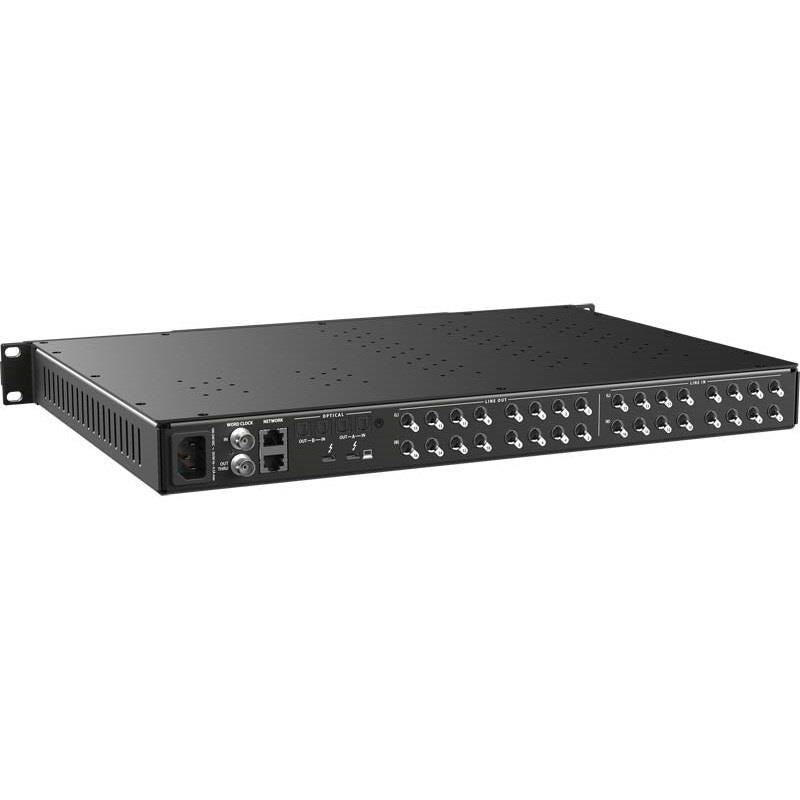

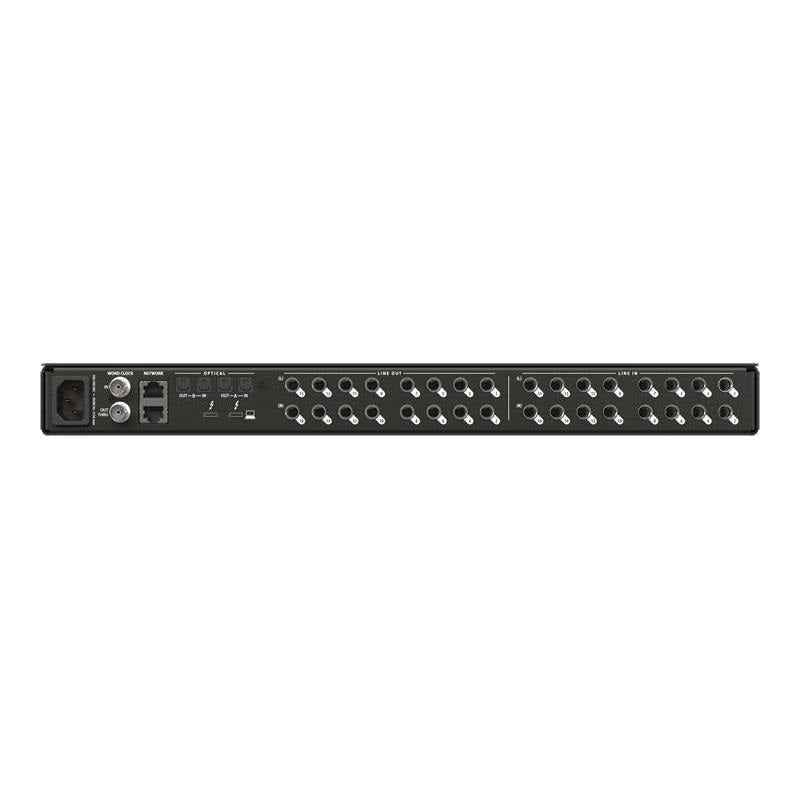

With 16 balanced/unbalanced TRS analog inputs and outputs, two 8-channel ADAT optical ports, and a separate stereo headphone output, for a total of 32 channels of input and 34 channels of output, the 16A can be used to expand your computer's analog I/O, or as a flexible and comprehensive patchbay and mixer—or both!

◆Ultra-low latency performance
Optimized for both Mac and PC, the 16A delivers the ultra-low latency that distinguished MOTU engineers are renowned for: an astonishing 1.8 ms round-trip latency over Thunderbolt/USB when using a high-performance DAW like Digital Performer at 96 kHz sample rate with a 32-sample host buffer.

◆ Easily achieve high-capacity bandwidth by simply connecting
The 16A can be daisy-chained with up to six Thunderbolt devices and connected to a host computer with massive 40Gbps bandwidth, allowing for hundreds of audio channels, 8K video, terabytes of hard drive storage, and more. A 2m Thunderbolt 4 compatible USB-C cable is included as standard.

◆64-channel mixing with 32-bit floating-point precision
The 16A features a built-in 64-channel mixer designed like a large mixing console. The 64 input channels can take signals from any location: the 16A interface's physical inputs, computer audio channels, audio network streams, or mixer outputs. The mixer features 26 aux buses, plus main, reverb, monitor, and solo buses. All input and output buses feature a 4-band parametric EQ and compressor. Additionally, input channels feature a high-pass filter and gate, providing a full range of mixing console functionality for a capable and transparent sound.

Patchbay Routing and Splitting: Easily route any source signal to any destination using intuitive virtual patch cords. Sources include your interface's analog or digital inputs, computer channels, mixer bus outputs, and audio streams from other devices on your network. Destinations include your interface's outputs, host software inputs, mixer inputs, and other devices (or computers) on your network. You can also split a single source (or stereo pair) to an unlimited number of destinations.

Flexible System Expansion: The audio networking era is pushing the boundaries of possibilities. The 16A features a built-in AVB switch with two Gigabit Ethernet ports, allowing multiple 16A units to be daisy-chained together using standard network cables. Connecting an additional AVB switch also extends the network, allowing for ultra-low latency networking with multiple interfaces and computers, even over long cable runs (hundreds of meters). Each 16A sends and receives 128 channels of audio signals to and from the network. The second-generation 16A also maintains compatibility with previous-generation MOTU AVB devices.


- The second generation 16A is AVB compatible with all other MOTU AVB interfaces (Milan compatible).
- 256 channels of host computer I/O (128 in / 128 out) via Thunderbolt or USB3/USB4 connections.
- 256 channels of network audio I/O (128 in / 128 out) with simultaneous processing of 16 8-channel streams.
- Each audio stream can be individually configured between 1 and 8 audio channels.
- Connect multiple PC hosts on the network, and each host can send and receive data to all devices and other hosts.
- Existing Ethernet cabling can be utilized. Devices can be connected simply by replacing the Ethernet switch with an AVB-compatible switch.
- Shared operation with standard Ethernet devices such as wireless routers and switches.
- 1722.1 support for connection management and operation.
- Supports AAF stream format and legacy AM8-24 format, configurable per stream.
- Gigabit Ethernet speeds support more devices on your network.

◆Control everything from your laptop, tablet, or smartphone
CueMix Pro is the complete dedicated application for controlling the 16A, including device settings, signal routing, and 64 channels of mixing and effects. Compatible with macOS, Windows, and iOS, CueMix Pro can run on multiple devices simultaneously, and you can access the 16A wirelessly over Wi-Fi. As a 1722.1 controller, you can also use CueMix Pro to access AVB-related settings on third-party equipment on the network.

◆CueMix Pro for iOS
Control all settings and mixing from your host PC or your iPhone or iPad running the CueMix Pro app*, even using multiple iOS devices simultaneously.
*CueMix Pro iOS app will be available soon on the Apple App Store.

Meter View: No optical I/O? Or no analog I/O? The 16A lets you customize the meter view that best suits your workflow: analog I/O only, digital I/O only, or any other combination.

◆Start creating music right away with the included DAW, virtual instruments, and loops
Connect the 16A to your Mac or PC and start creating music with the included PerformerLite production software.
In addition to production software, it also includes hundreds of loops, one-shots, and sounds from industry leaders Big Fish Audio, Lucidsamples, and Loopmasters (available for download after registration).


Next-generation 32 x 34 Thunderbolt 4/USB4 audio interface – the world's first Thunderbolt 4 audio interface, built on 30 years of experience as the industry's leading audio interface brand.

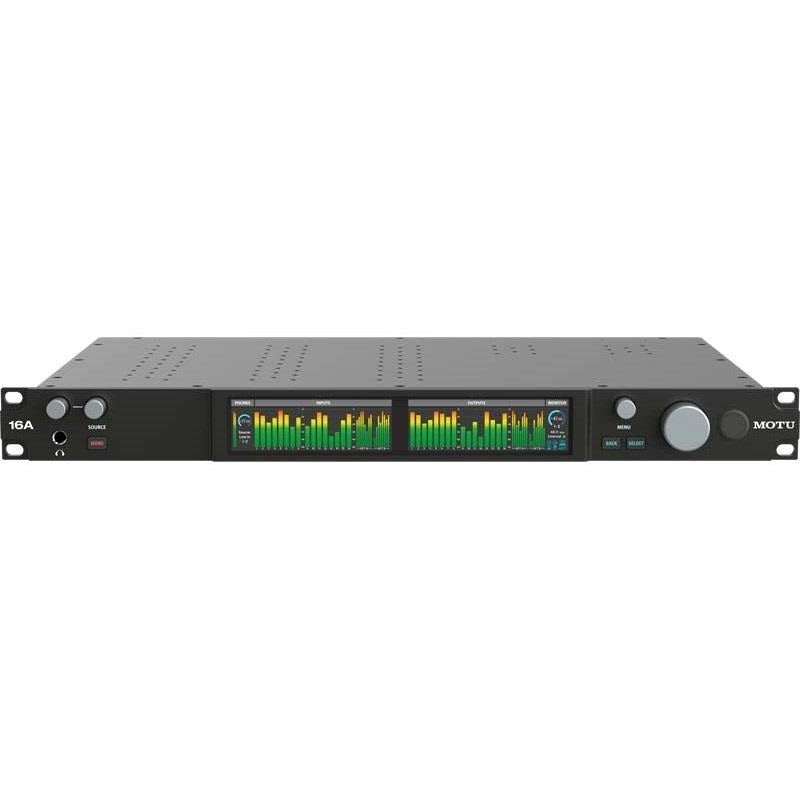

New 3.9-inch TFT Displays – Two 24-bit RGB LCDs provide 480 x 128 pixel high-resolution meters for all analog and digital I/O, plus detailed status information and access to hardware settings through simple, convenient menus.
Superior analog audio quality and high-end converters – the modern-sound-defining ESS Technology Sabre 32 DAC delivers 125dB of dynamic range and supports all standard sample rates up to 192 kHz.
●Ultra-low latency and proven, high-performance MOTU drivers - Achieve round-trip latency (RTL) as low as 1.8ms at 96kHz in high-performance DAW hosts.
Universal Thunderbolt/USB-C connectivity - Connect to any computer with the included 40Gbps Thunderbolt-enabled USB4 cable (compatible with USB3 and USB2). Use up to 256 audio channels (128 in, 128 out) depending on your host computer's connectivity. Class-compliant firmware and industry-standard drivers work with any audio application. Connect to iPad with a USB-C or Lightning adapter kit (sold separately). Use the second Thunderbolt port to connect computer peripherals, USB hubs, or Thunderbolt docks.
●Provides 66 simultaneous audio channels with 32 inputs and 34 outputs, including 16 TRS analog (line level) inputs and outputs, two 8-channel optical inputs and outputs, and a headphone output on the front of the unit.
●64-Channel Mixing with Effects - Powerful 32-bit floating-point DSP provides 64-channel mixing with 64 inputs and 32 buses, plus effects processing including reverb, 4-band EQ, high-pass filter, gate, and compression, at all sample rates up to 96 kHz.
Patchbay Routing and Splitting – Easily route any source signal to any destination using intuitive virtual patchcords. Split any source to multiple destinations.
AVB Networking – Two Gigabit network ports allow you to daisy-chain multiple units using standard network cables, or add an AVB switch to network multiple interfaces and computers over long cable runs (hundreds of meters) with ultra-low network latency. Stream hundreds of audio channels between devices and computers on the network. Compatible with previous-generation MOTU AVB devices.
●Wi-Fi Control - Control everything wirelessly over Wi-Fi from the CueMix Pro app running on a mobile device or other computer on the same network.
Precision Analog I/O Boost/Trim – Calibrate analog input and output signals in precise 1dB increments. Phase inversion can also be applied to individual analog inputs.
●Control Room Function - Control your session with the "Talk" button and "A/B/C" speaker select buttons, and quickly compare mixes on three sets of studio monitors.
Flexible Headphone Output – With independent volume control and front-panel source select knob, the headphone output can mirror any output pair, any CueMix bus, or any Thunderbolt/USB channel. It also includes a 16A input and built-in reverb, allowing you to create a completely customized mix.
Two banks of optical I/O – 16 channels of 44.1/48 kHz ADAT or 8 channels of 88.2/96 kHz S/MUX are available for connecting to outboard digital processors, mixers, etc. Bank A can also be switched to provide stereo TOSLink (Optical S/PDIF) I/O up to 96 kHz.
●Word Clock I/O/Thru - Supports all sample rates up to 192 kHz.
DC-coupled TRS output - The 16A output on the main unit can be used to control a voltage-controlled modular synthesizer from a host DAW, allowing you to create sequences and more.
●Loopback for live streaming and podcast production - Easily return computer output to your computer and mix it with the live input from the 16A in your host software for live streaming or podcast production.
Flexible front panel metering - Display only analog I/O, only digital I/O, or any combination you like, customizing the metering to best suit your workflow.
●CueMix Pro App - Control your mixes and settings from your Mac, PC, or iOS device. Note: iOS app coming soon.
●Performer Lite - Workstation software with over 100 instruments, dozens of effects, and 6GB of loops.


*Please refer to the manufacturer's page for the latest operating environment.

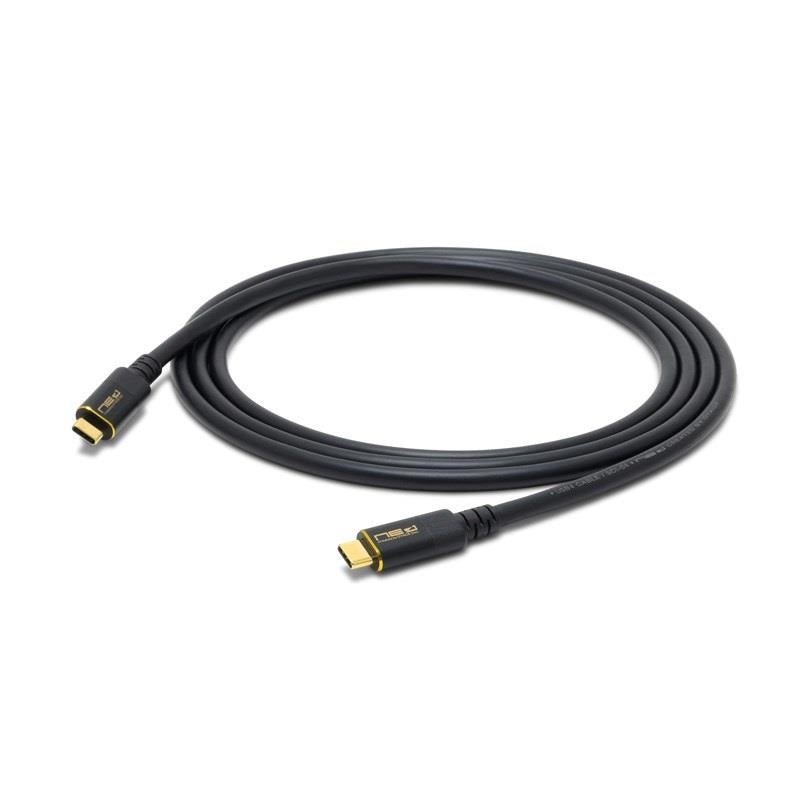

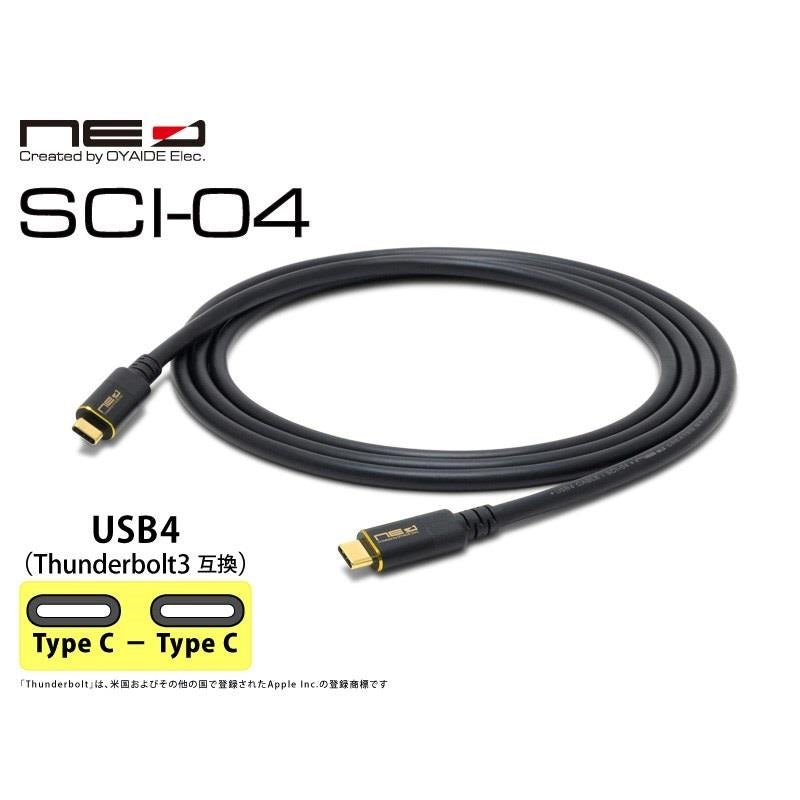

[Oyaide SCI-04/1.2m]

Thunderbolt 3 compatible USB 4 cable now available!

We have released the Thunderbolt 3 compatible USB 4 cable "SCI-04," which aims to be at the cutting edge of professional digital recording environments.
The versatility of USB4 means it can be used for a variety of purposes beyond music production.

With the recent trend toward faster communication speeds and greater compatibility with the USB standard, the number of devices using Thunderbolt connections and USB 2.0 or higher continues to increase in professional recording studios.
Furthermore, the shift to USB Type-C in music and video production environments is accelerating, and it is not uncommon to see users using docking stations or MacBook Pros as the core of their systems.
Based on the basic concepts of data transfer, we also applied analog approaches such as noise suppression and excellent electrical characteristics.
This has resulted in the USB4 cable "SCI-04" providing reliable noise protection and a high-quality cable design.
Oyaide Electric's DJ brand "d+" also sells a wide range of high-quality USB cables worldwide.
The reliability of d+ USB cables, which have shipped more than 300,000 units in total, is of course reflected in the high quality of the "SCI-04."
The new SCI-04 not only delivers reliable performance in professional environments, but also offers a wide range of applications, including DisplayPort Alt Mode for gaming and video production, and USB Power Delivery for fast charging of smartphones and laptops, allowing you to experience even more advanced performance.
Oyaide Electric has been listening carefully to user feedback, and this is the next-generation USB4 cable that they have finally released.

● The biggest feature of SCI-04: A high-quality USB4 cable that uses thick silver-plated high-purity copper wire, triple shielding, a high-quality Type-C connector, and a dedicated TPE sheath.
・USB4 is not only compatible with Thunderbolt 3, but also backward compatible with USB 2.0 to USB 3.2.
- Supports cascade connection between Thunderbolt 3 devices.
- Approximately 25% less conducted noise than standard USB4 cables, providing superior noise resistance and durability for reliable performance.
- The matte black cable color is accented with gold anodized for a more luxurious feel and improved visibility.
Supports transfer speeds of up to 40Gbps (0.7m). Improved noise resistance has enabled a maximum transfer distance of 2.5m. (Maximum 20Gbps for 1.2m/1.8m/2.5m.)
●It can also be used for purposes other than music production!
Supports DisplayPort Alt Mode. Ideal for video creators and gamers, this cable is also ideal for connecting monitors and displays. It also functions as a video output cable for smartphones that support DP Alt Mode, such as iPhones and iPads (Type-C connection).
Supports USB Power Delivery (up to 60W). Ideal for fast charging smartphones and tablet PCs, and also as a power cable for laptops such as the MacBook Pro.

Details of SCI-04: High-performance conductor and reinforced power line The conductor of the "SCI-04" is made of "thick-gauge silver-plated high-purity oxygen-free copper", which improves the conductor skin effect during high-speed communication and increases transmission efficiency.
In addition, the power lines have been reinforced to AWG21, improving the stability of bus-powered devices and software.

●Complete noise prevention The signal path uses an ultra-fine coaxial structure with triple shielding (tin-plated copper braided shield, aluminum Mylar tape, copper Mylar tape) to increase noise resistance, reducing conducted noise levels by approximately 25% compared to a typical USB4 cable (twisted pair).
As a result, interference caused by radiated noise is prevented, and stable transfer performance is ensured.

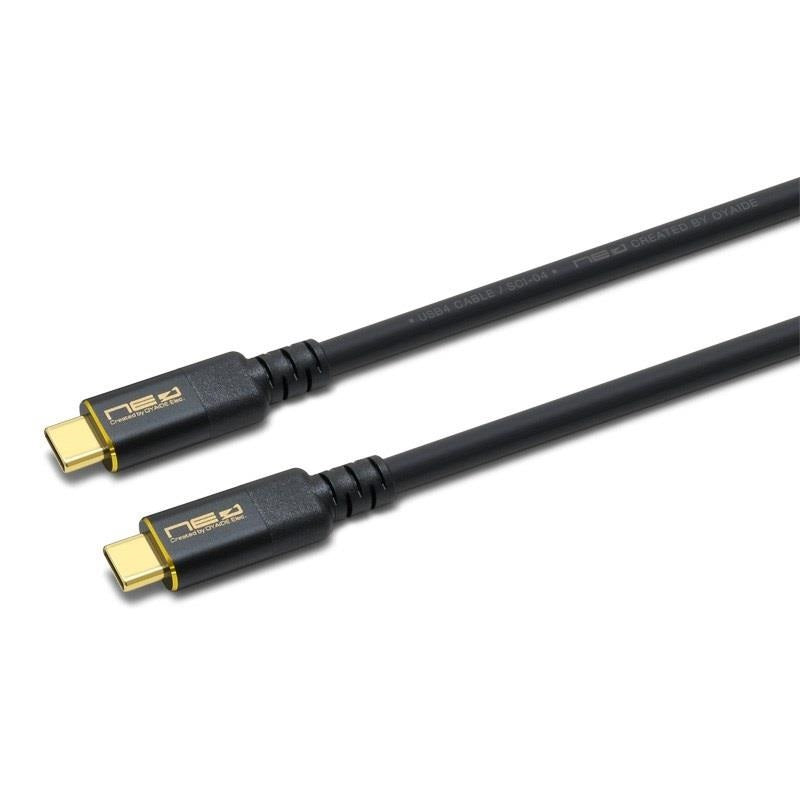

Excellent connector design
The USB Type-C connector uses a Corson alloy, which has excellent metallic spring properties and conductivity.
It is equipped with a highly reliable Type-C connector that has improved insertion/removal durability and transmission efficiency.
In addition, the combination of an aluminum cover printed with the Oyaide/NEO logo and PVC resin suppresses resonance frequencies and controls micro-vibrations to the terminals.
In addition, the inside of the connector is equipped with an aluminum cover and shell shield to provide 360-degree protection for the cable joint from noise, improving the shielding effect all the way to the end of the cable.
In digital transmission, the precision of the connector is important to suppress reflection noise.
The USB4 cable, which consists of a total of 15 cores, maintains impedance consistency by using a fully automated, state-of-the-art soldering process to reduce contact loss.

●The highly durable "SCI-04" uses a high-quality, dedicated TPE sheath material that is less likely to hydrolyze.
It offers high durability and flexibility, and delivers excellent performance even over long-term use.
While cable outer diameter and performance are proportional, with the SCI-04 we placed importance on balancing ease of handling with durability.
With professional use in mind, we carefully considered the balance of convenience, durability, and transmission performance, and have adopted a thicker cable outer diameter of 5.3 mm.

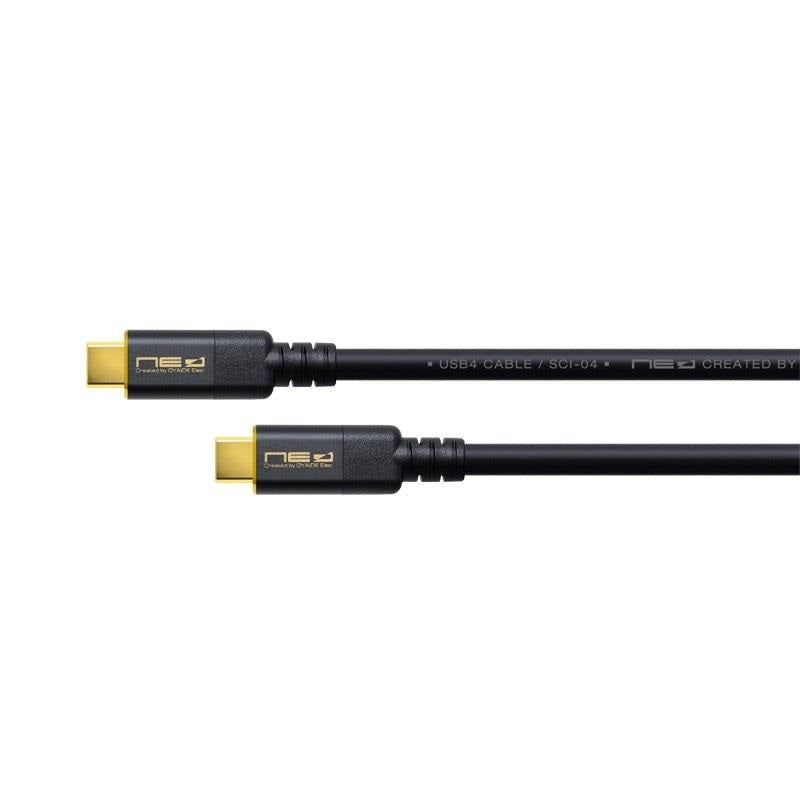

●Eye-catching color design The cable color is "matt black."
We take into consideration the increasing number of conceptual stages where restrictions are placed on the cable colors of equipment.
On the other hand, cable visibility is also important during setup and operation on stage, such as setting up and recovering.
Therefore, we added a visual accent of "gold anodized aluminum" to the connector cover, improving the sense of luxury and visibility.

●The most advanced USB4 standard
USB4 is compatible with any USB Type-C interface.
It is compatible with Thunderbolt 3, which has become the standard in professional recording environments, and of course supports cascade connections.
Furthermore, it is backward compatible with USB 2.0 to USB 3.2, so it can be used with any USB Type-C device.
It also supports display/monitor connections for video production/gaming using DisplayPort Alt Mode, video output for smartphones that support DP Alt Mode, such as iPhones and iPads (USB Type-C connection), and high-speed charging/power supply via USB Power Delivery (up to 60W), allowing you to upgrade a wide variety of USB Type-C environments.

●World-class quality control.Compact and highly convenient Type-C connector.
Because it is small and easy to carry, durability is essential.
The "SCI-04" is manufactured under strict quality control, and only those that pass rigorous testing are shipped.
In addition to tests under actual usage conditions such as insertion/removal durability, bending durability, and load durability, the cable undergoes a characteristic impedance test called a TDR (Time Domain Reflectometry) test, and in terms of environment, the cable is placed in high and low temperature environments with an altitude difference of 80°C or more for more than 48 hours to test its condition and electrical characteristics. In addition, the cable undergoes tests in humidity of 80% or more and ultraviolet light exposure. Only products that pass all of these tests are made into products.

●A wide range of cable lengths are available, ranging from 0.7m to 2.5m, for a total of four options.
The "SCI-04 0.7m" supports transfer speeds of up to 40Gbps, while the "1.2m", "1.8m", and "2.5m" models support transfer speeds of up to 20Gbps.
In addition, by improving noise resistance, we have succeeded in extending the transfer distance to 2.5m.
While maintaining high quality, it also allows for greater freedom in equipment placement.
