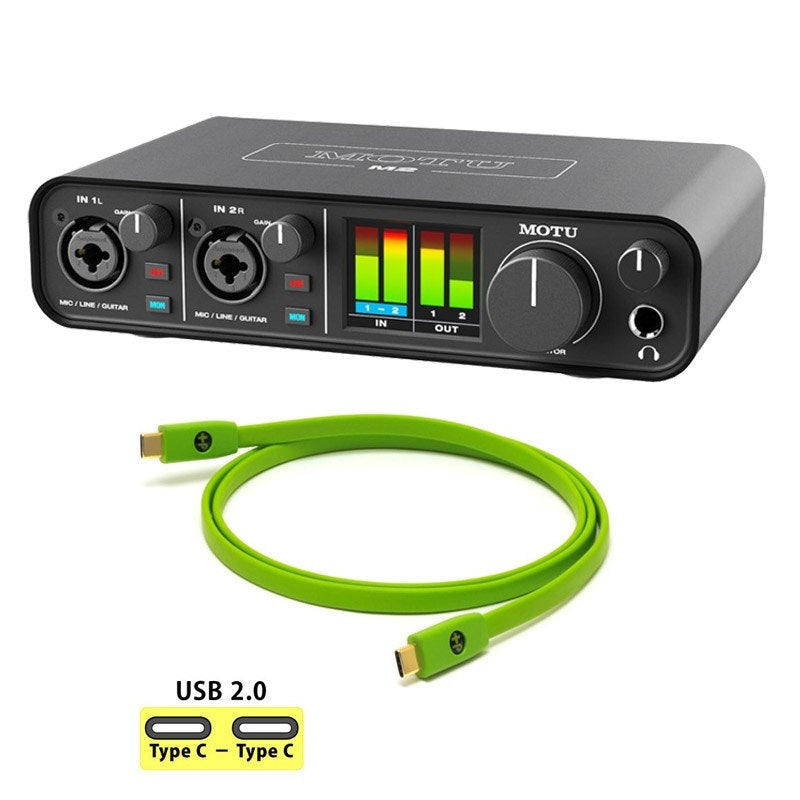

MOTU M2 + OYAIDE High-Quality USB Cable Set (Type C to C 1.0m)

★Staff Selection! A high-quality USB cable set that provides simple, great sound and stable bus power for home recording!

■Set contents: MOTU M2 (4580101341258)
・Oyaide d+USB Type-C to C classB/1.0(USB2.0) [1.0m] (4582387108990)

-----

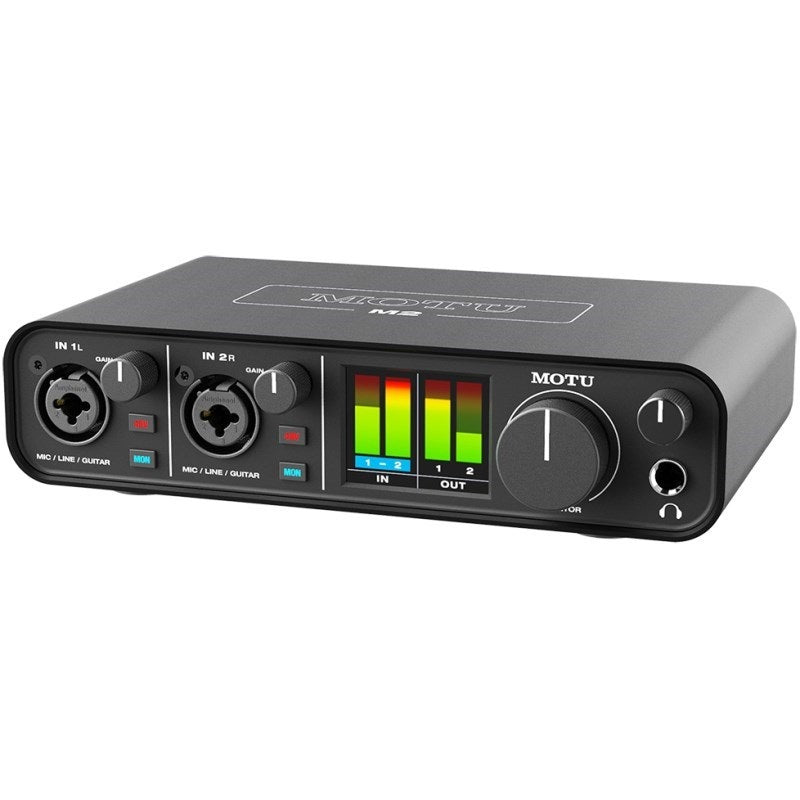

Equipped with an ESS SABRE 32DAC, this USB-C interface delivers best-in-class audio specs, the fastest latency, and superior visibility.

Best-in-class audio quality
MOTU M2 and M4 interfaces feature the same ESS Sabre32 Ultra DAC technology found in expensive audio interfaces and luxury purists, delivering an astounding 120 dB dynamic range at their main outputs. ESS converters also provide headphone outputs that rival those found in professional headphone amplifiers. The ultra-clean preamp circuitry delivers a measured EIN of -129 dBu at the microphone input, ensuring you capture and monitor audio with pristine clarity.

● Fastest latency speed in its class
With USB drivers designed by expert MOTU engineers, the M2/M4 offers class-leading, ultra-fast 2.5 ms round-trip latency (at 96 kHz/32 sample buffer) for monitoring live input (microphone, guitar, or keyboard) through your computer.

Best-in-Class Visibility: Nothing is more important in recording and mixing than setting optimal levels. The M2/M4 are the only audio interfaces in their class to feature a full-color LCD with clear, detailed level meters for every input and output. Enjoy professional-level volume control and feedback.

●Loopback for live streaming and distribution
The M2/M4 driver provides a loopback channel to your host computer, allowing you to stream your computer's audio, along with a live microphone or guitar input, as a mix to your favorite podcast platform, YouTube, or a live streaming app in real time. With the MOTU M2/M4, streaming and podcasting has never been easier or sounded better!

●Performer Lite (DAW bundled with M2/M4)
Performer Lite gives you everything you need to quickly and easily record, edit, mix, process, and master your music. Plug in your microphone, guitar, and MIDI keyboard and start tracking with over 100 virtual instruments, dozens of effects, guitar effects, and more.

Key Features: USB Type-C bus-powered audio interface; ESS Sabre32 Ultra DAC technology for superior analog sound; Main outputs with measured 120 dB dynamic range; Clean preamps with -129 dBu EIN; Headphone output with ESS technology; 2.5 ms round-trip latency (at 96 kHz/32 sample buffer)
- The only full-color LCD display for input and output in its class - Loopback support - Class-compliant drivers - Bundled with new DAW software, Performer Lite, featuring over 100 virtual instruments - Ableton Live 10 Lite license - 6GB loop and sample packs from Big Fish Audio, Lucidsamples, and Loopmasters

■M2 Technical Specifications
◎Sample rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz
Mic/line/guitar inputs:
・2 x XLR/TRS combo jack mic/line/Hi-Z guitar inputs
・Independent preamp gain, 48V phantom power and monitor switch for each input
Analog outputs:
・2 x 1/4 TRS line out (balanced, DC coupled)
・2 x RCA (unbalanced) analog out (mirrored)
・1 x 1/4 TRS stereo headphone

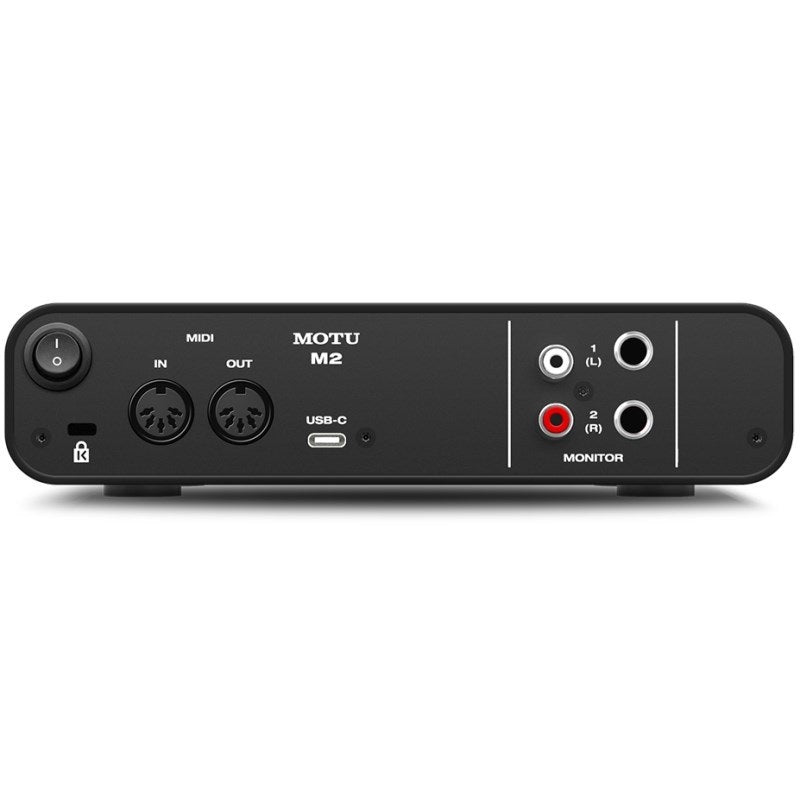

◎Computer I/O: 1 x USB-C (compatible with USB Type A) 2.0 audio class compliant
MIDI I/O:
・1 x MIDI IN
・1 x MIDI OUT
・16 MIDI channels to/from computer host
◎Headphone: 1 x 1/4 TRS stereo phone
◎Phantom power: 2 x individual +48V

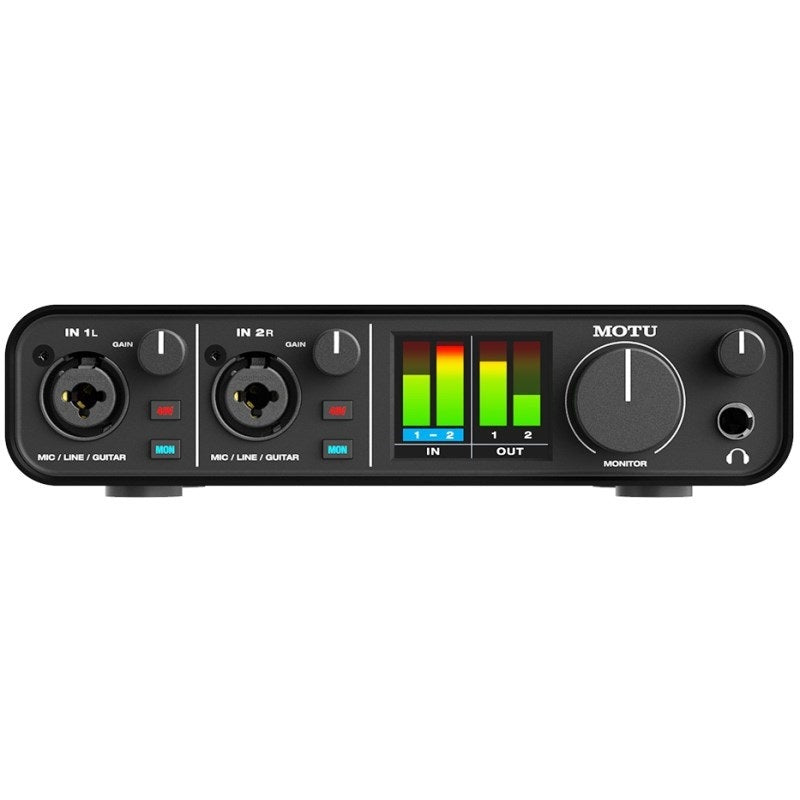

◎Front panel:
・1 x 1/4 TRS headphone output
2 x XLR/TRS combo inputs
・1 x potentiometer monitor vol
・1 x potentiometer phone vol
・2 x potentiometer mic/instr input gain
・4 x switches (2) 48V and (2) MON
・160 x 120 pixel full-colored LCD with input and output level meters
◎Power：Bus-powered through USB
◎Dimensions and weight:
(width x depth x height, enclosure only)
7.5 x 4.25 x 1.75 inches
・19.05 x 10.8 x 4.5 cm
1.35 lbs / 0.61 kg

*Please check the latest operating environment on the manufacturer's website before purchasing.

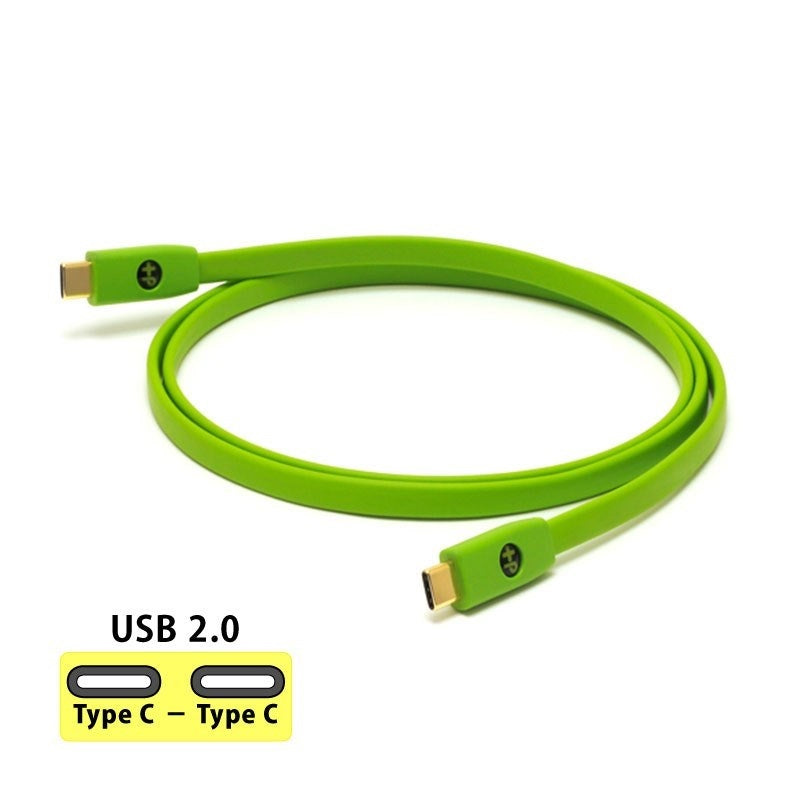

■ Oyaide d+USB Type-C to C classB/1.0

★Audio-grade, Type-C to C (USB 2.0) cable

No need for a USB adapter for either the PC or the interface.
The MacBook Pro, the standard in DJ, DTM, and streaming environments, is equipped with a USB Type-C connector. Many users have been forced to use a Type-C converter when using a d+ USB cable. Additionally, with the emergence of many audio interfaces using Type-C, there has been a demand for a simpler, direct USB Type-C connection without a converter. The introduction of the d+ USB Type-C to C Class B cable makes this possible. The stress of needing a USB adapter is no longer necessary. The d+ USB Type-C to C Class B cable provides a smart, high-quality Type-C connection for your system.

●The quality of the d+ sound remains the same
The Type-C connector is very compact. However, if the cable used is downsized unnecessarily, it will not satisfy many users. The d+ series Type-C is the largest size within USB regulations. Despite its slim design, it promises a wide range of sound. The flat cable and connector, which inherit the design that is instantly recognizable as d+, are a symbol of d+ quality that remains even with the change in connector.

●World-class quality control: The compact and convenient Type-C connector. Because it's small and portable, durability is essential. d+ USB Type-C to C Class B is produced under strict quality control, and only those that pass rigorous testing are shipped. In addition to tests under real-world conditions such as insertion/removal, bending, and load durability, the cable undergoes a characteristic impedance test called TDR (time domain reflectometry), and environmental tests such as placing the cable in high and low temperature environments with an elevation difference of 80°C or more for more than 48 hours to test the cable's condition and electrical characteristics. In addition, the cable undergoes tests under humidity levels of 80% or more and UV exposure. Only those that pass all these tests are shipped.

● Sound quality comparable to that of battery powered devices
When comparing the sound output when a PC is powered by an AC adapter to the sound output when it's running on the PC's battery, the sound output when the PC is powered directly from the battery without AC/DC switching is superior. Many modern PCs, including the MacBook Pro, use USB Type-C cables as power cables, and a d+USB Type-C to C class B cable also makes a difference when used as a power supply cable for these devices. There's no denying that power cables improve sound output, and the effectiveness of using a d+USB Type-C to C class B cable as a power cable for a PC is no exception.

■Product Specifications◎Cable: USB2.0 (HI-SPEED)
Conductor: High-purity silver-plated OFC
Conductor size: 23AWG/30AWG
◎Insulation: Polypropylene/Polyethylene ◎Shield: 90% Braided + Aluminum Mylar ◎Outer: PVC

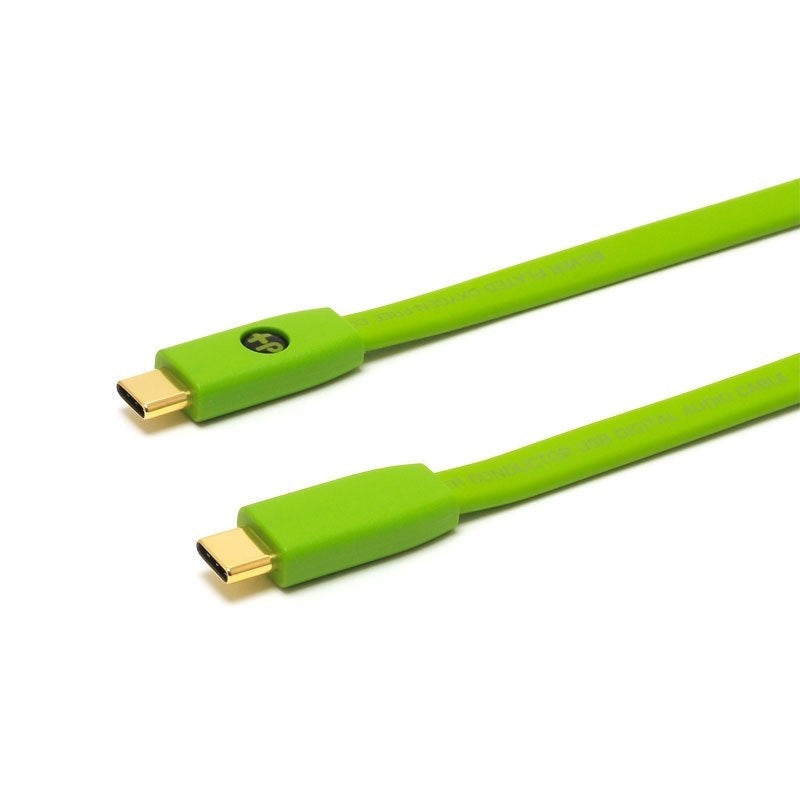

Connector: Type-C to C
Connector finish: 24K gold-plated coating Maximum speed: 480Mbps
