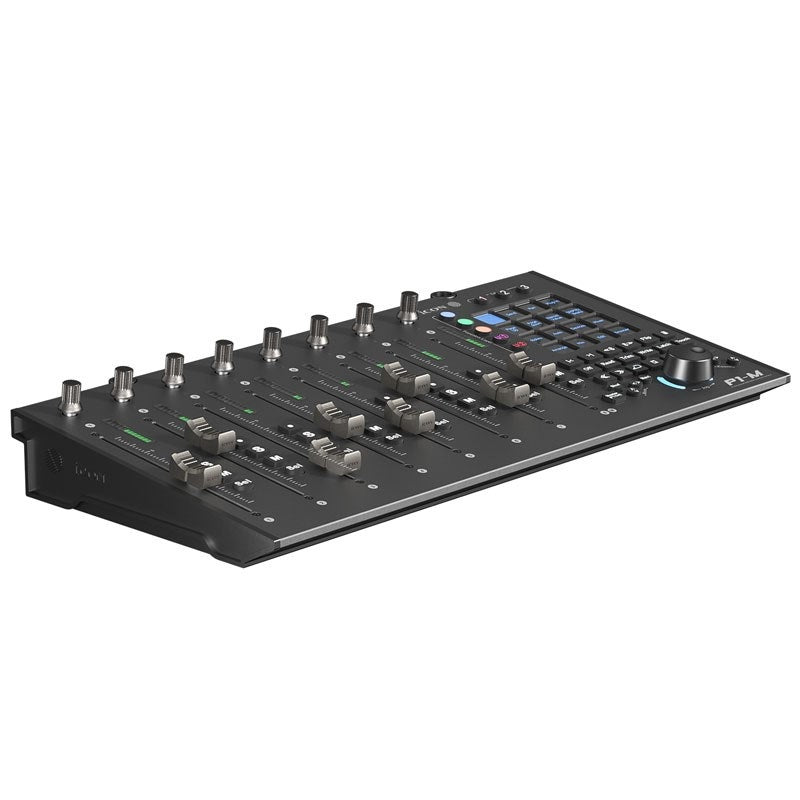

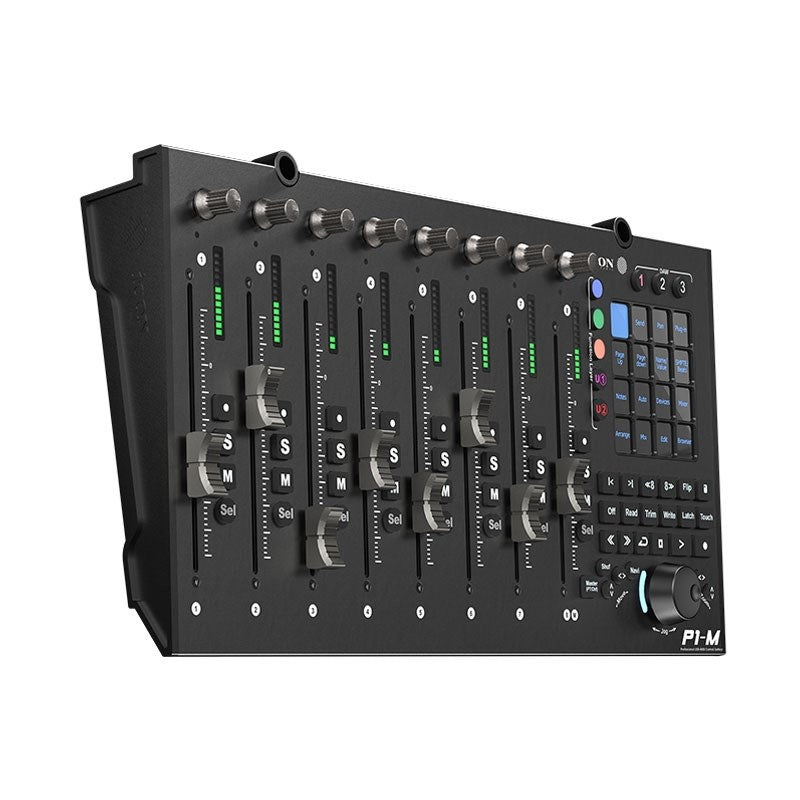

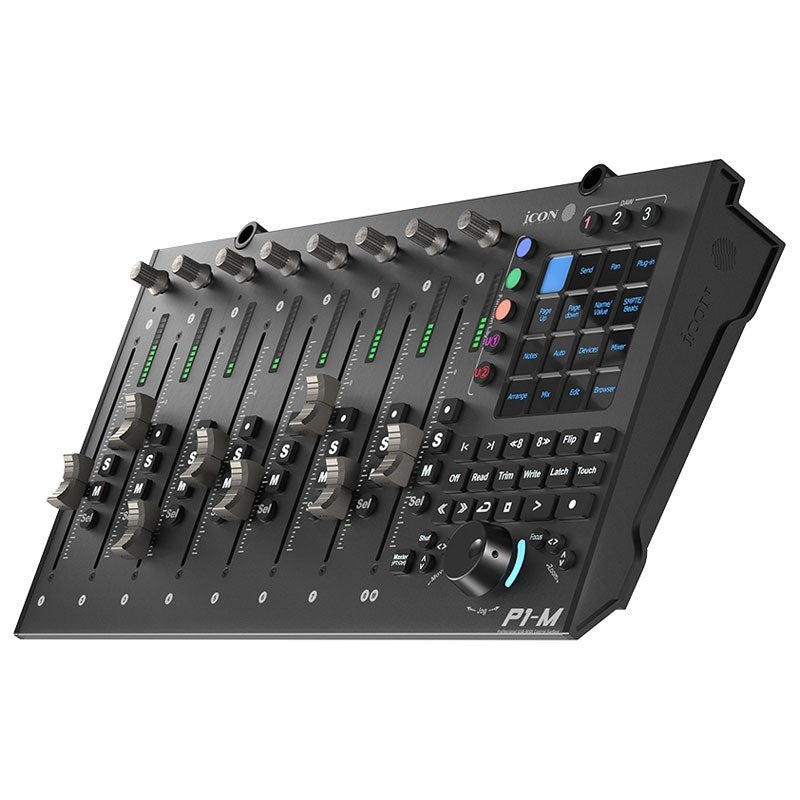

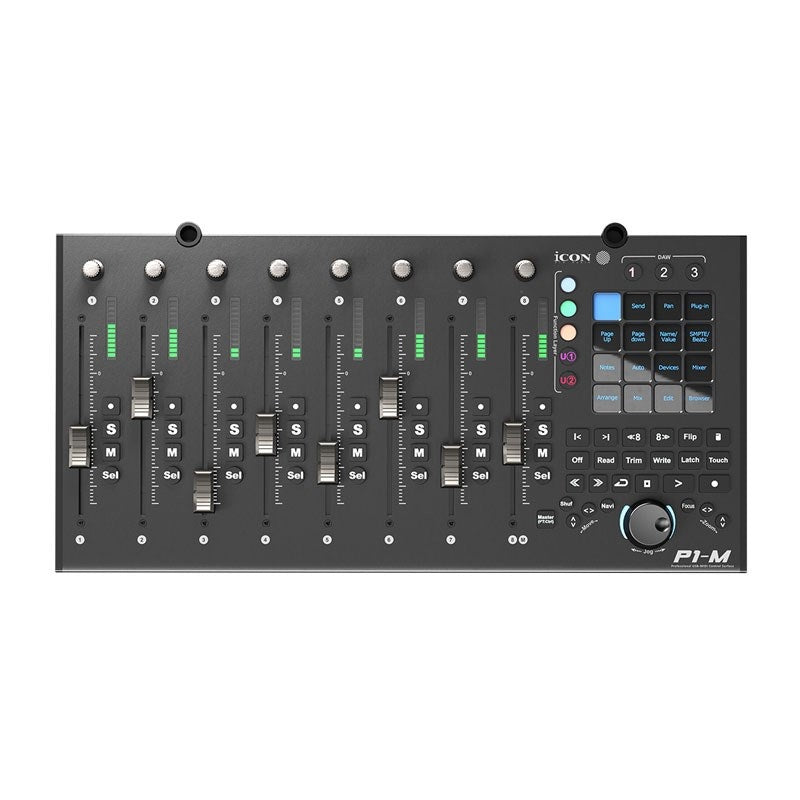

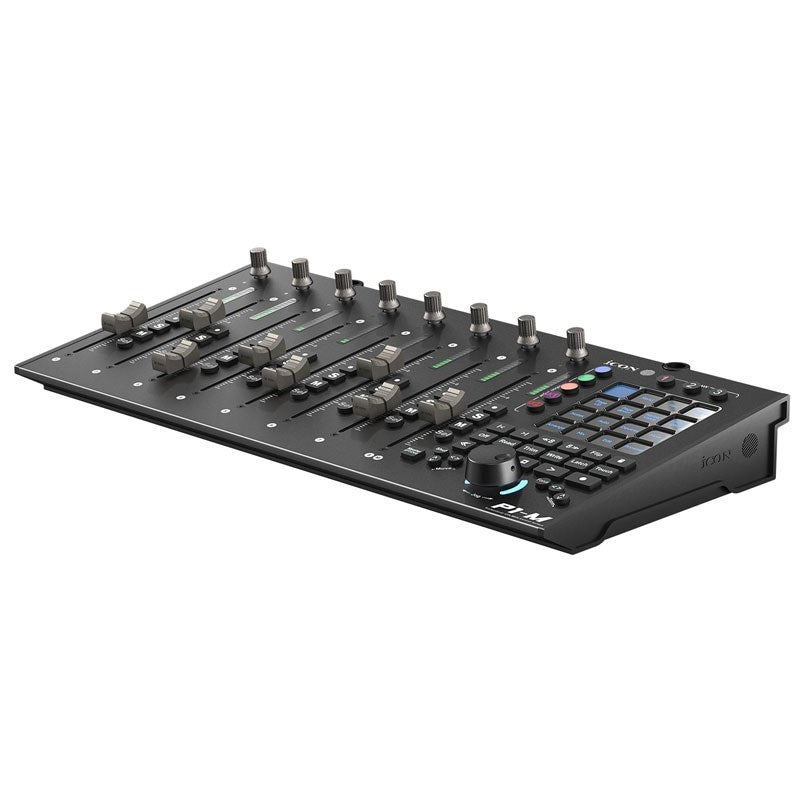

ICON P1-M (8-fader physical controller)

★ Enhance your DAW workflow

The P1-M is a DAW controller that accelerates your project production. With eight powerful motorized faders, you can streamline your workflow and enhance your creativity.

Customizable touchscreen

The P1-M features 16 (4x4) touchscreen displays with up to five configurable command layers to accommodate any workflow, giving you quick access to the controls you need at the touch of a button.
Expandable Channels

With eight motorized faders, the P1-M provides ample control on its own, but the optional P1-X (sold separately) can be expanded to up to 64 channels (maximum expansion capacity varies depending on your DAW), giving you complete control over your mix, no matter the size of your project.
Seamless DAW Integration

With the P1-M, you can connect, switch, and control up to three DAWs at once without interrupting your workflow, including popular DAWs such as Bitwig, Cubase/Nuendo, Logic Pro X, Ableton Live, Pro Tools, and LUNA.
Multiple DAW presets provided

The dedicated software iMAP provides multiple DAW presets.

Extended Display D4T
The D4T extended display (sold separately) consists of an OLED and a 2-segment LED display. The OLED shows important channel information such as track name, pan, and various control parameters for each channel, while the 2-segment LED display shows timecode or location in SMPTE or beat clock.

Main specifications

Eight 12-bit resolution, touch-sensitive 100 mm motorized faders

- 16-panel digital touch display that can be assigned any command (up to 80 types of display and operation can be performed by switching between five layer modes)

- The free downloadable iMAP app allows you to assign various DAW functions to the 16-panel touchscreen using drag-and-drop operations.

DAW select button allows you to instantly switch between three different DAWs. Accurate and clear LED meters. Eight smooth-action dual-function encoder knobs. Smooth-action jog wheel shuttle allows for fast search, scrubbing, and control.

Illuminated function buttons for Read, Write, Touch, Latch, Trim and Off that can be enabled/disabled based on the DAW requirements.

Illuminated buttons for channel controls such as mute, solo and record. Illuminated transport buttons for play, stop, record, rewind, fast forward and loop.

Flip and Master buttons for switching fader functions and accessing the Master channel (switches Channel 8 to Master channel)

- Illuminated zoom button with two directional keys (up/down and left/right)

- Illuminate the focus button and use the jog wheel to "focus" on plug-ins, EQ parameters, etc.

Two illuminated track buttons for individual channel selection Two illuminated bank buttons for shifting eight channels at a time Supports Mackie Control and HUI protocols for seamless integration with compatible music production software

・Ability, Ableton Live, Adobe Audition, Bitwig, Cakewalk, Cubase/Nuendo, Digital Performer 11, FL Studio, Logic Pro X, Harrison Mixbus 32C, Pro Tools, Reaper, Reason, Samplitude, Studio One, Tracktion, Universal Audio

・Luna support*

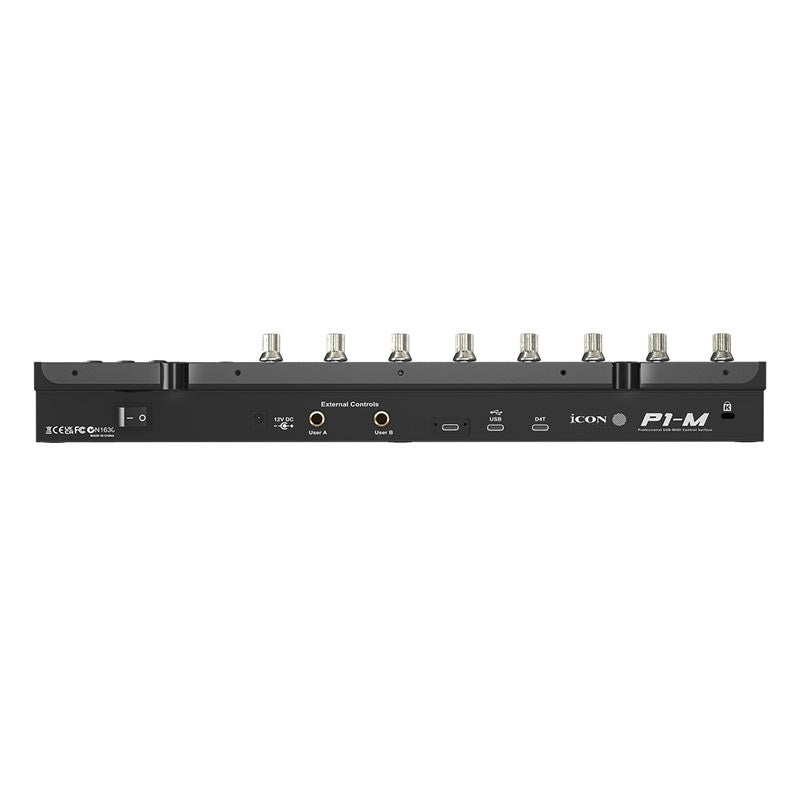

- High-speed connection via USB 3.0 (If using a USB hub, please use a powered one.)
Firmware upgradeable via included USB-C cable and iMap software Two freely configurable footswitch jacks (1/4-inch TS, limited DAW compatibility)
・Can be connected to the D4-T extension display (sold separately) ・Can be expanded with the P1-X extender unit (sold separately/8 channels per unit)
Robust metal casing with superior quality and Kensington lock port Power supply: 12 V DC
・External dimensions: 405(L) x 204(W) x 61(H) mm
・Weight: 1916 g
・Supported OS: MacOS 10.15 or later and Windows 10 or later (class compliant)

*Depending on the version of your DAW, not all parameters may be available.
*When connecting this unit to a PC or Mac, be sure to use the included USB cable.

Specifications are subject to change without notice.
