Antelope Audio Atlas i8 (Pair) [Pre-order Item]

*When ordering, it usually takes about 1-2 weeks to receive the product, but if the manufacturer is out of stock, it may take some time to deliver. Thank you for your understanding.

If you are in a hurry, please contact us in advance.
-----

■3-WAY ISOBARIC ACTIVE MONITOR

Antelope Audio's first studio monitor is designed to provide a cutting-edge, modern solution for any studio. The Atlas i8 delivers rich bass and high sound pressure levels thanks to its secret weapon: two 8-inch woofers in an isobaric design. The Atlas i8 is the result of decades of meticulous acoustic engineering and digital signal processing research and development to deliver sonic accuracy, pinpoint imaging, and a fatigue-free listening experience.

Two 8-inch woofers sealed in an isobaric configuration deliver exceptional power and detailed low-frequency response. This isobaric design allows for a significant reduction in cabinet size and air volume, without sacrificing performance.

To ensure a flat, time-aligned frequency response, a proprietary digital processing system was developed within the FPGA chip. Using FIR and IIR filters, it delivers a deeply focused stereo image, accurate transient response, and fatigue-free studio sessions. The Atlas i8 is calibrated during production and thoroughly tested to deliver optimal performance.

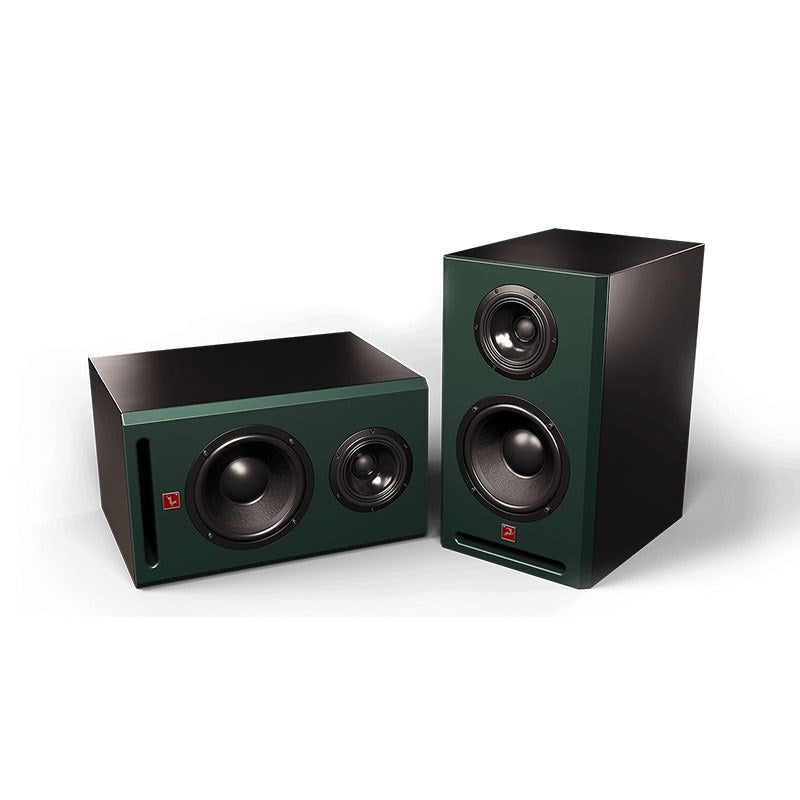

The tweeter and midrange drivers are coaxially positioned, acting as a single point source for improved phase consistency. This allows the Atlas i8 to be positioned horizontally or vertically without the risk of comb filtering or high-frequency dropout.

■ Digital precision
The Atlas i8 features the same 64-bit Acoustically Focused Clocking found in top-tier master clocks and interfaces. This proprietary clocking contributes to the quality of the internal AD/DA conversion, ensuring the same high-end professional standards used in many of the world's most prestigious studios.

■Top quality amplifier
Three custom-designed Class-D amplifiers specifically for the Atlas i8 deliver 200W to the 8-inch woofer, 100W to the midrange, and 100W to the high-frequency driver, delivering clean, high SPL with extremely low harmonic distortion and noise floor levels.

■Further improved workflow

- Setting on a color display

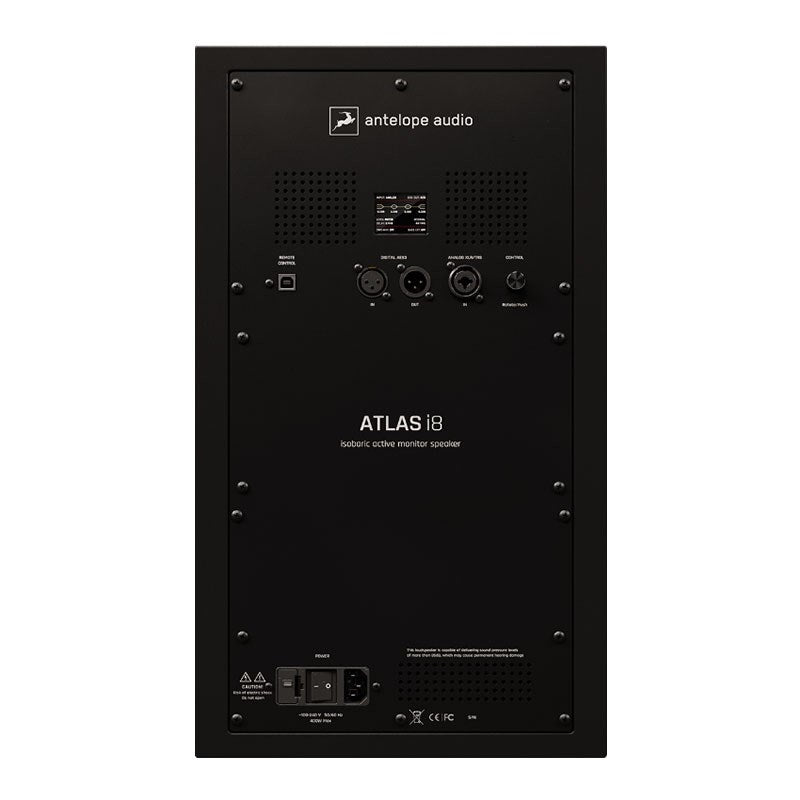

The color display, located alongside the rotary knob on the back of the Atlas i8, allows you to access key settings such as volume, routing, EQ, bass mode, and preset recall in just a few steps.

AES I/O and analog connections
In addition to standard analog connections, both XLR and TRS, it also features AES/EBU digital inputs and outputs, giving you a wider range of connectivity options, such as bypassing the interface's D/A conversion or easily daisy-chaining two monitors.

- Mountable: An optional mounting plate adapter (VESA 100x200mm) is available, allowing for simple and smart wall or ceiling placement for multi-speaker surround or Atmos™ setups.

・4-band EQ
Further improve room matching with the user-friendly 4-band equalizer via the color display and rotary knob. Reduce the low-frequency boost according to your room monitoring situation, or adjust the high-frequency range to avoid desktop reflections.

・DELAY OFFSET
The Atlas i8's delay offset function allows you to compensate for different distances between the sweet spots of two monitors to achieve the optimal stereo image.

■Specifications: Frequency range: 35 - 20,000 Hz
・Maximum SPL: 117dB at 1m
Amplifier wattage: 400W (low 200W + mid 100W + high 100W)
Input connectors: Analog XLR/TRS, Digital AES/EBU
Output connector: Digital AES/EBU

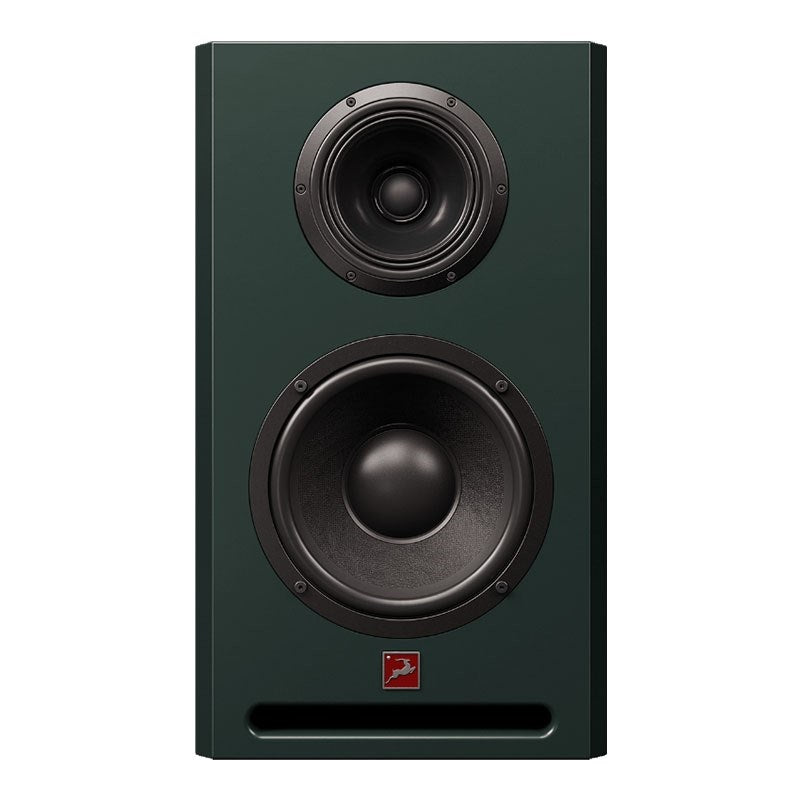

Driver Size: LF: 2x8" isobaric, MF: 5.5", HF: 1.5" coaxial Speaker Configuration: 3-way active or passive Active AD/DA Converter: 192kHz/24-bit Equalizer: Digital parametric
Enclosure type: Front port Monitor application: Near field/mid field Dimensions: W 292 mm, D 387 mm, H 500 mm
・Weight: 24 kg


*Please check the manufacturer's website for the latest operating environment information before purchasing.
