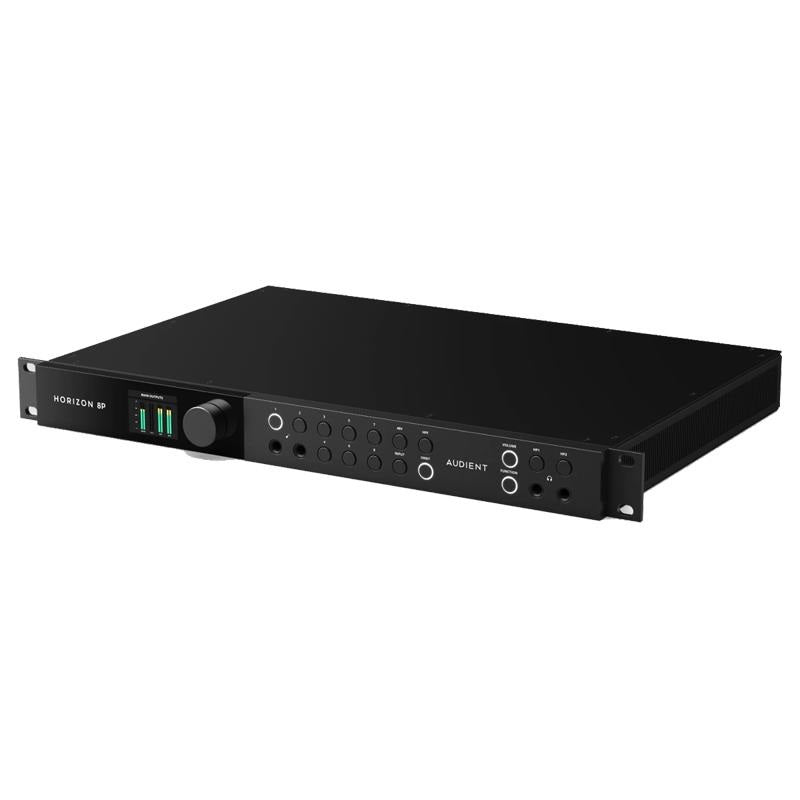

audient Horizon 8P (Audio Interface) (Thunderbolt 3)

24-input/32-output Thunderbolt 3 audio interface

The Horizon 8P is a 24-in/32-out Thunderbolt 3 audio interface centered around eight Audient console microphone preamps with ORBIT Control variable impedance functionality.
Combined with 32-bit conversion featuring a 133dB dynamic range and 0.99ms round-trip latency, the 8P condenses a complete, console-grade recording front-end into a single rack unit. This product is designed for producers and studios that want to capture performance with true analog texture and headroom.

*Measured at 192kHz/Buffer Size: 64 samples

◆Main Features

8 Audient console microphone preamplifiers
Variable impedance via ORBIT Control
24 inputs / 32 outputs
32-bit/192kHz compatible
133dB dynamic range
0.99ms round-trip latency (192kHz/64sample)
Horizon Control software allows you to daisy-chain up to four Horizon series consoles.

◆Reasons for choosing HORIZON 8P

The Horizon 8P packs a complete recording front-end setup into a single 1U rack. Inheriting the David Dearden-designed circuitry from the ASP8024-HE console, eight professional Audient console preamps deliver analog character and 75dB of clean, low-noise gain to any sound source. ORBITControl allows you to change the impedance of each preamp in hardware, shaping the tone of ribbon, dynamic, and condenser microphones at the input stage.

For mixing, you can directly connect outboard gear to the DB25's eight line inputs. With 32-bit conversion offering a 133dB dynamic range and 0.99ms round-trip latency, you can record and monitor through native plugins without any noticeable delay. Horizon Control provides one-click access to routing, monitoring, and four cue mixes.

◆From a DSP-centric production environment to a more flexible native environment

The Horizon 8P achieves a round-trip latency of 0.99ms when set to 192kHz/64 samples.

Recording vocals with compression and EQ applied. Playing with a sound processed through a guitar amp simulator. Layering software instruments and live performances with the same sense of timing. Even in these situations, it provides a response that minimizes the performer's awareness of delay.

This system allows you to build a recording system centered around your preferred DAW and native plugins, without being tied to a specific DAW and DSP environment. It enables you to create a low-latency recording environment without limiting your production tool choices.

◆Scalable system configuration with up to 4 units

The Horizon series allows you to daisy-chain up to four units on a single driver.
The entire system supports a maximum of 200x200 I/O. *When using 4 Horizon32 units.

From small private studios to production environments with multiple booths, the system can be assembled according to the number of inputs and outputs required.

● Technical specifications

• Microphone Preamps: Audient Console Microphone Preamps x 8
Input terminal: Combo jack Input gain: 0-75 dB
Phantom power: DC +48 V, 10 mA per channel
Pad: -10 dB
Variable high-pass filter: 20–250 Hz
ORBIT Variable Impedance Control: Low 220 Ω
ORBIT Variable Impedance Control: Medium 1,200 Ω
ORBIT Variable Impedance Control: High 2,800 Ω
Microphone preamplifier maximum input level: +18 dBu
Microphone preamplifier THD+N (at 0 dBu): -98 dB / 0.0011%
Microphone preamplifier EIN: -129 dB (A-weighted)
Microphone preamplifier frequency response: ±0.5 dB, 10 Hz to 80 kHz
Microphone preamplifier CMRR: 75 dB or higher

Analog performance
ADC maximum input level: +24 dBu = 0 dBFS
ADC THD+N (at -1 dBFS): -118 dB/0.00012%
ADC Dynamic Range: 127 dB (A-weighted)
ADC frequency response: ±0.2 dB, 10 Hz to Fs/2 (Nyquist frequency)
Maximum line output level: +24 dBu = 0 dBFS
Line output THD+N (at -1 dBFS): -122 dB / 0.00008%
Line output dynamic range: 132 dB (A-weighted)

Digital conversion
DAC: 32-bit
DAC Dynamic Range: 133 dB
Round-trip latency: 0.99 ms (buffer size 64 samples / 192 kHz)

Digital Input/Output: Optical Digital Input: 2 systems Optical Digital Output: 2 systems Supported Digital Formats: ADAT/S/PDIF
ADAT maximum number of input/output channels: 16 channels each for input and output.
S/PDIF input/output: 2 channels
Thunderbolt ports: 2; Word clock: BNC input/output, accuracy ±10 ppm, 75 Ω termination switchable; Supported sample rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz
S/PDIF at 192 kHz: Not supported
Number of ADAT channels at 48 kHz: 16 channels each for input and output.
Number of ADAT channels at 96 kHz: 8 input/8 output channels each
Number of ADAT channels at 192 kHz: 4 input/4 output channels

• Line input performance: Maximum input level: +28 dBu
THD+N (at +10 dBu): -98 dB/0.0011%
Gain: -10 to +65 dB
Input impedance: 10 kΩ

• Instrument Inputs: JFET instrument inputs x 2
Assigned channels: 1–2

• Instrument input performance: Maximum input level: +12 dBu
THD+N (at 0 dBu): -75 dB/0.018%
Frequency response: ±0.5 dB, 10 Hz to 40 kHz

• Maximum headphone output level: +15 dBu = 0 dBFS
THD+N (at -1 dBFS): -116 dB / 0.00015%
Dynamic range: 124 dB (A-weighted)
Frequency response: ±0.5 dB, 10 Hz to Fs/2 (Nyquist frequency)
Output impedance: 10 Ω
Maximum output power with a 30 Ω load: 5.55 V peak / 1.03 W
Maximum output power with a 60 Ω load: 6.44 V peak / 691 mW
Maximum output power with a 600 Ω load: 6.55 V peak / 71 mW

External dimensions and physical specifications: Rack size: 1U
External dimensions (height x width x depth): 44.5 x 483 x 330 mm
Mass: 4.4 kg
Minimum required rack depth: 400 mm (including cable connection space)
Front panel protrusion from rack mount position: 4 mm
Cooling method: natural air cooling


*Please refer to the manufacturer's website for the latest system requirements.
