AMS Neve | Product Code:
729410
Newly Added
AMS Neve 1073DPX
Regular price
$4,564.00
Unit price
/
Unavailable
Shipping calculated at checkout.
Product Condition
| Brand New | Unused, as sold. |
|---|---|
| Mint | Like new, no flaws. |
| Excellent | Barely used, very minor wear. |
| Very Good | Light wear, fully functional. |
| Good | Visible wear, plays fine. |
| Fair | Heavy wear, still playable. |
Couldn't load pickup availability
AMS Neve 1073DPX
Regular price
$4,564.00
Unit price
/
Unavailable
Description
Description
The first choice mic preamp for top producers and artists
Its quality is legendary: designed and manufactured in the UK, the modern 1073RDPX is built to exacting specifications, with matched components for unparalleled sound fidelity.
The 1073RDPX features two 1073R Class A design microphone preamps, each with a 3-band EQ (fixed HF and two switchable bands with cut/boost) and a high-pass filter. This adds warmth and depth to your recordings, brings out subtle ambience, maintains spatial positioning, and captures a more accurate image. Building on the functionality of the 1073R classic module, the 1073RDPX offers additional features such as a built-in DI input, phantom power, selectable insert function, level metering, selectable headphone monitoring, and front input connectors on each channel for easy and direct connection of microphones and instruments. The 19-inch rackmount 2U unit includes an external multi-voltage PSU.
The 1073RDPX can be fitted with an optional Digital I/O module, providing AES and FireWire digital connections at a variety of sample rates. Utilizing mastering-grade converters, the simplicity and convenience of digital connections make the 1073RDPX the ultimate front end for creating the best recordings.

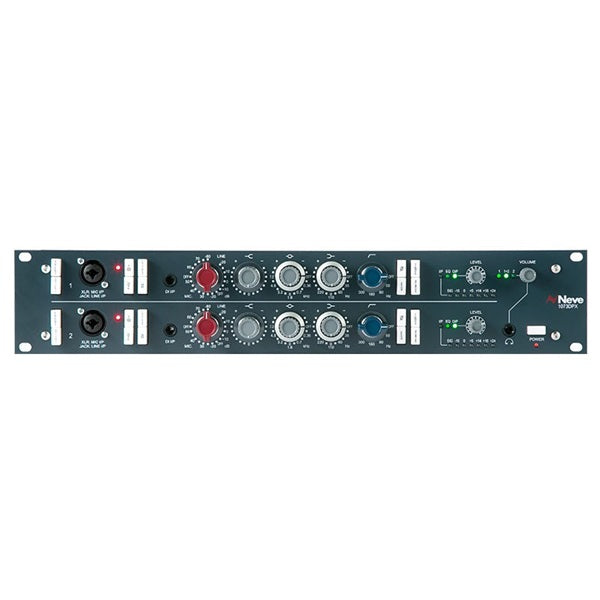

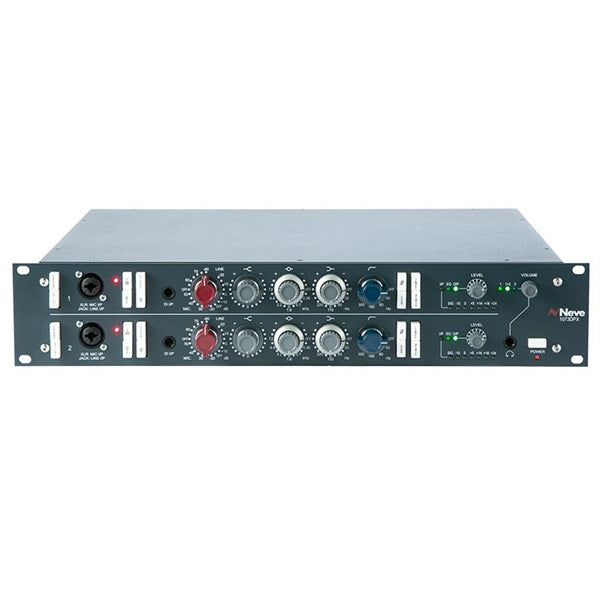

Product Features: Two independent, genuine 1073R transformer mic preamp/EQ circuits in a 2U 19" rackmount enclosure
- Dedicated NeveR Marinair TM transformers are used in each input and output stage.
Convenient connections for mic, line and DI inputs on the front of the unit, and a switchable mic/line input on the back of the unit
Switchable 48V phantom power, Hi/Lo impedance, -20dB pad, and DI ground lift on the input stage
- Phase switching, EQ in/out
- The insert send/return loop function allows you to easily connect external devices such as mono/stereo limiters/compressors to the 1073DPX audio chain.
Pre-EQ Insert Send/Return - Allows a line-level send from the mic preamp output stage, with a return occurring just before the EQ stage.
Post-EQ insert send/return - Line level send available from post-EQ stage with return just before the main output stage.
- Independent channel output level control
7-segment LED signal level meters per channel - display mic/line/DI input-stage level, EQ-stage level, and output-stage level up to +24dB
・External multi-voltage PSU
・Optional digital I/O module

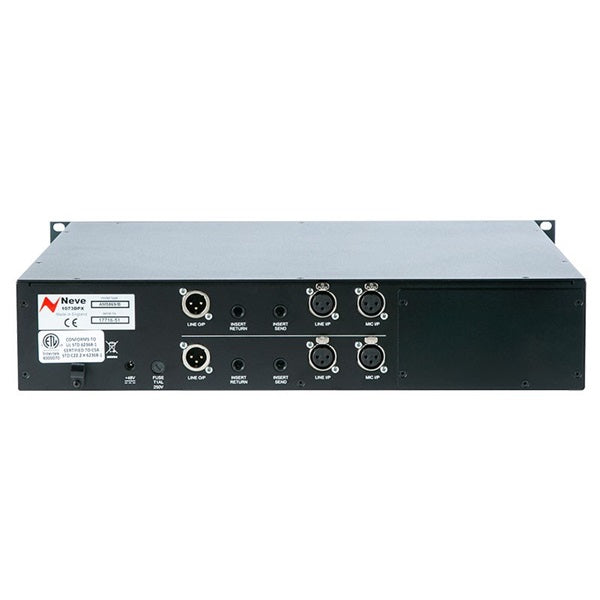

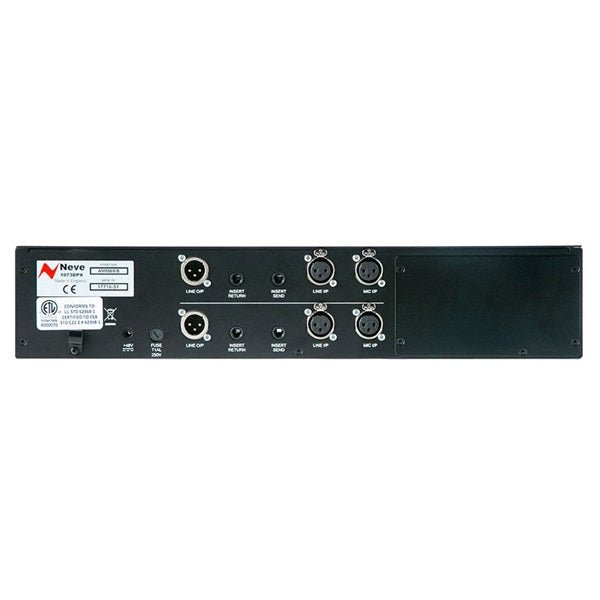

■Product Specifications Main Unit Connection Terminals: 2 XLR Mic Inputs
・2 Line Input
・INSERT SEND/RETURN
・2 Line Output
・Option Slot (for AD Converter)
DC Input
・2 XLR／Jack combo input(FRONT)
・DI Input (FRONT)
・Phone Jack
Size/Width: 480mm
Depth: 356mm
Height: 88mm (2U)
Weight: 10kg
*Please check the manufacturer's website for detailed product specifications.
Its quality is legendary: designed and manufactured in the UK, the modern 1073RDPX is built to exacting specifications, with matched components for unparalleled sound fidelity.
The 1073RDPX features two 1073R Class A design microphone preamps, each with a 3-band EQ (fixed HF and two switchable bands with cut/boost) and a high-pass filter. This adds warmth and depth to your recordings, brings out subtle ambience, maintains spatial positioning, and captures a more accurate image. Building on the functionality of the 1073R classic module, the 1073RDPX offers additional features such as a built-in DI input, phantom power, selectable insert function, level metering, selectable headphone monitoring, and front input connectors on each channel for easy and direct connection of microphones and instruments. The 19-inch rackmount 2U unit includes an external multi-voltage PSU.
The 1073RDPX can be fitted with an optional Digital I/O module, providing AES and FireWire digital connections at a variety of sample rates. Utilizing mastering-grade converters, the simplicity and convenience of digital connections make the 1073RDPX the ultimate front end for creating the best recordings.
Product Features: Two independent, genuine 1073R transformer mic preamp/EQ circuits in a 2U 19" rackmount enclosure
- Dedicated NeveR Marinair TM transformers are used in each input and output stage.
Convenient connections for mic, line and DI inputs on the front of the unit, and a switchable mic/line input on the back of the unit
Switchable 48V phantom power, Hi/Lo impedance, -20dB pad, and DI ground lift on the input stage
- Phase switching, EQ in/out
- The insert send/return loop function allows you to easily connect external devices such as mono/stereo limiters/compressors to the 1073DPX audio chain.
Pre-EQ Insert Send/Return - Allows a line-level send from the mic preamp output stage, with a return occurring just before the EQ stage.
Post-EQ insert send/return - Line level send available from post-EQ stage with return just before the main output stage.
- Independent channel output level control
7-segment LED signal level meters per channel - display mic/line/DI input-stage level, EQ-stage level, and output-stage level up to +24dB
・External multi-voltage PSU
・Optional digital I/O module
■Product Specifications Main Unit Connection Terminals: 2 XLR Mic Inputs
・2 Line Input
・INSERT SEND/RETURN
・2 Line Output
・Option Slot (for AD Converter)
DC Input
・2 XLR／Jack combo input(FRONT)
・DI Input (FRONT)
・Phone Jack
Size/Width: 480mm
Depth: 356mm
Height: 88mm (2U)
Weight: 10kg
*Please check the manufacturer's website for detailed product specifications.
