Oyaide [Semi-Annual Clearance Sale] OCB-1 ST II (2.0m)

★From parts to assembly, everything is made in Japan. A power strip that carries on tradition to the present.

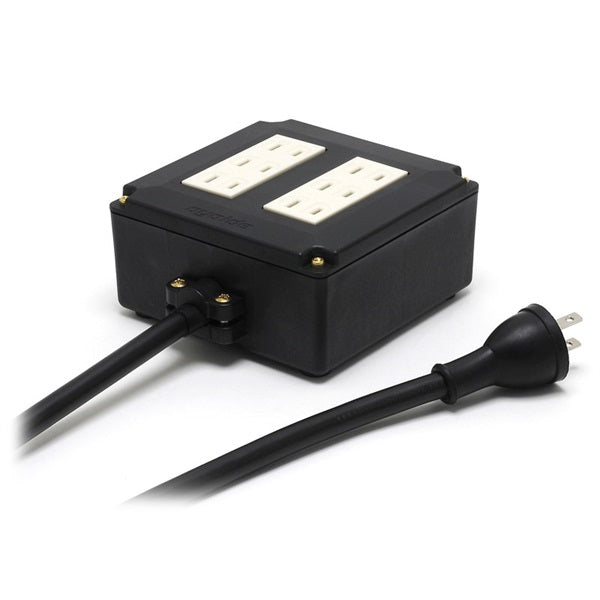

- An easy-to-use 6-outlet power strip for audio equipment.
- From parts to assembly, it is completely made in Japan for your peace of mind.
Although it is an entry-level model, it has a sufficient size of 4.0 sq.m., and although it is an affordable price, it provides more satisfaction than the price would suggest.
-This model is ideal for those who are just starting out in audio and home theater.

●Redesigned L/i50 cable
The L/i50 cable has a unique identity: a four-core star-quad. The new OCB-1 series is based on the new L/i50 II cable, which follows this universal identity.

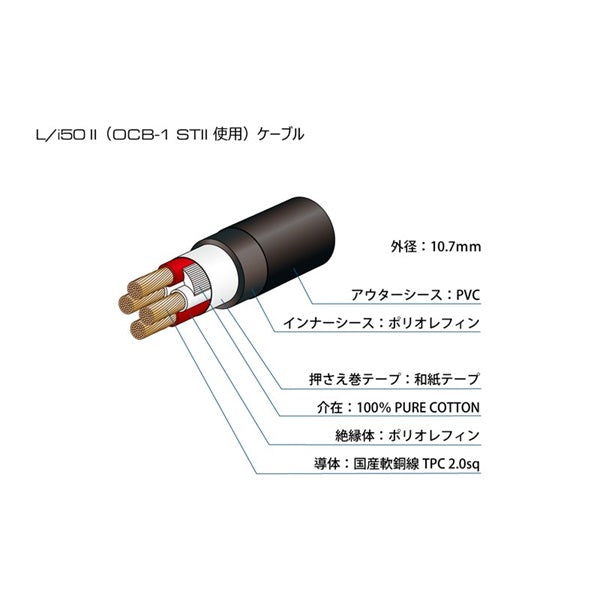

◎Common cable specifications for L/i50 II (OCB-1 STII) and L/i50 OFC II (OCB-1 DXsII, OCB-1 EXsII) ・Star-quad structure with four twisted core wires, the same structure as the L/i series since its release. By twisting two wires in each diagonal direction, radiated noise generated by the cable is cancelled out, reducing unwanted noise.
- Flame-resistant polyolefin is used for the insulator and sheath.
The PVC coating on the sheath not only helps block external noise, but also protects the cable from breakage due to unexpected accidents such as being stepped on. This cable satisfies the two important pillars of sound and safety.
- The conductor configuration remains the same as the previous model, 175 strands/0.12mm, achieving both easy cable handling and soft sound.
The large-capacity 4.0 sq. 4-core star-quad cable provides reliable power even when the six-port power supply (OCB-1 STII) is fully utilized.(*1) Its size is large enough to satisfy audiophiles and also serves as the core of a home theater.

*1) The total current draw of all connected devices should be within 15A.

L/i50 OFC II (OCB-1 DXsII, OCB-1 EXsII) Cable Specifications: While maintaining the basic four-core star-quad structure, this cable uses pure Japanese-made C1011 OFC conductors (domestic type 1 OFC). This specialized conductor ensures delicate musical expression.
- An earth wire has been added to support three-pole audio equipment with an earth.
- In addition to the elegant looks of the DXsII and EXsII, which are achieved by the exterior sleeves with independently colored accents, the vibration-damping effect of the exterior improves the S/N ratio, further enhancing the expressive power of music.

Oyaide Electric's original power plugs (OCB-1 DXsII, EXsII) showcase Japanese craftsmanship to this day.
・OCB-1 ST II: A Panasonic two-pole rubber plug that has remained unchanged since its release, offering excellent cost performance and the vibration-damping properties of rubber.
・OCB-1 DXs II: The standard model P-029 from Oyaide Electric's P/C series, which has shipped over 250,000 units in total, not only as individual items and finished products but also as audio parts that have been adopted by many OEMs both domestically and internationally, has been modified to a 2-pin specification that is easy to use at home.
・OCB-1 EXs II: This is the first product from Oyaide Electric's high-end ARMORED series of power plugs to feature the AP-037(*2) with phosphor bronze blades and silver-rhodium plating as a finished product (planned). It achieves an unprecedented sound field width and provides rich spatial expression. *2) A color edition exclusively for the non-IP OCB-1EXs II.

Oyaide Electric's outlets (OCB-1 DXsII, EXsII) prove the history and performance of the OCB-1.

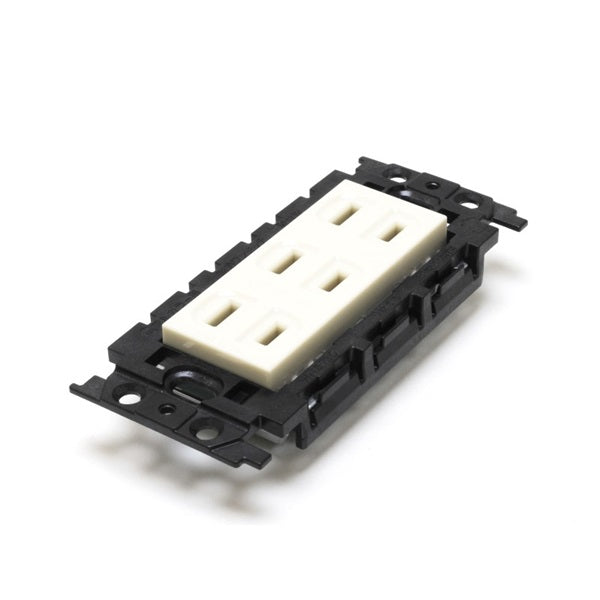

・OCB-1 STII: A Panasonic 6-port outlet that has remained unchanged since its release and offers excellent cost performance.
・OCB-1 DXsII: From Oyaide Electric's SWO series of outlets made entirely in Japan, which have shipped a total of 100,000 units, not only as individual items and finished products but also as audio parts, thanks to their wide range of OEM adoption both domestically and internationally. The flagship model SWO-DX/ULTIMO is made of phosphor bronze with silver rhodium plating and comes in a color (yellow) exclusive to the OCB-1 DXsII.
・OCB-1 EXsII: Oyaide Electric's flagship model outlet SWO-DX/ULTIMO, made of silver-rhodium plated phosphor bronze and featuring the exclusive color (blue) of the OCB-1 EXsII.

High-rigidity outlet box made of PBT-GF30 material (common to all OCB-1 series)
The Oyaide Outlet Box is the heart of the sound. The enclosure is made of PBT-GF30, a highly rigid engineering plastic made from polybutylene terephthalate (TPA) with 30% GF (glass fiber) added. PBT resin is a polyester resin obtained by polycondensation of terephthalic acid (TPA) and 1,4-butanediol (1,4-BG). It is a crystalline engineering plastic with excellent moldability, electrical properties, flame retardancy, chemical resistance, heat aging resistance, weather resistance, and colorability. The addition of glass fiber (GF) reinforces this material, resulting in tensile strength and Charpy impact strength more than double that of conventional materials, and a DTUL (Deflection Temperature Under Load) of 200°C, more than three times that of non-PBT materials (50-85°C). This high rigidity suppresses unwanted noise from the outlet box, which can cause sound distortion and blurring. The monocoque construction secures the outlet with four posts extending from the base, transmitting vibrations directly to the chassis base. The body is 4mm thick, more than 1.4 times thicker than general-purpose PVC products (2.8mm thick). Furthermore, carbon fiber is added to the material to minimize interference between peripheral devices, and 13mm diameter feet are attached to the base to reduce the contact area between the body and the floor, minimizing resonance. These combined elements of material and structure achieve the reduced distortion and high S/N ratio that are characteristic of the OCB-1 series.

■OCB-1 ST II Specifications◎Cable (length): L/i50 II (2.0m)
◎Conductor: Domestic annealed copper wire ◎Conductor size: 2.0 sq x 4 cores ◎Insulator: Flame-retardant polyolefin ◎Insertion: Staple yarn + paper ◎Outer sheath: Flame-retardant polyolefin ◎Outermost sheath: Clear PVC
◎Outlet box: PBT GF30 housing ◎Internal wiring: OFC 2.0mm solid wire ◎Power plug: Panasonic WH4007
◎Outlet: Panasonic WN-15034K
◎Specifications: 125V/15A ＜PS＞E certified product
