SONY C-100 [Hi-Res Condenser Microphone] (Special order item, delivery time will be announced separately)

*Depending on the manufacturer's inventory, it may take several weeks for this product to arrive.

This high-resolution, variable-directional condenser microphone features a 2-way microphone capsule configuration for high and low frequencies, delivering both expansive high frequencies and rich mid- and low-frequency ranges.

Features: A high-resolution side-address condenser microphone with a newly developed two-way capsule configuration that delivers both expansive high frequencies and rich mid- and low-frequency ranges.
Capable of recording wideband sound from 20-50kHz.
Supports switching between unidirectional, omnidirectional, and bidirectional.

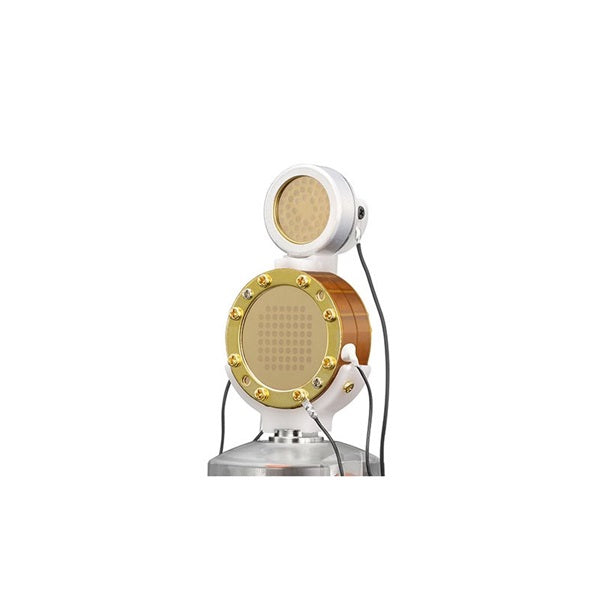

The newly developed high-frequency microphone capsule achieves highly reproducible sound pickup up to 50kHz thanks to a thinner, lighter diaphragm and reduced acoustic impedance of the back electrode plate. The newly developed low-frequency microphone capsule achieves high sensitivity by reducing the acoustic impedance of the back plate, resulting in powerful, rich recording. Furthermore, both the high-frequency and low-frequency microphone capsules use high-strength, highly insulating polyetherimide (PEI) as the insulating structural material, processed with high-precision resin cutting. The capsule case and back electrode are made of brass, machined with high precision. High-precision assembly ensures high-precision sound pickup with minimal distortion. Furthermore, the diaphragm is vapor-deposited with 24K gold, resulting in highly pure sound quality.

The microphone case and chassis are made of high-density zinc die-cast to ensure vibration isolation and damping. The microphone sleeve is made of machined aluminum, and the sleeve bottom is made of machined brass. This dissimilar metal construction eliminates unwanted resonance and ensures clear sound.

●Made in Japan with a commitment to quality products: Professional audio products, such as the C-38B and C-800G condenser microphones and the MDR-CD900ST monitor headphones, are used in numerous recording studios. These products are manufactured by Sony Taiyo, a Japanese factory that has been producing these products for many years. Each product is carefully assembled by hand by skilled workers under strict quality control standards cultivated through the production of professional products.

Common features of the C-100/ECM-100U/ECM-100N: ・A Sony first to use a thick copper foil board with a copper foil thickness of 70μm. This achieves rich, dense low-midrange and high-resolution high-range sounds. ・Film capacitors are used for all signal lines, achieving clear, transparent sound quality. ・High-precision metal film resistors are used for all signal line resistance, achieving powerful, highly accurate sound quality. ・Compact, high-capacity hybrid aluminum electrolytic capacitors are used for the power supply lines, enhancing power supply smoothness and achieving powerful, accurate sound pickup. ・The output terminals use XLR-3-12C type terminals with gold-plated contacts, ensuring high reliability. ・Low-cut filter included. ・Pad switch function.

■Specifications ◎Type: 2-way microphone (condenser type + electret condenser type)

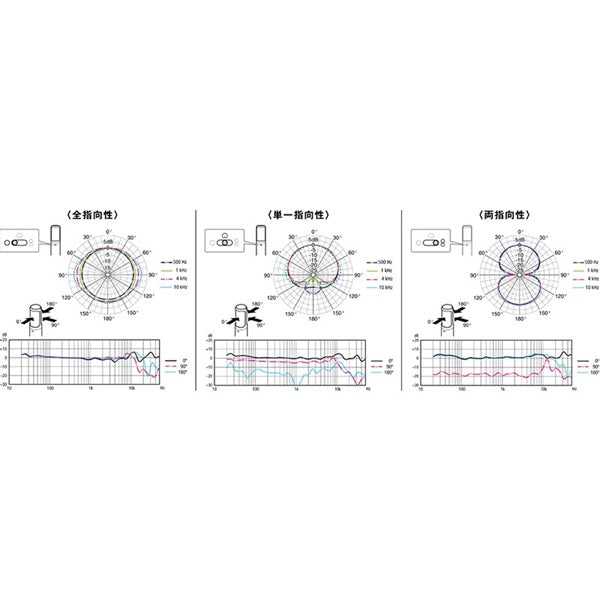

◎Directional characteristics: unidirectional/omnidirectional/bidirectional (switchable)
Frequency response: 20-50,000Hz
◎Front sensitivity (0dB=1V/Pa)
・Unidirectionality: -31 dB
・Omnidirectional: -37 dB
Bidirectional: -35 dB
(Oclination ±3 dB, 0 dB=1 V/Pa, 1 kHz)
Dynamic Range: Unidirectional: 113 dB or more, Omnidirectional: 114 dB or more, Bidirectional: 114 dB or more Output Impedance: 90 Ω ±15%, balanced Signal-to-Noise Ratio (1 kHz, 1 Pa)
・Unidirectionality: 75 dB or more ・Omnidirectionality: 70 dB or more ・Bidirectionality: 72 dB or more ◎Inherent noise ・Unidirectionality: 19dB SPL or less ・Omnidirectionality: 24 dB SPL or less ・Bidirectionality: 22 dB SPL or less (0 dB=2×10-5 Pa)
(IEC *1 61672-1 A-Weighted, 1kHz, 1Pa)
Maximum input sound pressure level: Unidirectional: 132 dB SPL or more; Omnidirectional: 138 dB SPL or more; Bidirectional: 136 dB SPL or more (equivalent input sound pressure converted to the input level at which the microphone output signal produces 1% waveform distortion at 1 kHz, 0 dB = 2 x 10-5 Pa)
Main unit output connector: XLR-3-12C type Power supply: External supply system DC 44 V-52 V (IEC *1 61938 P48)
◎Size (maximum diameter x total length mm): 40 x 175
Grip diameter: 40mm
◎Mass: Approx. 290g

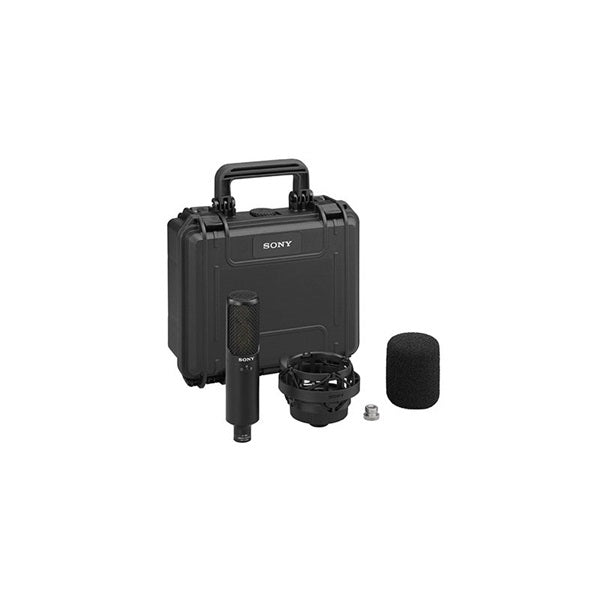

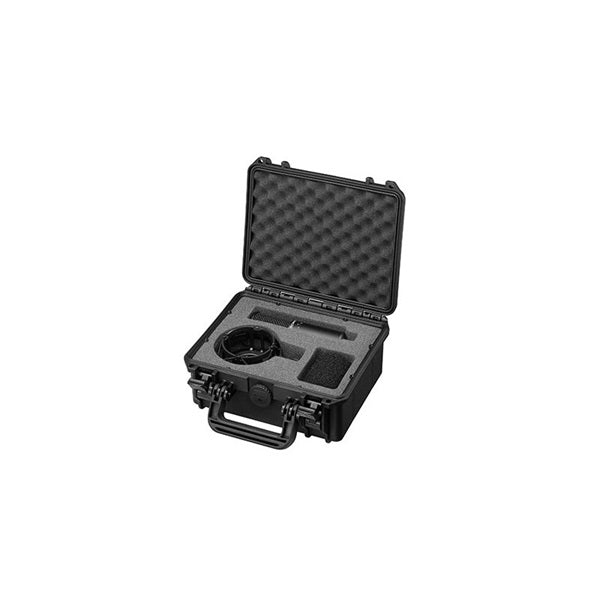

Accessories: Cradle suspension x 1, Windscreen x 1, Stand adapter (W3/8 - NS5/8) x 1, Carrying case x 1

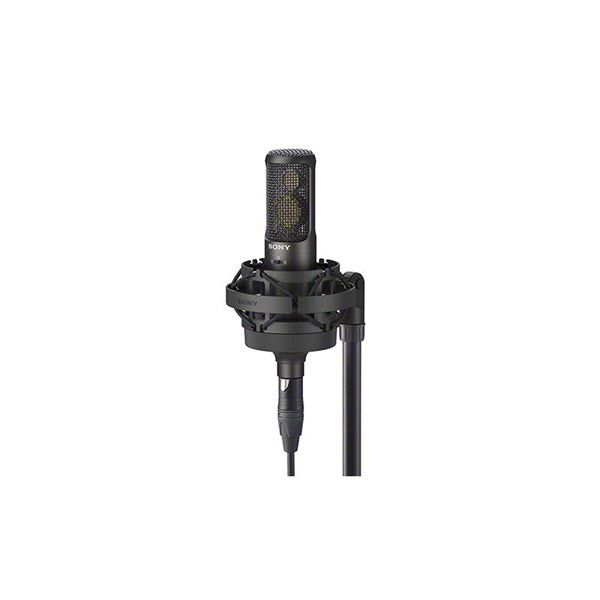

*1 Measured according to IEC (International Electrotechnical Commission) standards. *The cable and stand shown in the image are not included.
