Universal Audio Universal Audio 710 Twin-Finity (Vacuum Tube/Solid State Blend Preamp) (Official Japanese Product)
Sale price
$1,151.00
Regular price
$1,184.00
Unit price
/
Unavailable
Shipping calculated at checkout.
Product Condition
| Brand New | Unused, as sold. |
|---|---|
| Mint | Like new, no flaws. |
| Excellent | Barely used, very minor wear. |
| Very Good | Light wear, fully functional. |
| Good | Visible wear, plays fine. |
| Fair | Heavy wear, still playable. |
Couldn't load pickup availability
Universal Audio Universal Audio 710 Twin-Finity (Vacuum Tube/Solid ...
Sale price
$1,151.00
Regular price
$1,184.00
Unit price
/
Unavailable
Description
Description
★A unique mic pre/DI that allows for a wide range of sound creation
The award-winning 710 Twin-Finity combines the retro warmth of tubes with the transparency of solid-state in a radical mic preamp design packed into a 2U half-rack footprint. The 710 was created to add the sonic versatility and inspiration missing from standard audio interface preamps.
Its unique tone-blending capabilities allow you to continuously vary between 100% tube and 100% solid state without phase issues. Offering a virtually limitless range of tones, it's easy to create your own unique sound. A 19-inch rack kit is included for mounting one or two units.
Key Features: - Harness the sonic characteristics of both tube and solid-state in one unit - Blend tube and solid-state sounds for a wide range of textures and tones - Powerful and versatile mic preamps - Easily track guitars, basses, and keyboards using the front-panel 1/4" Hi-Z input
Incredibly flexible mic preamp

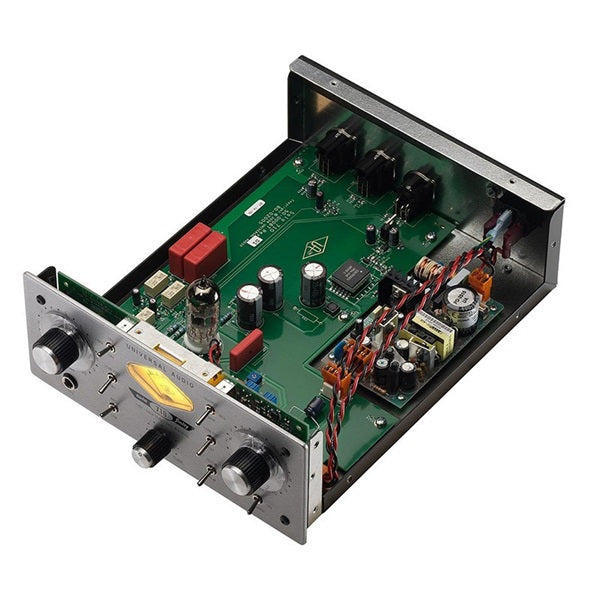

The key to the 710 Twin-Finity's versatility lies in its innovative circuit design. The microphone input signal is amplified simultaneously, without phase shift, by a 310V single-ended Class A triode tube stage and a solid-state transformer-impedance stage before being sent to the output. The front-panel Blend control (∞) allows you to freely mix these signals from 100% tube to 100% solid-state. This allows you to control a wide variety of preamp tones, making it easy to create your own unique sound.
Drive for Days: Like other UA preamp designs, the 710 features dual gain stage controls (Gain and Level) that allow you to crank up the input gain like a guitar amp, dramatically changing the amount of coloration and distortion. The VU meter features a unique Drive mode, making the status of the input stage immediately apparent.
Main Specifications: Input: Microphone (XLR female)
Balanced line (XLR female)
・Unbalanced Instrument (1/4 jack) (DI)
Output: Balanced line (XLR male)
◎Vacuum tube: 12ax7
Pad: -15dB
High-pass filter: 75Hz
◎Maximum power consumption
160mA @120VAC
20W
◎Power requirements: 100-240VAC
◎Dimensions: Width 215mm x Height 89mm x Depth 260mm
◎Weight: 5.25kg
Impedance Microphone Input Impedance: 2KΩ
Line input impedance: 10KΩ
Hi-Z input impedance: 2.2MΩ
Internal output impedance: 600Ω
Gain/Level Unit Gain Range: -Infinity to 70dBu
Mic Range Gain Pot: 10 to 60 dBu
Line Range Gain Pot: -10 to 40 dBu
Hi-Z Range Gain Pot: -10 to 40 dBu
Frequency Response: Microphone Frequency Response: 20Hz to 100kHz +/- 0.2 dBu
Line Frequency Response: 20Hz to 100kHz +/- 0.2 dBu
Hi-Z Frequency Response: 20Hz to 100kHz +/- 0.2 dBu
Distortion: Minimum THD+Noise @ +4dBU: 0.1% Tube, 0.005% Solid State
The award-winning 710 Twin-Finity combines the retro warmth of tubes with the transparency of solid-state in a radical mic preamp design packed into a 2U half-rack footprint. The 710 was created to add the sonic versatility and inspiration missing from standard audio interface preamps.
Its unique tone-blending capabilities allow you to continuously vary between 100% tube and 100% solid state without phase issues. Offering a virtually limitless range of tones, it's easy to create your own unique sound. A 19-inch rack kit is included for mounting one or two units.
Key Features: - Harness the sonic characteristics of both tube and solid-state in one unit - Blend tube and solid-state sounds for a wide range of textures and tones - Powerful and versatile mic preamps - Easily track guitars, basses, and keyboards using the front-panel 1/4" Hi-Z input
Incredibly flexible mic preamp
The key to the 710 Twin-Finity's versatility lies in its innovative circuit design. The microphone input signal is amplified simultaneously, without phase shift, by a 310V single-ended Class A triode tube stage and a solid-state transformer-impedance stage before being sent to the output. The front-panel Blend control (∞) allows you to freely mix these signals from 100% tube to 100% solid-state. This allows you to control a wide variety of preamp tones, making it easy to create your own unique sound.
Drive for Days: Like other UA preamp designs, the 710 features dual gain stage controls (Gain and Level) that allow you to crank up the input gain like a guitar amp, dramatically changing the amount of coloration and distortion. The VU meter features a unique Drive mode, making the status of the input stage immediately apparent.
Main Specifications: Input: Microphone (XLR female)
Balanced line (XLR female)
・Unbalanced Instrument (1/4 jack) (DI)
Output: Balanced line (XLR male)
◎Vacuum tube: 12ax7
Pad: -15dB
High-pass filter: 75Hz
◎Maximum power consumption
160mA @120VAC
20W
◎Power requirements: 100-240VAC
◎Dimensions: Width 215mm x Height 89mm x Depth 260mm
◎Weight: 5.25kg
Impedance Microphone Input Impedance: 2KΩ
Line input impedance: 10KΩ
Hi-Z input impedance: 2.2MΩ
Internal output impedance: 600Ω
Gain/Level Unit Gain Range: -Infinity to 70dBu
Mic Range Gain Pot: 10 to 60 dBu
Line Range Gain Pot: -10 to 40 dBu
Hi-Z Range Gain Pot: -10 to 40 dBu
Frequency Response: Microphone Frequency Response: 20Hz to 100kHz +/- 0.2 dBu
Line Frequency Response: 20Hz to 100kHz +/- 0.2 dBu
Hi-Z Frequency Response: 20Hz to 100kHz +/- 0.2 dBu
Distortion: Minimum THD+Noise @ +4dBU: 0.1% Tube, 0.005% Solid State
