Radial | Product Code:
686046
Sold out
Newly Added
Radial HDI (Radial Inductor) (DI) (Jensen Custom Transformer)
Regular price
$1,114.00
Unit price
/
Unavailable
Shipping calculated at checkout.
Product Condition
| Brand New | Unused, as sold. |
|---|---|
| Mint | Like new, no flaws. |
| Excellent | Barely used, very minor wear. |
| Very Good | Light wear, fully functional. |
| Good | Visible wear, plays fine. |
| Fair | Heavy wear, still playable. |
Couldn't load pickup availability
Description
Description
★Jensen custom transformer equipped studio DI

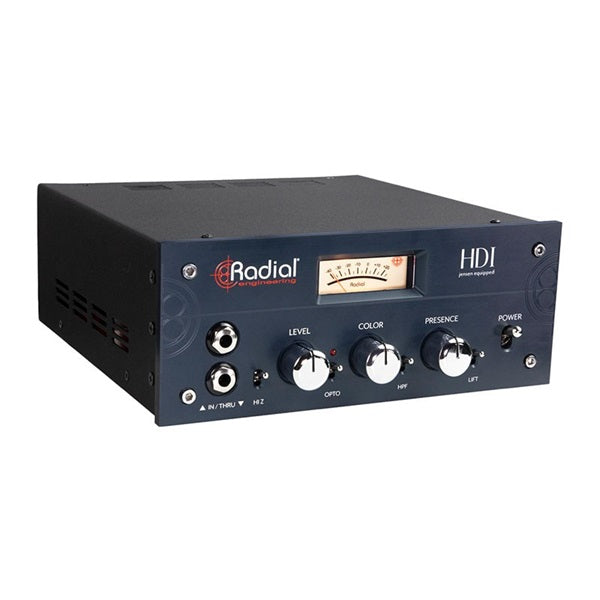

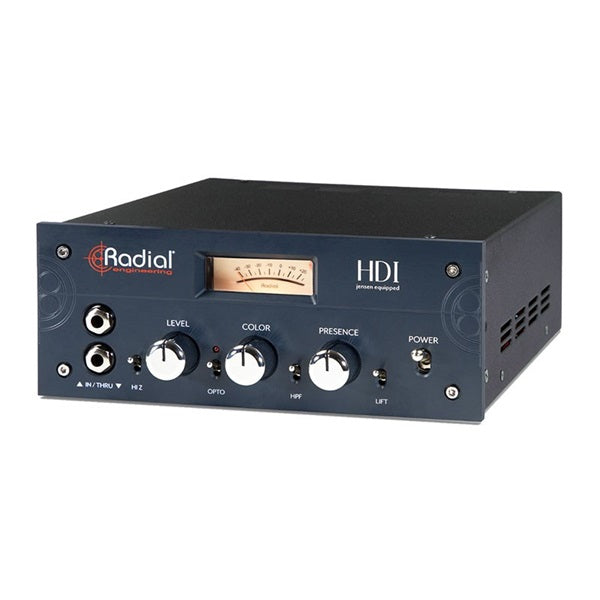

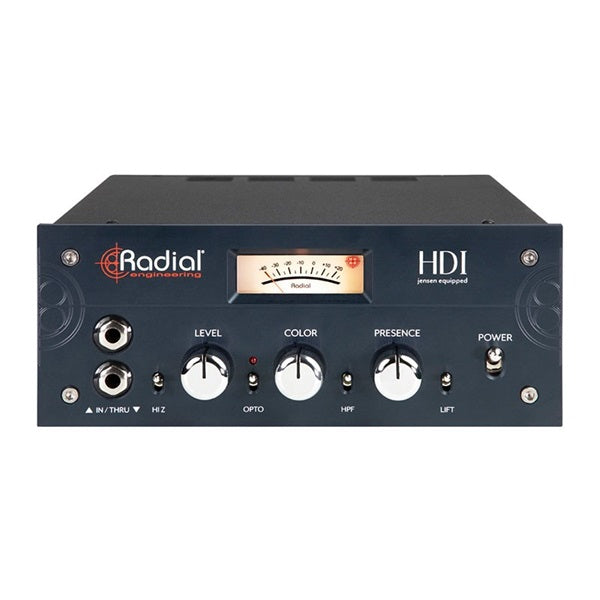

The Radial HDI is a new studio DI featuring an oversized Jensen custom transformer and unique COLOR control.

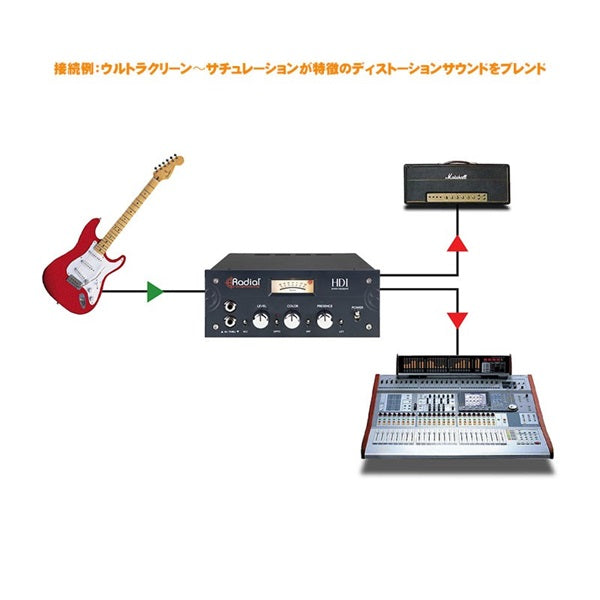

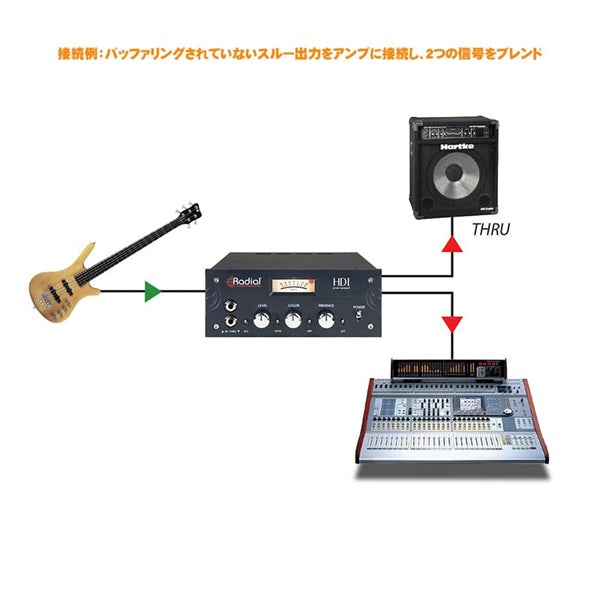

By turning the COLOR control in the center of the unit, you can intuitively blend clean sounds with saturated distortion sounds.In addition to a 1/4 TS phone input for connecting bass or acoustic guitar, it is equipped with a 3.5mm mono input that can handle high signal levels such as from modular synths.

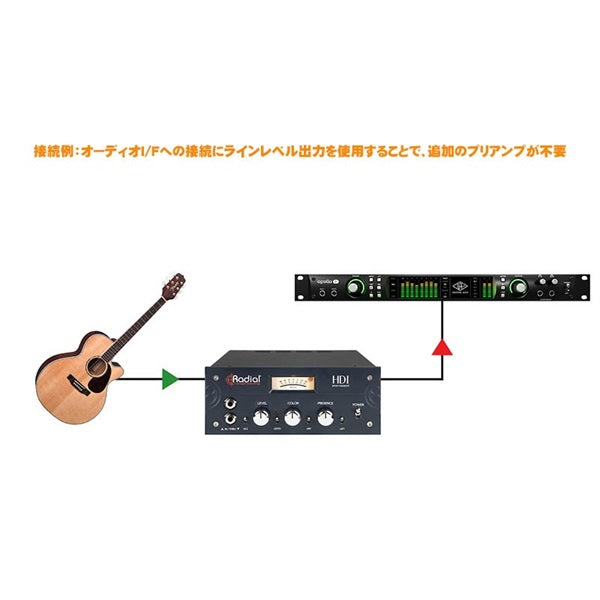

In addition to the balanced mic-level output found on typical DIs, the XLR output also provides a line-level output with a maximum of +25dBu. These XLR outputs are independent of each other, so you can simultaneously supply a mic-level output to your favorite mic preamplifier and a line-level output to an audio IF.

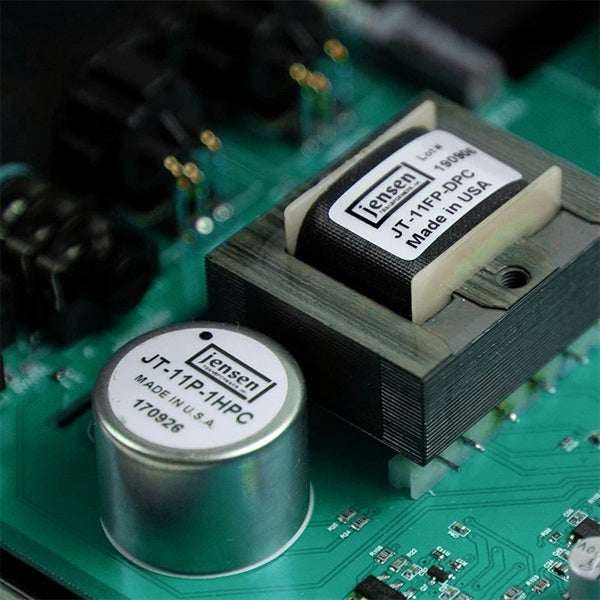

Main features: Intuitive sound settings, ultra-clean to distortion blend, OPTO compressor to suppress peaks, mic and line level outputs, extra-large Jensen custom transformer
■Technical Specifications◎Characteristics/Frequency Response - Line Output: 1Hz ~ 100kHz +0.25/-3dB, 20Hz ~ 20kHz +/-0.1dB
Frequency response - Microphone output: 10Hz to 80kHz +0.25dB/-3dB
Dynamic range: 112dB (20-20k, unweighted, referred to +25dBu)
・S/N ratio: 91dB (20-20k, unweighted, referred to +4dBu)
・THD+N: 0.3% @20Hz, 0.22% @100Hz, 0.01% @1kHz (+4dBu In)
Minimum Gain - Level CCW: -13dB
Maximum Gain - Level CW: +31dB
・Maximum input 1/4 TS: +15dBu, 3 VAC RMS, 8.4 V Peak to Peak
・Maximum input 3.5mm: +25dBu, 7 VAC RMS, 20V Peak to Peak
Maximum output: LINE OUTPUT XLR: +25dBu
・Maximum output MIC OUTPUT XLR: +3.7dBu
Maximum output PROCESSED OUT 1/4: +8dBu
Functions: Level, Color, Presence, Ground Lift, -15dB Pad, Output Meter
Input terminals: 1/4 TS (front and rear), 3.5mm Synth

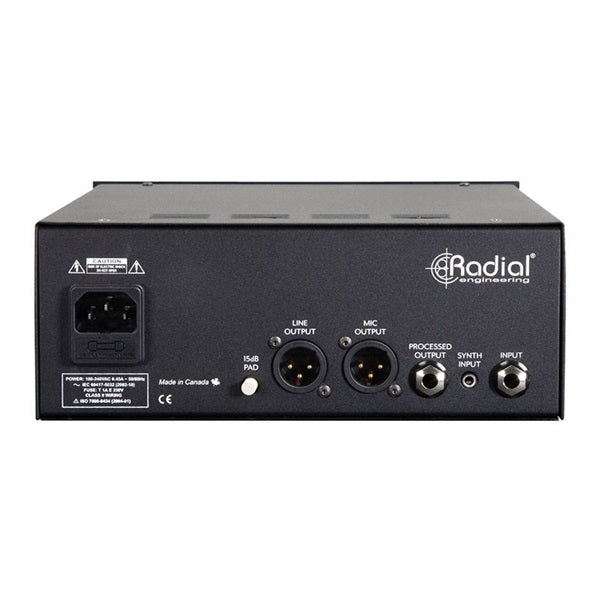

Output terminals: XLR Line/Mic, 1/4 TS Processed, 1/4 TS Thru
・Hi-Z: 200k Ω / 2Meg Ω @ 1/4 Inputs
・OPTO: 6:1 ratio, max 8dB gain reduction
・High-Pass Filter: 40Hz / 100Hz rolloff @ -6dB/octave
Size and Weight: 14 gauge steel chassis, 1/2" aluminum. Front panel dimensions (W x H x D): 216mm x 90mm x 231mm
・Weight: 2.4kg
The Radial HDI is a new studio DI featuring an oversized Jensen custom transformer and unique COLOR control.
By turning the COLOR control in the center of the unit, you can intuitively blend clean sounds with saturated distortion sounds.In addition to a 1/4 TS phone input for connecting bass or acoustic guitar, it is equipped with a 3.5mm mono input that can handle high signal levels such as from modular synths.
In addition to the balanced mic-level output found on typical DIs, the XLR output also provides a line-level output with a maximum of +25dBu. These XLR outputs are independent of each other, so you can simultaneously supply a mic-level output to your favorite mic preamplifier and a line-level output to an audio IF.
Main features: Intuitive sound settings, ultra-clean to distortion blend, OPTO compressor to suppress peaks, mic and line level outputs, extra-large Jensen custom transformer
■Technical Specifications◎Characteristics/Frequency Response - Line Output: 1Hz ~ 100kHz +0.25/-3dB, 20Hz ~ 20kHz +/-0.1dB
Frequency response - Microphone output: 10Hz to 80kHz +0.25dB/-3dB
Dynamic range: 112dB (20-20k, unweighted, referred to +25dBu)
・S/N ratio: 91dB (20-20k, unweighted, referred to +4dBu)
・THD+N: 0.3% @20Hz, 0.22% @100Hz, 0.01% @1kHz (+4dBu In)
Minimum Gain - Level CCW: -13dB
Maximum Gain - Level CW: +31dB
・Maximum input 1/4 TS: +15dBu, 3 VAC RMS, 8.4 V Peak to Peak
・Maximum input 3.5mm: +25dBu, 7 VAC RMS, 20V Peak to Peak
Maximum output: LINE OUTPUT XLR: +25dBu
・Maximum output MIC OUTPUT XLR: +3.7dBu
Maximum output PROCESSED OUT 1/4: +8dBu
Functions: Level, Color, Presence, Ground Lift, -15dB Pad, Output Meter
Input terminals: 1/4 TS (front and rear), 3.5mm Synth
Output terminals: XLR Line/Mic, 1/4 TS Processed, 1/4 TS Thru
・Hi-Z: 200k Ω / 2Meg Ω @ 1/4 Inputs
・OPTO: 6:1 ratio, max 8dB gain reduction
・High-Pass Filter: 40Hz / 100Hz rolloff @ -6dB/octave
Size and Weight: 14 gauge steel chassis, 1/2" aluminum. Front panel dimensions (W x H x D): 216mm x 90mm x 231mm
・Weight: 2.4kg
