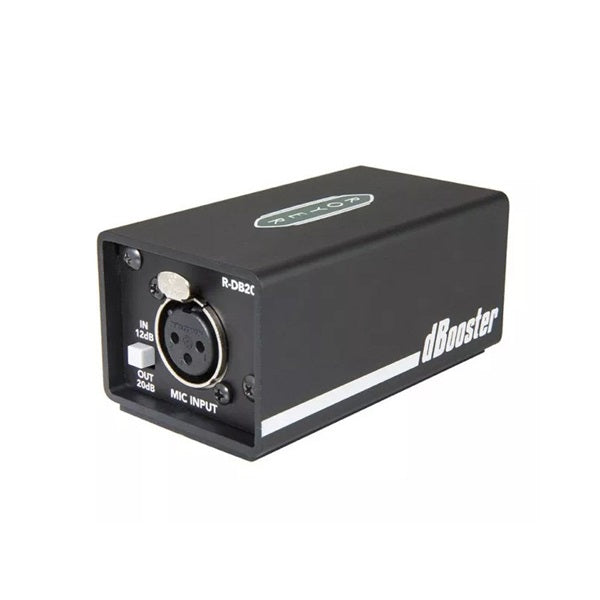

RoyerLabs dBooster (In-Line Signal Booster) (12dB/20dB Microphone Booster) (Royer)
Regular price
$220.00
Unit price
/
Unavailable
Shipping calculated at checkout.
Product Condition
| Brand New | Unused, as sold. |
|---|---|
| Mint | Like new, no flaws. |
| Excellent | Barely used, very minor wear. |
| Very Good | Light wear, fully functional. |
| Good | Visible wear, plays fine. |
| Fair | Heavy wear, still playable. |
Couldn't load pickup availability
RoyerLabs dBooster (In-Line Signal Booster) (12dB/20dB Microphone B...
Regular price
$220.00
Unit price
/
Unavailable
Description
Description
★Inline booster for ribbon and dynamic microphones
The dBooster is an in-line booster for ribbon and dynamic microphones. It has two gain settings, 12dB and 20dB, allowing you to dial in the gain that's right for a variety of voices and instruments.
The 20dB setting provides a clean boost for soft instruments and vocals. When using with louder instruments like electric guitars, use the 12dB setting to avoid overloading the preamp or I/O.
dBooster's Class A input stage delivers a clean boost with ultra-low noise and distortion.
The dBooster's low impedance output simplifies everything from studio to live stage, delivering superior headroom and vintage-style sound with minimal gain loss, even over long cable runs.
dBooster produces particularly excellent results when used with Royer Labs ribbon microphones such as the R-121, R-10, and SF-12.
It works great not only with ribbon microphones, but also with dynamic microphones.
Every dBooster is assembled in the USA and shipped from Royer Labs headquarters in Burbank, California.
Key Features: 12dB/20dB gain selector, ultra-low noise, Class A input stage, safe for use with all ribbon microphones, wide frequency bandwidth, maintains audio quality even over long cable runs
■Specifications Gain: 12dB or 20dB
・THD+N: @ 20dB Gain = .0015%, -25dBu input signal, 1.3Vp-p output signal @ 12dB Gain = .001%, -6Bu input signal, 3.66Vp-p output signal
・IM Distortion: @ 20dB setting, < .002% @ 800mV output, @ 12dB setting, < .005% @ 2.6volts output
・Self-Noise：referred to -48dB re. 1V/pa, 20dB setting < 11dBa, 12dB setting < 15dBa
・Headroom：referred to -48dB re. 1V/pa and 4mV/pa, 20dB setting: 127dB, 12dB setting: 120dB
・Frequency response: 20Hz-20kHz +/- .25dB
Input Impedance: 3.6K-Ohm
・Output Impedance: (at 20dB setting) 300-Ohms
・Current draw: approximately 5ma at zero signal and 7.5ma at full output
・Input and output connections: Balanced XLR: (Pin 1 Ground, Pin 2 Signal Hot, Pin 3 Signal Cold)
Power: 48-Volt phantom
Size: 92mm/51mm/41.3mm
・Weight: 170g
The dBooster is an in-line booster for ribbon and dynamic microphones. It has two gain settings, 12dB and 20dB, allowing you to dial in the gain that's right for a variety of voices and instruments.
The 20dB setting provides a clean boost for soft instruments and vocals. When using with louder instruments like electric guitars, use the 12dB setting to avoid overloading the preamp or I/O.
dBooster's Class A input stage delivers a clean boost with ultra-low noise and distortion.
The dBooster's low impedance output simplifies everything from studio to live stage, delivering superior headroom and vintage-style sound with minimal gain loss, even over long cable runs.
dBooster produces particularly excellent results when used with Royer Labs ribbon microphones such as the R-121, R-10, and SF-12.
It works great not only with ribbon microphones, but also with dynamic microphones.
Every dBooster is assembled in the USA and shipped from Royer Labs headquarters in Burbank, California.
Key Features: 12dB/20dB gain selector, ultra-low noise, Class A input stage, safe for use with all ribbon microphones, wide frequency bandwidth, maintains audio quality even over long cable runs
■Specifications Gain: 12dB or 20dB
・THD+N: @ 20dB Gain = .0015%, -25dBu input signal, 1.3Vp-p output signal @ 12dB Gain = .001%, -6Bu input signal, 3.66Vp-p output signal
・IM Distortion: @ 20dB setting, < .002% @ 800mV output, @ 12dB setting, < .005% @ 2.6volts output
・Self-Noise：referred to -48dB re. 1V/pa, 20dB setting < 11dBa, 12dB setting < 15dBa
・Headroom：referred to -48dB re. 1V/pa and 4mV/pa, 20dB setting: 127dB, 12dB setting: 120dB
・Frequency response: 20Hz-20kHz +/- .25dB
Input Impedance: 3.6K-Ohm
・Output Impedance: (at 20dB setting) 300-Ohms
・Current draw: approximately 5ma at zero signal and 7.5ma at full output
・Input and output connections: Balanced XLR: (Pin 1 Ground, Pin 2 Signal Hot, Pin 3 Signal Cold)
Power: 48-Volt phantom
Size: 92mm/51mm/41.3mm
・Weight: 170g
