TELEFUNKEN TD-2 (passive 2-channel)
Regular price
$383.00
Unit price
/
Unavailable
Shipping calculated at checkout.
Product Condition
| Brand New | Unused, as sold. |
|---|---|
| Mint | Like new, no flaws. |
| Excellent | Barely used, very minor wear. |
| Very Good | Light wear, fully functional. |
| Good | Visible wear, plays fine. |
| Fair | Heavy wear, still playable. |
Couldn't load pickup availability
TELEFUNKEN TD-2 (passive 2-channel)
Regular price
$383.00
Unit price
/
Unavailable
Description
Description
*This is a passive DI.
The Telefunken TD-1 (1-channel) and TD-2 (2-channel) are newly designed passive DIs that combine premium-quality components and rugged construction to deliver a rich, warm sound.
Featuring UK-made OEP/Carnhill transformers and a design approach that embodies "simple is best," this passive DI delivers natural tone with excellent vibe and character to complement it.
High-quality audio transformers are just one of the premium design elements of TD Series direct boxes.
The PCB is 100% hand assembled for safety and reliability. All circuit traces are gold plated for maximum longevity and conductivity. High impedance reduces the load on passive pickups.
The frequency response is ±2dB, within the range of 10 Hz - 40, minimizing distortion and noise.

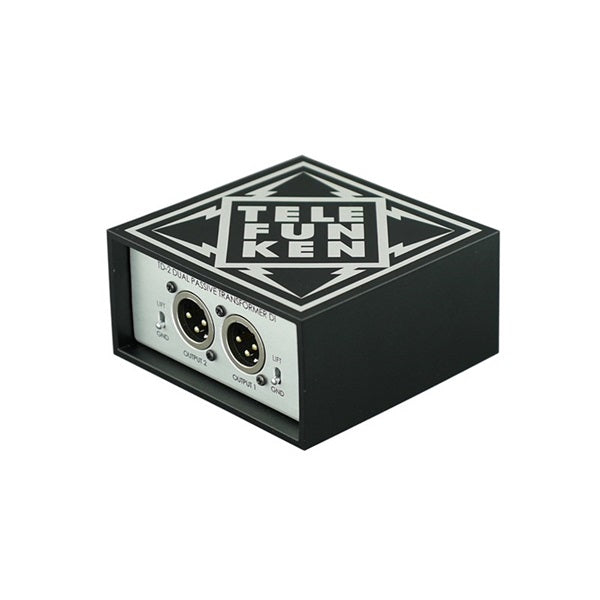

The circuitry is housed in a very sturdy extruded aluminium enclosure.
It is designed to be durable and durable enough to be carried around on tour.

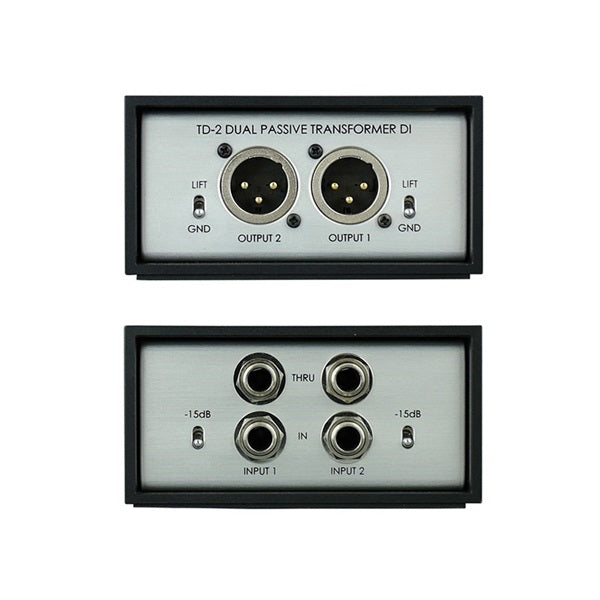

Each channel has a -15dB pad switch and a ground lift switch.
The TD-2 is a 2-channel unit, so you can use one unit with two instruments, whether on stage or in the studio.
Telefunken passive DIs are reliable, high-quality direct boxes.
Its simple and elegant design approach sets a new standard for direct boxes, delivering high-end sound with detailed, well-balanced low end.
features
- British-made OEP/Carnhill transformer - -15dB pad switch - Ground lift switch - Extruded aluminum housing - 100% through-hole components - Amphenol connectors - WIMA and Nichicon capacitors - 1% 1/4W metal film resistors
spec
Channels: TD-1/1ch TD-2/2ch
Transformer: Custom-Wound OEP/Carnhill
Frequency response: 10 Hz - 40 kHz, ± 2 dB
Input Impedance: ＞100kΩ
Output Impedance: ＞100kΩ
Weight: 482g
Size: 100mm L x 100mm W x 50mm H
Maximum input: >+18dBV
Input terminal: 1/4 jack
Output terminal: XLR Output, 1/4 Thru
*Please note that product specifications and appearance may change without notice.
The Telefunken TD-1 (1-channel) and TD-2 (2-channel) are newly designed passive DIs that combine premium-quality components and rugged construction to deliver a rich, warm sound.
Featuring UK-made OEP/Carnhill transformers and a design approach that embodies "simple is best," this passive DI delivers natural tone with excellent vibe and character to complement it.
High-quality audio transformers are just one of the premium design elements of TD Series direct boxes.
The PCB is 100% hand assembled for safety and reliability. All circuit traces are gold plated for maximum longevity and conductivity. High impedance reduces the load on passive pickups.
The frequency response is ±2dB, within the range of 10 Hz - 40, minimizing distortion and noise.
The circuitry is housed in a very sturdy extruded aluminium enclosure.
It is designed to be durable and durable enough to be carried around on tour.
Each channel has a -15dB pad switch and a ground lift switch.
The TD-2 is a 2-channel unit, so you can use one unit with two instruments, whether on stage or in the studio.
Telefunken passive DIs are reliable, high-quality direct boxes.
Its simple and elegant design approach sets a new standard for direct boxes, delivering high-end sound with detailed, well-balanced low end.
features
- British-made OEP/Carnhill transformer - -15dB pad switch - Ground lift switch - Extruded aluminum housing - 100% through-hole components - Amphenol connectors - WIMA and Nichicon capacitors - 1% 1/4W metal film resistors
spec
Channels: TD-1/1ch TD-2/2ch
Transformer: Custom-Wound OEP/Carnhill
Frequency response: 10 Hz - 40 kHz, ± 2 dB
Input Impedance: ＞100kΩ
Output Impedance: ＞100kΩ
Weight: 482g
Size: 100mm L x 100mm W x 50mm H
Maximum input: >+18dBV
Input terminal: 1/4 jack
Output terminal: XLR Output, 1/4 Thru
*Please note that product specifications and appearance may change without notice.
