Radial | Product Code:
301855
Newly Added
Radial EXTC-SA
Regular price
$331.00
Unit price
/
Unavailable
Shipping calculated at checkout.
Product Condition
| Brand New | Unused, as sold. |
|---|---|
| Mint | Like new, no flaws. |
| Excellent | Barely used, very minor wear. |
| Very Good | Light wear, fully functional. |
| Good | Visible wear, plays fine. |
| Fair | Heavy wear, still playable. |
Couldn't load pickup availability
Radial EXTC-SA
Regular price
$331.00
Unit price
/
Unavailable
Description
Description
★Re-effect with your favorite effect pedal!
This is essentially the effects version of re-amping. Using the EXTC-SA, you can apply guitar pedal effects to a recording you've already made. Guitar effect pedals are typically instrument-level, so they can't be directly connected to a line-level recording. Even if you tried, you'd need a re-amp or DI box, which can be quite a hassle to set up.
But with the EXTC-SA, it's very easy. Just connect your favorite pedal to the loop on this unit and you can try out the pedal effects as many times as you like, even after recording. Of course, because it's a dedicated unit, it's easy to use and packed with convenient functions.
■Specifications/Circuit Type: Class A discrete, transformer coupled
Power supply: Dedicated adapter included, 15VDC/400mA
◆DRY
Frequency response: 20Hz-20kHz +/- 1.5dB
Gain: 0dB
・THD+N (1kHz): <0.005% @ 0dBu
Noise: -93dB
Intermodulation distortion: <0.003% @ 0dBu input
Maximum input: +26dBu
◆WET
Frequency response: 20Hz-10kHz +/- 3.5dB (-8dB @ 20kHz) for instruments
Gain: 12dB - send & receive maximum, 6dB - send minimum, receive maximum, 0dB - send & receive center
・THD+N (1kHz): <0.002% @ 0dBu
Noise: 84dB
Intermodulation distortion: <0.02% @ 0dBu input
Maximum input: +20dBu
*All gain characteristics are with both effects loops bypassed.
*Gain will vary depending on the input/output specifications of the effector used in the loop.
<3rd image>

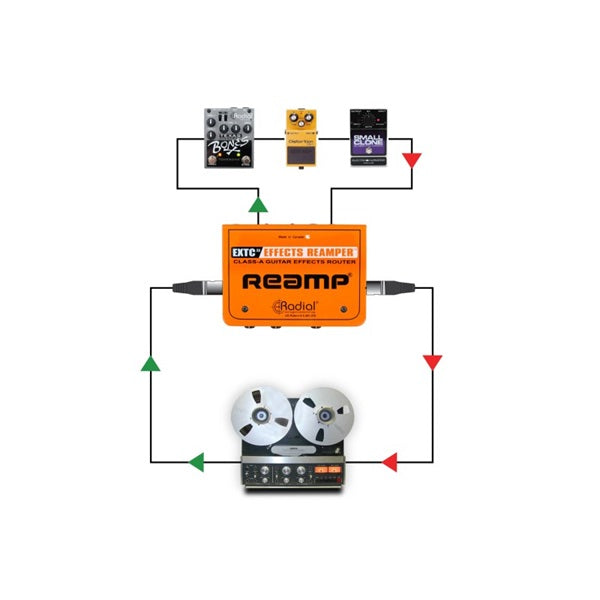

◆Connection example: Applying guitar effects to a recorded track
Send the recorded dry track to EXTC and connect it to a pedal. For example, it might be interesting to try using a guitar pedal on a vocal track, an envelope filter on a kick drum, or a wah on a Hammond.
<4th image>

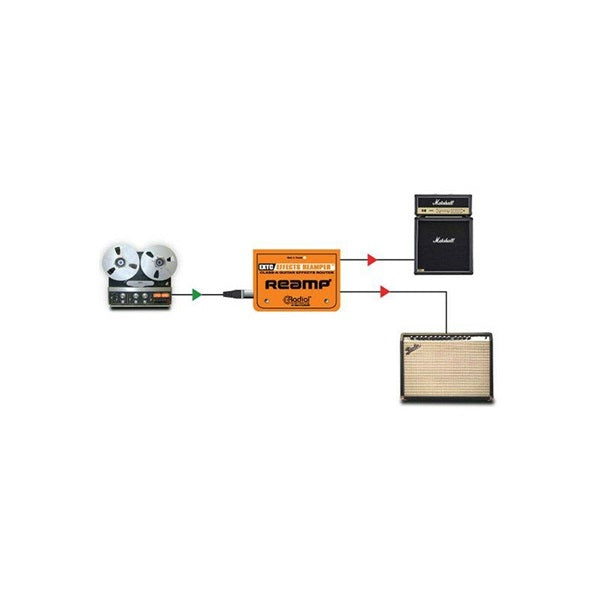

Connection example: Use as a re-amp
The EXTC can also be used as a re-amp. Connect a recorded audio source to the INPUT and connect an amplifier to the SEND. Since there are two SENDs, you can connect two amplifiers at the same time.
*Equipment other than EXTC-SA is sold separately.
This is essentially the effects version of re-amping. Using the EXTC-SA, you can apply guitar pedal effects to a recording you've already made. Guitar effect pedals are typically instrument-level, so they can't be directly connected to a line-level recording. Even if you tried, you'd need a re-amp or DI box, which can be quite a hassle to set up.
But with the EXTC-SA, it's very easy. Just connect your favorite pedal to the loop on this unit and you can try out the pedal effects as many times as you like, even after recording. Of course, because it's a dedicated unit, it's easy to use and packed with convenient functions.
■Specifications/Circuit Type: Class A discrete, transformer coupled
Power supply: Dedicated adapter included, 15VDC/400mA
◆DRY
Frequency response: 20Hz-20kHz +/- 1.5dB
Gain: 0dB
・THD+N (1kHz): <0.005% @ 0dBu
Noise: -93dB
Intermodulation distortion: <0.003% @ 0dBu input
Maximum input: +26dBu
◆WET
Frequency response: 20Hz-10kHz +/- 3.5dB (-8dB @ 20kHz) for instruments
Gain: 12dB - send & receive maximum, 6dB - send minimum, receive maximum, 0dB - send & receive center
・THD+N (1kHz): <0.002% @ 0dBu
Noise: 84dB
Intermodulation distortion: <0.02% @ 0dBu input
Maximum input: +20dBu
*All gain characteristics are with both effects loops bypassed.
*Gain will vary depending on the input/output specifications of the effector used in the loop.
<3rd image>
◆Connection example: Applying guitar effects to a recorded track
Send the recorded dry track to EXTC and connect it to a pedal. For example, it might be interesting to try using a guitar pedal on a vocal track, an envelope filter on a kick drum, or a wah on a Hammond.
<4th image>
Connection example: Use as a re-amp
The EXTC can also be used as a re-amp. Connect a recorded audio source to the INPUT and connect an amplifier to the SEND. Since there are two SENDs, you can connect two amplifiers at the same time.
*Equipment other than EXTC-SA is sold separately.
