IK Multimedia iLoud MTM MKII Single (1 unit)

iLoud MTM MKII delivers the best acoustic performance in a wide range of environments.
It has made great progress.
New woofers and tweeters, a larger horizontal sweet spot, improved power efficiency, higher SPL, and an updated internal
DSP, more accurate ARC calibration, control software X-
MONITOR support, etc. These numerous improvements have resulted in improved sound clarity, power, precision, and adjustability.

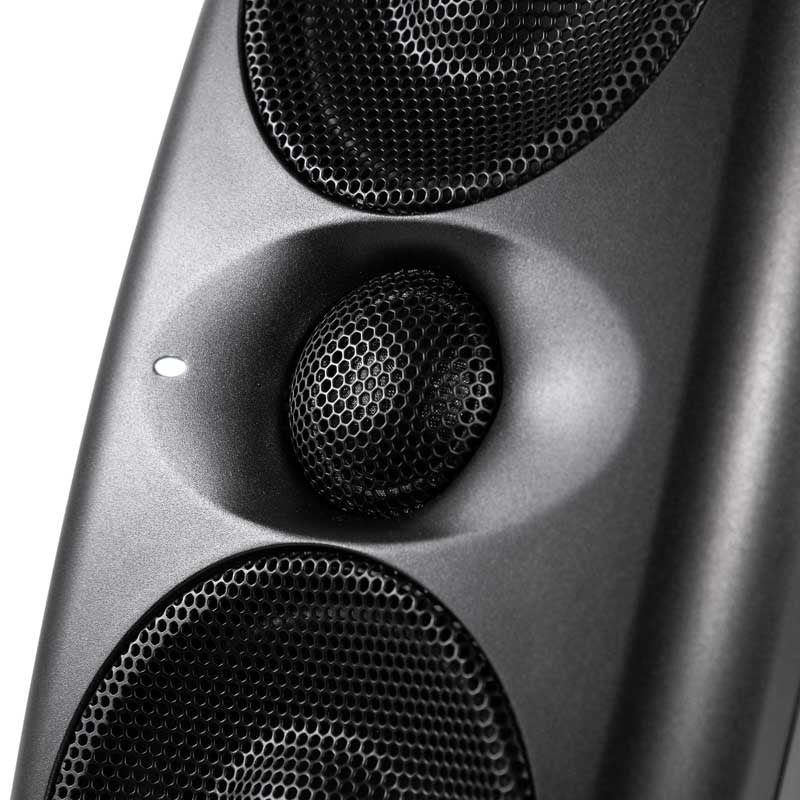

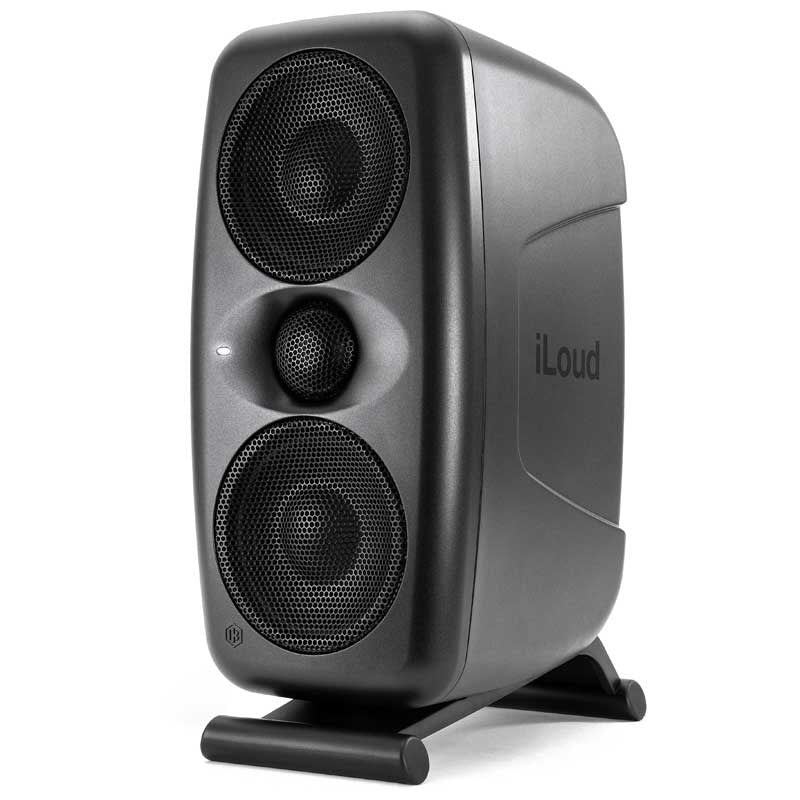

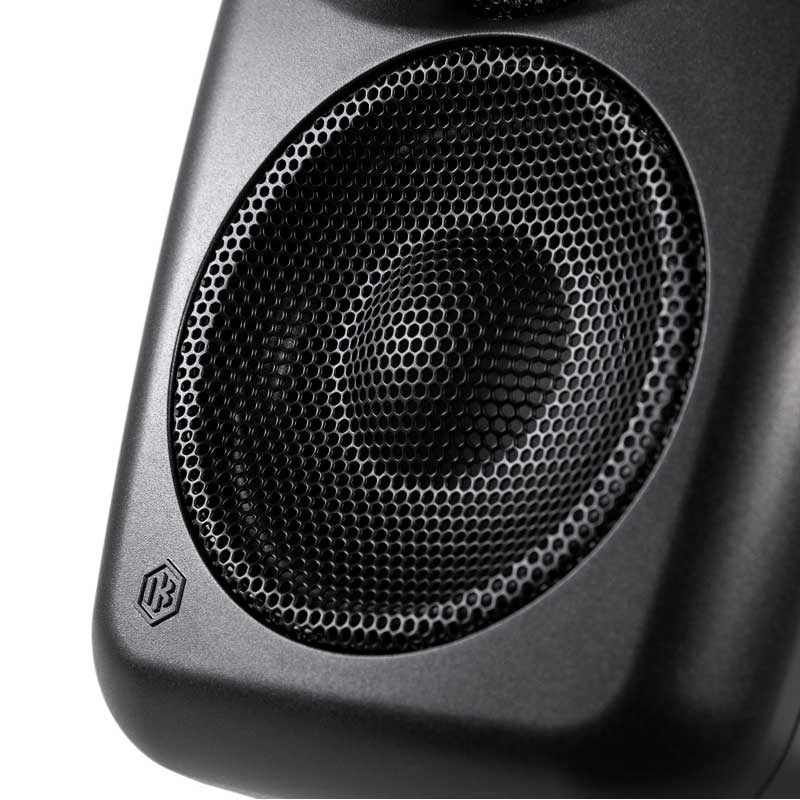

Two 3.5-inch high-performance woofers and a high-resolution 1-inch tweeter with a back chamber are arranged symmetrically, top and bottom, left and right, and are often called "virtual coaxial."
The system uses an MTM (midwoofer + tweeter + midwoofer) design. As a result, even in near-field situations, the woofer and tweeter playback sounds are not separated, and appear to be coming from a single point. This eliminates the problem of different frequencies reaching the ears at different times as occurs with conventional two-way systems, eliminating fatigue even during long mixes.

With extended bass reproduction down to 36 Hz (-10 dB) and higher SPL levels, the iLoud series' signature "sound beyond its size" has been further enhanced. The improved bass reproduction and volume give it the same performance as larger speakers, enabling reference-quality monitoring for a wider range of applications.

The design also optimizes sound dispersion. Minimizing vertical dispersion reduces reflections from floors, desks, and ceilings, enabling accurate monitoring even at close range. Meanwhile, horizontal dispersion is wider than the original iLoud MTM, providing a larger sweet spot while maintaining smooth in-room response.
Along with improved power efficiency, the maximum SPL has also been expanded, providing enhanced support for situations requiring higher volume, such as immersive monitor setups and FOH mixes at live venues.

The latest ARC calibration function, which continues to evolve, is built in, allowing the speaker to perform optimal acoustic correction in any room.
The 4-point room correction function inherited from the Precision series ensures extremely reliable monitoring. This room correction using ARC technology is
Simply connect an ARC MEMS microphone (sold separately for single packages) to the microphone input on each speaker and you're ready to go.

The iLoud Precision series now supports X-MONITOR, the proven control software for the iLoud Precision series. Using X-MONITOR, you can control your iLoud MTM MKII speakers in ways beyond the controls on the back of the speakers. For example, X-MONITOR lets you set delay compensation for each iLoud MTM MKII speaker, allowing you to synchronize the timing between speakers when building an immersive audio system.
X-MONITOR also includes over 20 "voices" that emulate the frequency and phase characteristics of standard studio monitors. Selecting the voice of a model you've listened to in the past or the model your client uses at home will help you judge the mix objectively.

Main features of iLoud MTM MKII
- Bass down to 36 Hz. Improved midrange clarity and articulation for more accurate mixing.
- From the original iLoud MTM (50 Hz to 24 kHz +/-2 dB) to the iLoud MTM MKII (48 Hz to 28
Ultra-flat frequency response extended to 100 kHz (+/- 2dB)
- Updated 96 kHz internal DSP with double the processing power
- Expanded horizontal sound spread while maintaining vertical sound control and precision, providing a wider sweet spot and smoother response
- More efficient power management increases the maximum SPL per unit from 110.5 dB in the original model to 112.5 dB
- The latest ARC correction algorithm inherited from iLoud Precision delivers precision and reliability that exceeds its size and price

iLoud MTM MKII Main Specifications: Speaker Type: 2-way/3-speaker, bi-amped, digitally controlled studio monitor; LF Driver: 2 x 3.5-inch, custom-made cellulose mid-woofers; HF Driver: 1-inch, low-distortion, back-chambered silk dome tweeter; DSP-assisted low-frequency reflection compensation; Number of built-in amplifiers per speaker: 2
Amplifier type: High-efficiency Class-D
Total output power: 100 W RMS
LF Output: 70 W RMS
HF Output: 30 W RMS
Crossover Type: Digitally processed, linear phase Crossover Frequency: 2.8 kHz
・Frequency characteristics: 48 Hz to 28 kHz ±2dB (36 Hz to 32 kHz @-10 dB)
・Phase characteristics: ±15° (200 Hz to 20 kHz)
Sensitivity (+4 dBu): 94 dB SPL with a -6 dBu signal at 1 m
Sensitivity (+10 dBV): 94 dB SPL at 1 m with a -17 dBu signal
Continuous long-term SPL (free space) @ 1m (single speaker played in front)
ANSI-2034 Weighted Pink Noise: 97 dB
Peak SPL (free space) @ 1m (single speaker played in front) ANSI-2034
Weighted pink noise: 110.5 dB
Peak SPL (half space) @ 1m (single speaker played in front) ANSI-
2034 Weighted Pink Noise: 112.5 dB

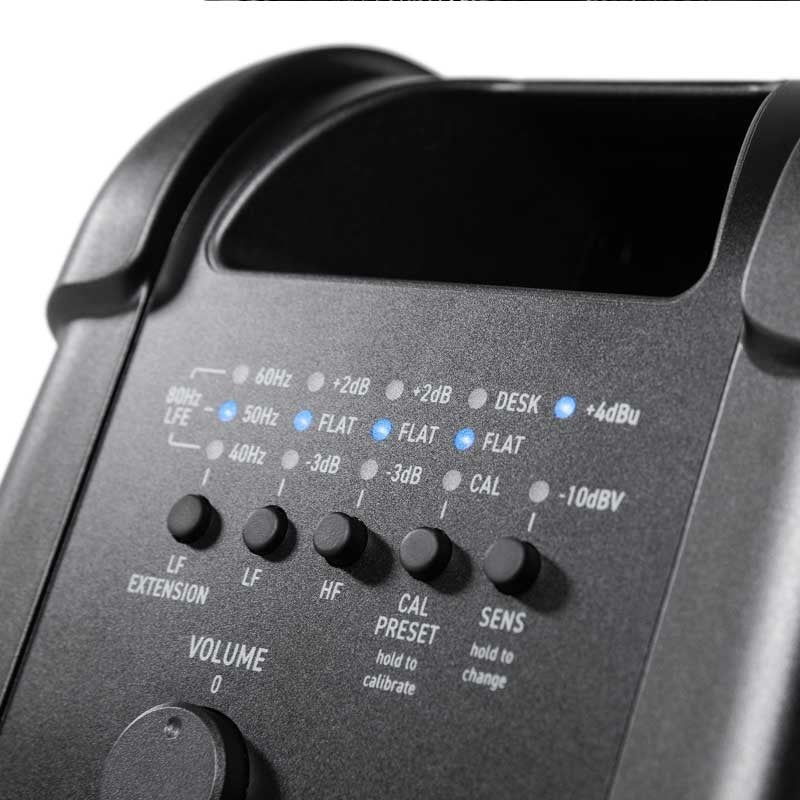

- Adjustment switches: LF Extension, LF trim, HF trim, Desk position
LF Extension switch: Sets the -3dB frequency point from 40/50/60/80 Hz
LF switch: Sets low shelf trim below 100 Hz from +2 dB/flat/-3 dB
HF switch: +2 dB/flat/-2 dB high shelf trim above 8 kHz
Desk switch: -4 dB @160 Hz, +1 dB @1.8 kHz
Calibration: Built-in fully automatic digital calibration. Fully controlled by DSP. Total Latency (TOF): 2.44 mS
Connection terminal: Balanced combo input (XLR/TRS standard phone), for ARC MEMS microphones
TS miniphone input, USB type-B, AC power inlet Power supply: 90 V to 240 V AC auto-switching, 50/60 Hz, maximum power consumption 120 W
・External dimensions: 264 mm x 160 mm x 130 mm (per unit)
Weight: 2.5 kg (per unit, main body + foot)

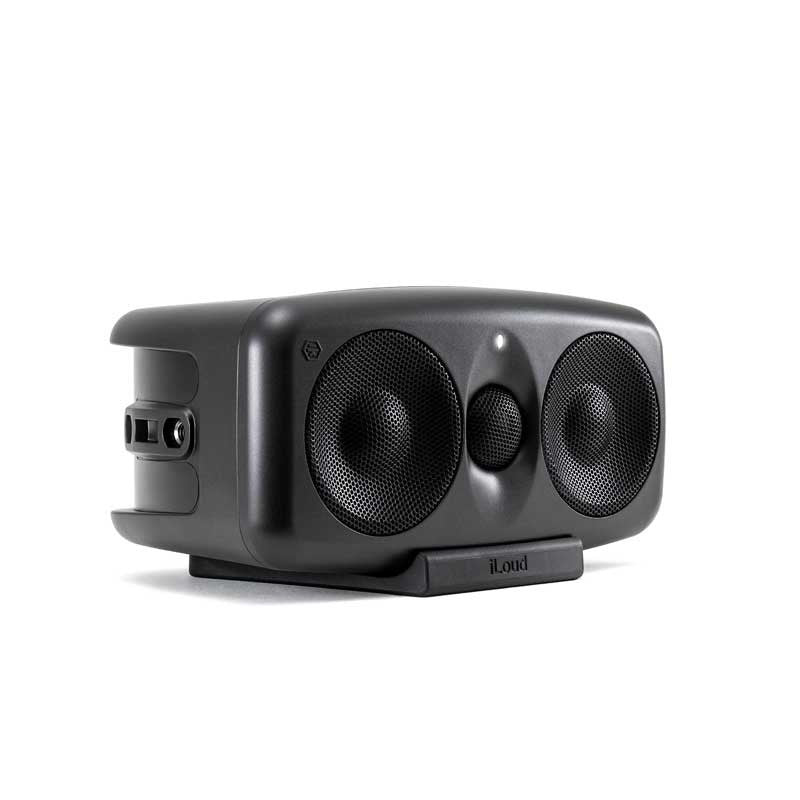

Accessories: Power cable, adjustable stand (0 to 20 degrees), rubber feet for horizontal placement, lock key
*The single package does not include an ARC microphone or ARC microphone cable.
