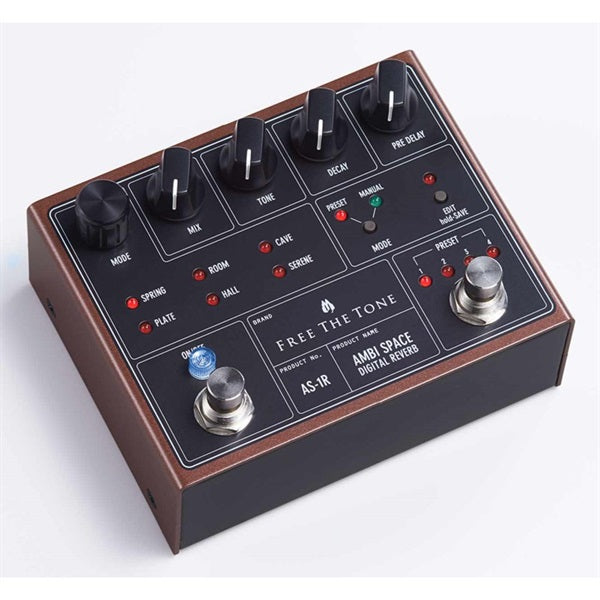

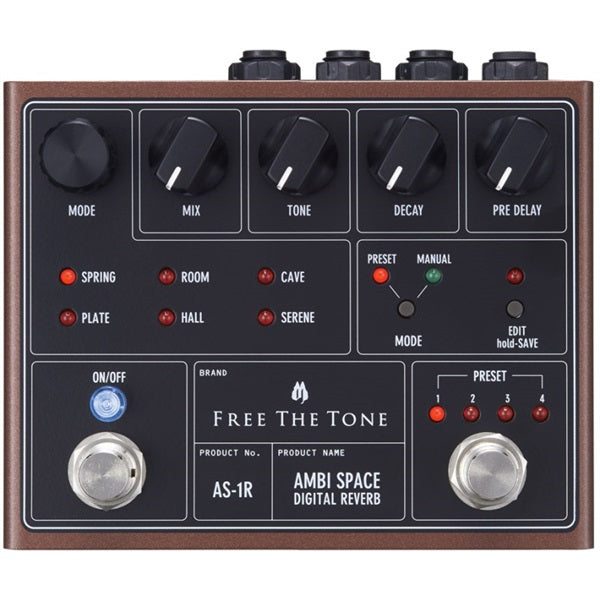

Free The Tone AS-1R [AMBI SPACE DIGITAL REVERB] (FREE THE TONE) Reverb

Introducing the AMBI SPACE digital reverb, delivering astonishing sound quality thanks to high-speed calculations using a 32-bit high-precision DSP!

AMBI SPACE is a complex reverberation mechanism created by various elements.
Utilizing high-speed processing powered by a 32-bit dual-core CPU chip and a 32-bit high-precision DSP, the sound is reproduced using FREE THE TONE's unique algorithm.
The high-quality, yet extremely natural and musical reverberation produced by this small unit can be used in a variety of situations, including with electric guitars and basses, as well as acoustic guitars and vocals, and even for recording and mixing.
In addition, the new reverb sounds "CAVE" and "SERENE," which have been developed exclusively by FREE THE TONE, add a complex harmonic structure to the reverb sound in multiple stages, resulting from the emphasis on frequency components that make up reverberation when reproducing the early reflections and late reverberation, creating a fantastical, transparent, and spacious reverb sound never before seen.
This new reverb sound will stimulate your imagination.
AMBI SPACE is a reverb effect pedal born after many years of development, combining all the analog and digital technologies FREE THE TONE has cultivated over the years. Experience its sound for yourself.

■Features・AMBI SPACE uses a dual-core chip with a 32-bit main CPU and 32-bit co-processor, and performs high-speed calculations with a 32-bit high-precision DSP, allowing it to produce sound comparable to that of a rack-type effector, despite its compact size.
- Up to four settings of all knobs can be memorized as presets.
- The four presets can be recalled by MIDI program change numbers.
- Equipped with 6 reverb modes.
- FREE THE TONE's unique reverb sounds, "CAVE" and "SERENE," are created by a complex reverberation pattern design that adds a variety of harmonic structures to the reverb sound in multiple stages, creating a fantastical, transparent, and spacious reverb sound never before heard before.
The original (dry) sound passes from input to output as an analog signal, and the original sound and reverb sound are mixed in the internal analog mixer, allowing the sound to be output without compromising the sound quality of the original sound.
- A major feature of FREE THE TONE products is the built-in HTS Circuit, which comprehensively manages signals from input to output, maintaining the same sound quality whether the effect is on or off.

● Number of presets: 4
Input impedance: INST 1MΩ or more / LINE 300kΩ or more Output load impedance: 10kΩ or more Maximum input level: INST +3dBm / LINE +11dBm

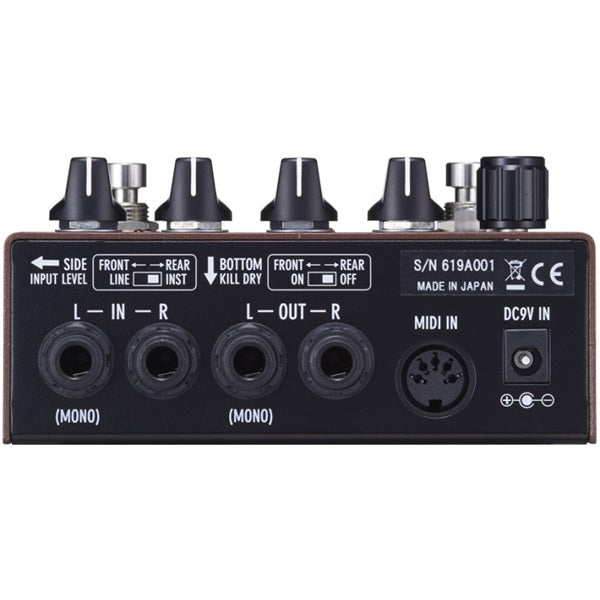

Controls: Pre-Delay, Decay, Tone, Mix, Mode, Inst (-10dB) / Line (+4dB) Level Switch, Kill Dry Switch Connectors: 1/4" standard phone jack x 4, L (mono) / R Input, L (mono) / R Output, DIN 5-pin connector (MIDI IN), DC 9V input jack (for AC adapter connection)
Power supply: DC 9V, center negative (FA-0905D-JA recommended)
● Current consumption: 280mA (maximum value)
●Dimensions: 120(W) x 102.3(D) x 74(H)mm (including protrusions such as foot switch and jack)
Weight: Approx. 385g (excluding accessories)
●Accessories: Warranty card, instruction manual, rubber feet x 4
*Specifications and appearance may be changed without notice for improvement purposes.
