Vestax | Product Code:
717320
Sold out
Newly Added

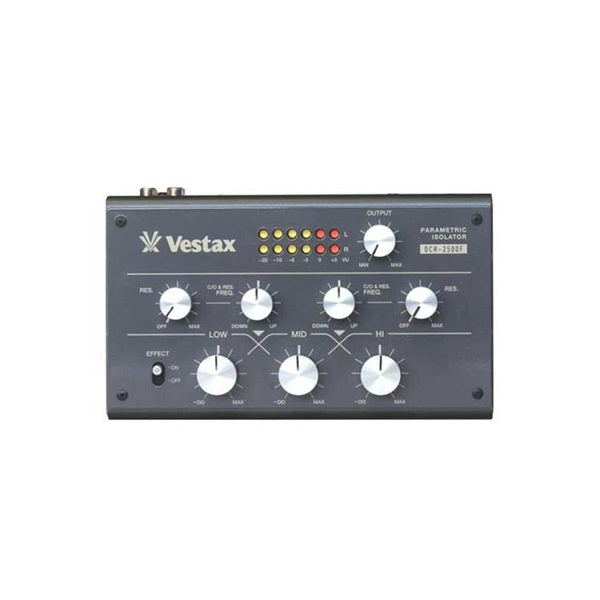

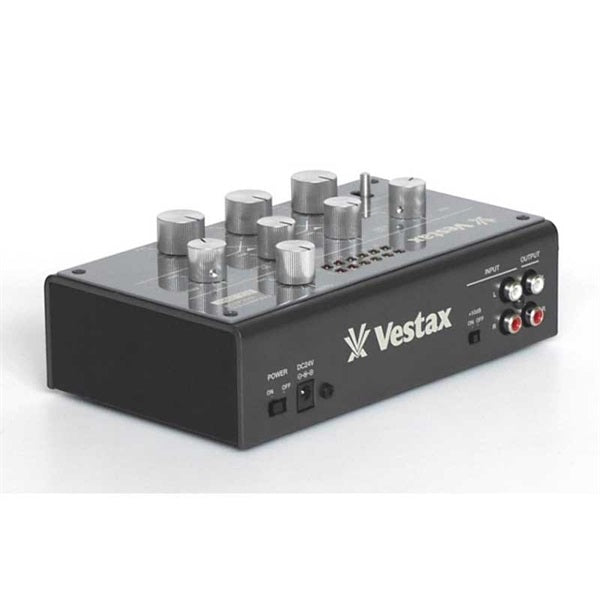

Vestax DCR-2500F
Regular price
$439.00
Unit price
/
Unavailable
Shipping calculated at checkout.
Product Condition
| Brand New | Unused, as sold. |
|---|---|
| Mint | Like new, no flaws. |
| Excellent | Barely used, very minor wear. |
| Very Good | Light wear, fully functional. |
| Good | Visible wear, plays fine. |
| Fair | Heavy wear, still playable. |
Couldn't load pickup availability
Description
Description
★Next-generation isolator that makes real-time editing fun★
■High performance that inherits the original circuit of the famous VESTAX DCR-1500 isolator
VESTAX's first isolator, the DCR-1200, was designed with the idea of a crossover for club sound system speakers, equipped with three frequency band outputs and designed to be installed directly into the system.
However, it was discovered that there was a difference between the frequency ranges used in club sound systems and those that were effective for DJ performances, and the effect subsequently evolved into a DJ effect that was operated by the DJ at hand rather than by the system.
■An "isolator" effectively divides music, as opposed to a corrective "equalizer"
Generally, a "sharp isolator" refers to a state in which only the sounds you want to cut are cut, without the sounds you don't want cut out, but to achieve this, not only is the crossover angle important, but the frequency point is also important. When playing in a club, it is particularly important to be able to control "just the kick" or "just the hi-hat," and it is desirable that the mid-range not be strangely pulled in by the attenuation adjustment.
The DCR-2500F allows you to set the crossover frequency over a wide range, and what's more, it is stepless, allowing DJs to easily adjust it at hand. This means that you can freely set the crossover frequency for any type of music, going beyond the four-on-the-floor beats that traditionally required an isolator, allowing for isolation play across all genres. It's truly a new-generation isolator for today's diverse music scene.
[Main features]
●This is a sharp, high-performance isolator that inherits the basic circuit of the renowned isolator VESTAX DCR-1500.
●Two crossover frequencies with a wide range of settings can be easily adjusted steplessly while playing. Not only can you accommodate different kick and hi-hat frequency ranges depending on the song, but the act of moving the crossover frequencies itself can produce different effects (high-pass filter, low-pass filter, mid-pass filter, notch filter).
The resonance functions synchronized with the two crossover frequencies provide a filter effect in addition to the conventional isolator effect. This is the kind of effect that sounds like "scary" or "shocking," but in the case of this unit, it is not an unpleasantly strong effect that makes it difficult to recognize the original song, but rather a high-quality, refined, and subtle resonance effect.
To eliminate the small buzzing noise that occurs when switching effects on and off, this unit employs a VCA circuit, which has been proven effective in the crossfader section of the PMC-05PRO3/2/1 professional hip-hop mixer. The lever is also made of metal, so there's no need to worry about it breaking even during intense transformer play.
The built-in volume control and level meter not only allow you to set the volume to suit the connected device, but also make it easy to see whether the left and right signals are being received, even in a dark, cramped DJ booth.The effect on/off status can be checked by the color of the LED at the tip of the lever (green for ON, red for OFF).
●When connecting an input from a device with a small output, you can easily match the levels by turning on the +10dB gain switch located next to the jack.
●To facilitate smooth rotation, the simple cylindrical knob has no protrusions that may catch on your fingertips and is made entirely from luxurious machined aluminum.
●Made in Japan
[Main specifications]
Rated Input: -10dBu stereo x 1 (RCA pin jack) / +10dB level matching switch with impedance 490kΩ (1kHz)
Rated output: -10dBu stereo x 1 (RCA pin jack)
Impedance 35Ω (1kHz)
Number of isolator bands: 3 bands (LOW/MID/HI)
Isolation level variable range: -∞ to +6dB (0dB at center position)
Crossover frequency range: LOW-MID 68 Hz to 705 Hz (knob center position, 270 Hz), MID-HI 2.85 kHz to 16.5 kHz (knob center position, 4.9 kHz)
Resonance peak level: Knob at MAX
+10dBu (LOW, MID, HI are at center position)
+4.5dBu (LOW, MID, or HI is at -∞)
Frequency response (effect ON, LOW, MID, HI at center position, RES. OFF):
±-0.5 dB (20 Hz to 20 kHz)
(Effect OFF): +0/-0.5dB (20Hz - 20kHz)
●THD+N (Total Harmonic Distortion + Noise):
Effect ON, LOW, MID, HI at center position, RES. OFF
0.005% (1kHz 0dBu input, AES17 (20kHz), HPF 400Hz)
Noise level: A-wt AES17 (20kHz) input short
-101 dBu (effect OFF),
-87 dBu (effect ON)
Main unit dimensions/weight:
152 (W) x 111 (D) x 55 (H) mm (including feet, excluding knobs)
/ 1.6 kg (power adapter not included)
(Maximum external dimensions: approx. 152 (W) x 115.5 (D) x 69.5 (H) mm including knobs, feet, and RCA jack heads)
Power supply: DC24V 0.5A (center positive)
Please use the included dedicated power adapter. Power adapter input: AC 100V to 240V (switching type)
●Power consumption: 2.8W (unit alone)
Power consumption including AC adapter is 3.5W
*In order to improve and enhance the product, some specifications may be changed without notice.
