dbx di1
Regular price
$89.00
Unit price
/
Unavailable
Shipping calculated at checkout.
Product Condition
| Brand New | Unused, as sold. |
|---|---|
| Mint | Like new, no flaws. |
| Excellent | Barely used, very minor wear. |
| Very Good | Light wear, fully functional. |
| Good | Visible wear, plays fine. |
| Fair | Heavy wear, still playable. |
Couldn't load pickup availability
Description
Description

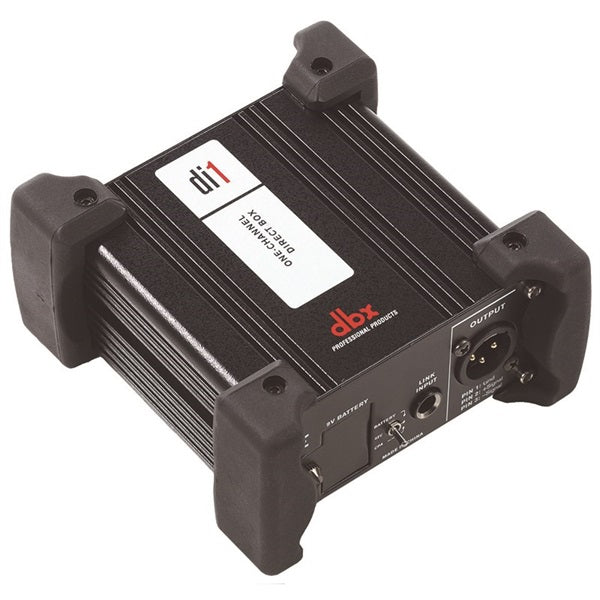

A versatile and compact active direct box for a variety of environments
In addition to the basic functions of a direct box, such as impedance matching and conversion to a balanced transmission system, it also has many other functions.

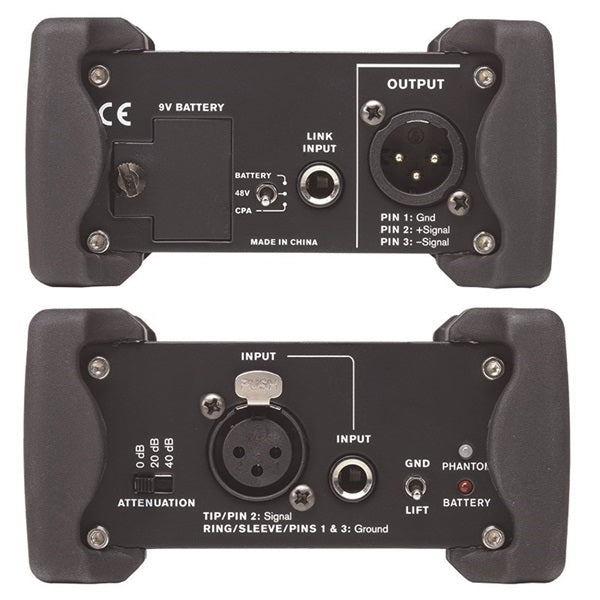

The input connectors are standard phone and XLR, and there is also a three-position pad switch, allowing for compatibility with a variety of devices.
In addition to the main out, it also has a through output (LINK INPUT) that outputs the input signal as is without processing it, so you can send the main signal to a mixer while also outputting a signal to a bass amp at the same time.
- It can be powered by phantom power from the connected mixer, as well as a 9V battery, so it can be used in environments where phantom power is not available.
- Also equipped with a power switch, an indicator that lights up when phantom power is being supplied, and an indicator that lights up when powered by batteries.
- Also equipped with a ground lift switch to isolate ground loops.
・2-year long-term warranty
■Specifications
Voice input
Number of channels: 1
Connector: XLR (unbalanced) or standard phone (3P unbalanced)
Impedance: 250kΩ or more Maximum level: +12dBu (Pad off)
Pad: 0/-20/-40dB
Audio Output
main
Number of channels: 1
Connector: XLR (balanced)
Impedance: 600Ω or more Maximum level: +12dBu
Through
Number of channels: 1
Connector: Standard phone (3P unbalanced)
Frequency response: 10Hz to 70kHz (+0dB/-3dB)
THD+N: 0.005% or less @1kHz(0dBu)
Power supply: Phantom DC 18-48V or 9V battery
Dimensions (W x H x D): 120 x 61 x 127 mm
Mass: 474g
In addition to the basic functions of a direct box, such as impedance matching and conversion to a balanced transmission system, it also has many other functions.
The input connectors are standard phone and XLR, and there is also a three-position pad switch, allowing for compatibility with a variety of devices.
In addition to the main out, it also has a through output (LINK INPUT) that outputs the input signal as is without processing it, so you can send the main signal to a mixer while also outputting a signal to a bass amp at the same time.
- It can be powered by phantom power from the connected mixer, as well as a 9V battery, so it can be used in environments where phantom power is not available.
- Also equipped with a power switch, an indicator that lights up when phantom power is being supplied, and an indicator that lights up when powered by batteries.
- Also equipped with a ground lift switch to isolate ground loops.
・2-year long-term warranty
■Specifications
Voice input
Number of channels: 1
Connector: XLR (unbalanced) or standard phone (3P unbalanced)
Impedance: 250kΩ or more Maximum level: +12dBu (Pad off)
Pad: 0/-20/-40dB
Audio Output
main
Number of channels: 1
Connector: XLR (balanced)
Impedance: 600Ω or more Maximum level: +12dBu
Through
Number of channels: 1
Connector: Standard phone (3P unbalanced)
Frequency response: 10Hz to 70kHz (+0dB/-3dB)
THD+N: 0.005% or less @1kHz(0dBu)
Power supply: Phantom DC 18-48V or 9V battery
Dimensions (W x H x D): 120 x 61 x 127 mm
Mass: 474g
