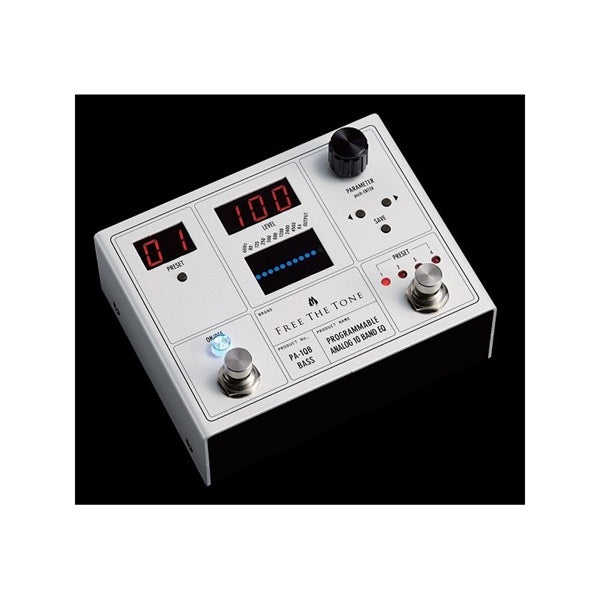

Free The Tone PA-1QB [Programmable Analog 10-Band EQ for Bass]

Control the rich sound of analog with the ease of digital!

The PA-1QG (for guitar)/PA-1QB (for bass) are groundbreaking products that further advance the fusion of digital and analog technologies cultivated by FREE THE TONE in the development of the AMBI SPACE and TRI AVATAR. At first glance, they appear to be digital equalizer effects, but the PA-1QG/PA-1QB are "analog equalizers." The equalizer circuits (including the input and output sections) through which the guitar and bass signals pass are all analog, preserving the rich tone of the guitar or bass directly. This is the same signal processing method as a traditional graphic equalizer with a slider volume. While these are simply analog effects, the PA-1QG/PA-1QB's parameter control section is digital, accurately storing and processing the status of various parameters digitally. This results in a groundbreaking product that combines analog effects with real-time control via presets and MIDI. After more than 10 years of trial and error since its conception, the PA-1QG/PA-1QB has finally been completed. The PA-1QG/PA-1QB is an effects pedal that combines the rich sound of analog with the high operability of digital at a high level. Experience its cutting-edge sound and operability for yourself.

*This product is PA-1QB (for bass).

[Features]

●The equalizer circuit (including the input/output section) through which the instrument signal passes is composed entirely of analog circuits, while the parameter control section is composed of digital circuits, making this a revolutionary product that, despite being an analog effector, also allows for presets and real-time control via MIDI.

The HTS Circuit, a major feature of FREE THE TONE products, has been renewed. It comprehensively manages guitar and bass signals from input to output at an even higher quality, maintaining the same sound quality whether the effect is on or off.

The 10-band equalizer has separate frequencies for guitar and bass, with frequencies and equalizer curves optimized for each instrument. This makes it easier to use and allows for more precise adjustments.

●99 presets can be instantly recalled via MIDI signal control.

It can be used not only as an equalizer effect, but also as a preset volume that manages the volume for each preset. This is useful when you want to increase the volume during solo playing, or when you want to even out individual differences in output levels when switching between multiple guitars or basses.

[Main specifications]

●Number of presets: 99
Input impedance: INST 1MΩ or more / LINE 300kΩ or more Output load impedance: 10kΩ or more Maximum input level: INST +4dBm / LINE +14dBm (EQ setting = flat)

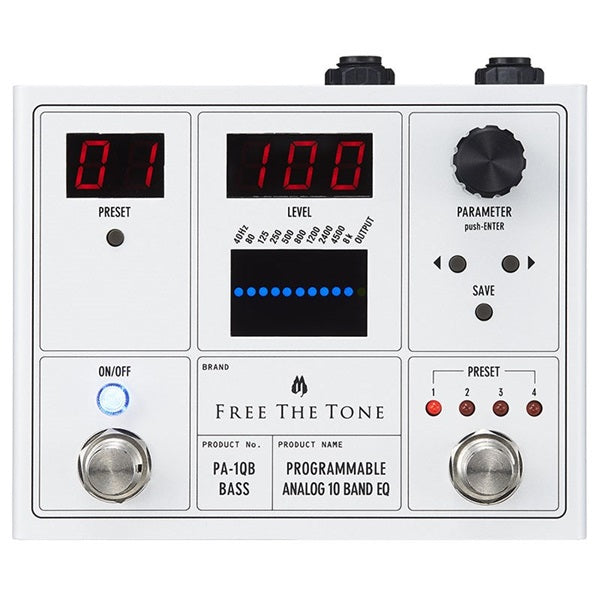

Controls: Cursor keys, PARAMETER encoder, INST (-10dB)/LINE (+4dB) level selector switch Frequency: PA-1QB: 40Hz, 80, 125, 250, 500, 800, 1200, 2400, 4500, 8K (+/-12dB)

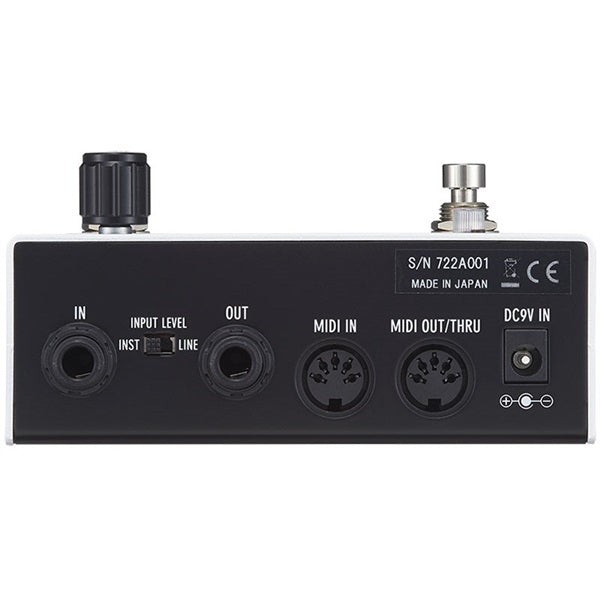

Terminals: 1/4-inch standard phone jack x 2 (input, output), DC9V input jack (for AC adapter connection), DIN 5-pin connector x 2 (MIDI IN, OUT/THRU)
Power supply: DC 9V, center negative (FA-0905D-JA recommended)
● Current consumption: 150mA (maximum value)
●Dimensions: 120(W) x 102.3(D) x 58.5(H)mm (including protrusions such as foot switch and jack)
Weight: Approx. 350g (excluding accessories)
●Accessories: Warranty, instruction manual, dedicated AC adapter (FA-0905D-JA), rubber feet x 4

*Specifications and appearance may be changed without notice for improvement purposes.
