FISHMAN AFX BROKEN RECORD MINI LOOPER/SAMPLER [PRO-AFX-LP2] Fishman

Looper and sampler pedal with 6 minutes of audio recording!

Drag-and-drop WAV file transfer via USB True bypass with buffered bypass option 24-bit/44.1kHz recording quality Intuitive record/playback footswitch and loop level control Innovative dual-path routing Ultra-compact design fits almost anywhere Requires 9V external power (powered by adapter or power supply, sold separately)


AFX Broken Record packs high-quality audio loops and samples into a small, deceptively simple stompbox. It features intuitive one-button operation, infinite overdubs, and easy transfer to your computer. Record, overdub, and perform cool riffs and patterns with the touch of a footswitch. With up to six minutes of high-quality 24-bit, 44.1kHz audio recording, AFX Broken Record lets you capture and build on cool ideas, or even play along with pre-recorded audio transferred from your computer. The built-in memory retains your recordings even when the power is off, so you can unplug it during a gig and transfer your loops to your computer later. This also means that backing tracks transferred from your computer are ready and waiting to be played at your next performance.



■BROKEN RECORD USER GUIDE
USB/AFX Phrase Transfer: Not only can you create samples and loops on the fly, but you can also transfer audio between your computer and AFX Broken Record, ensuring that the audio remains in memory even after power is lost.

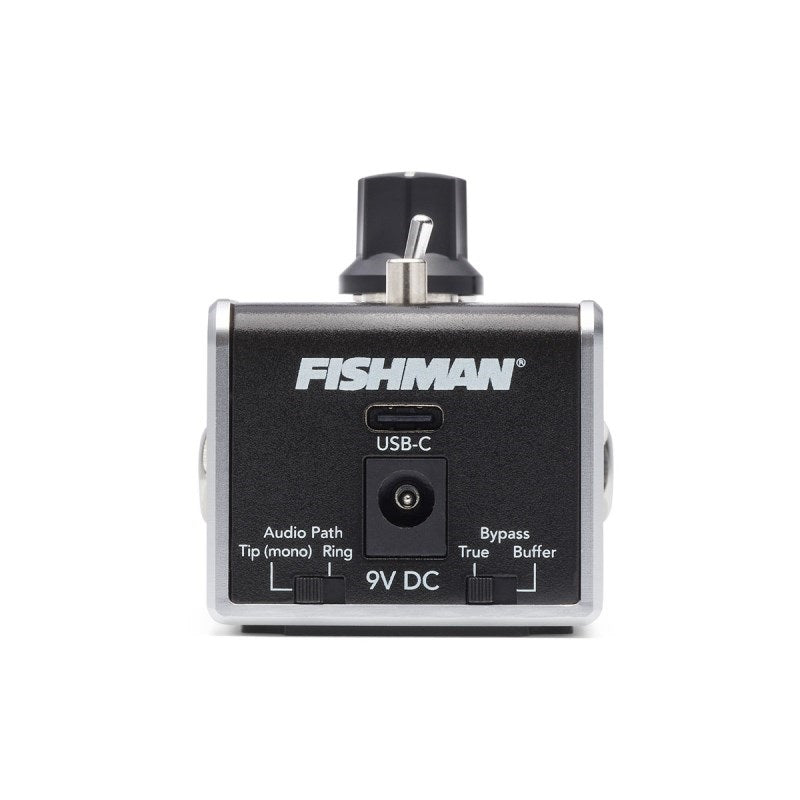

・AUDIO PATH SWITCH
The AFX Mini allows you to select the audio path that a particular effect is processed through, and you do this by toggling the Audio Path switch on the front of the pedal.

・TRUE BYPASS
In true bypass, the pedal's electronics are literally removed from the signal chain. For those who prefer buffered bypass, the AFX Mini effects pedal is switchable.

DC Power Supply: To pack so much functionality into such a small stompbox, the AFX Mini requires an external power supply. To ensure the above specifications, be sure to use a Fishman 910-R (120VAC) or 910-U (230VAC) power adapter.

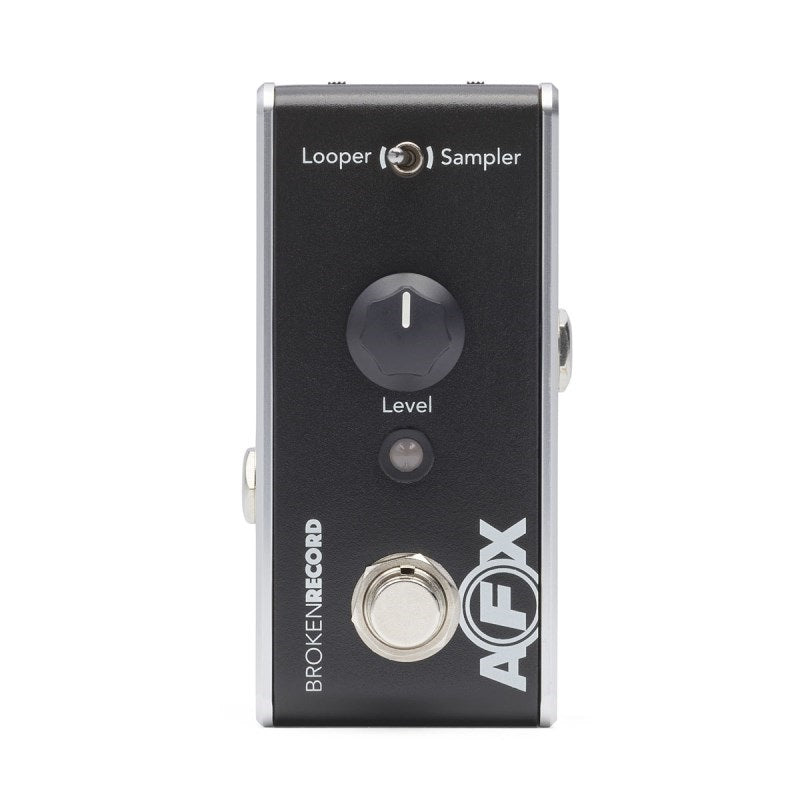

・LEVEL
This knob sets the playback level of the loop or sample, which is mixed with the direct sound.

・LOOPER MODE
Looper mode lets you record, play back, and endlessly overdub to create multi-layered audio loops.

・SAMPLER MODE
Sampler mode is designed to play audio once without looping. If you want your recording to play only once and then stop automatically, you can switch between Looper and Sampler mode.

■Specifications Model number: PRO-AFX-LP2

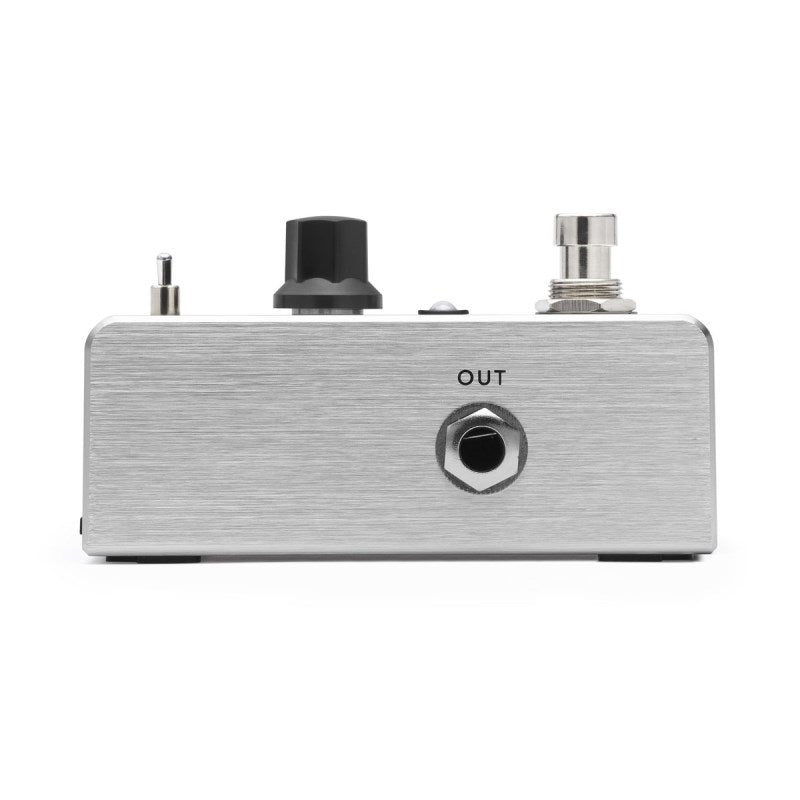

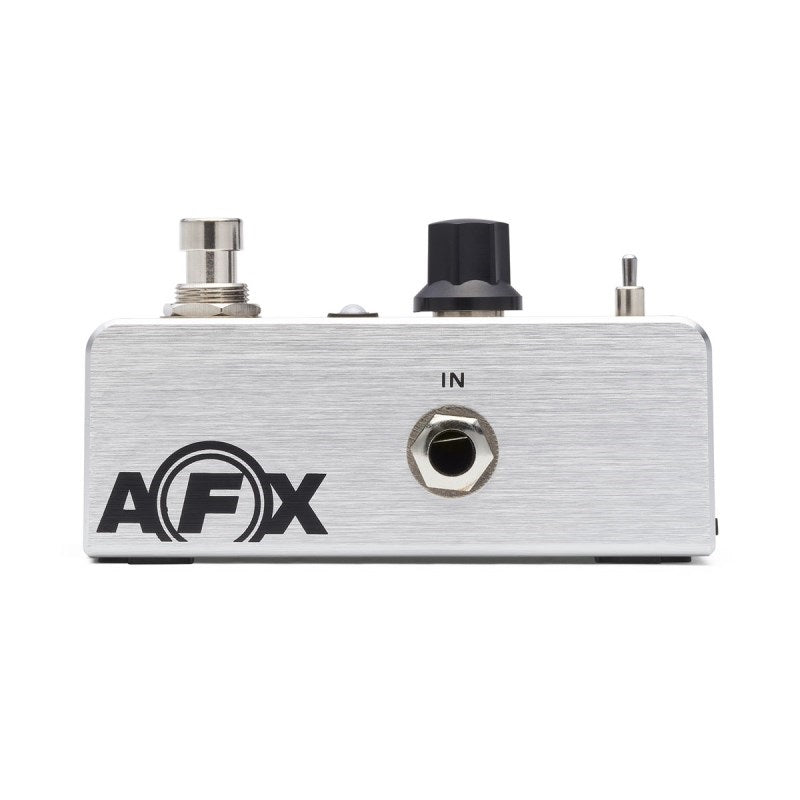

Audio I/O: 1/4" TRS inputs and outputs (TRS enables dual path functionality)
DSP: 32-bit processing Bypass: True bypass with buffered bypass option Dimensions: 1.9" W x 3.8" D x 1.92" H (49mm W x 97mm D x 49mm H)
Material: Durable aluminum housing. Current Draw: 53mA, typical. Power Supply: 910-R AC adapter (sold separately) or appropriately filtered and tuned 5.5mm OD x 2.1mm ID barrel connector, center negative. Analog Signal Path: Input Impedance: 10M Ohms | Output Impedance: 1kΩ | Signal-to-Noise Ratio: -100dB | Dynamic Range: 100dB
Digital Signal Path: A/D, D/A Conversion: 24-bit | Signal Processing: 32-bit
