FISHMAN Fishman AFX AcoustiComp Mini Compressor Pedal [PRO-AFX-CM2]

Optimized for acoustic instruments, simple yet effective compression helps shape your playing dynamics and ensure consistent performance.

Compression knob for simple yet effective control. Level control helps balance gain. True bypass with buffered bypass option. Innovative dual-path routing. Ultra-compact design fits almost anywhere. Requires 9V external power (powered by adapter or power supply, sold separately).


Based on the popular Aura Spectrum Compressor, which produces consistent performance while improving tone and sustain, AcoustiComp provides mild yet effective dynamic leveling designed specifically for acoustic instruments. Turn up the Comp knob to thicken your tone, or turn it up a bit to add light compression that sits better in the mix without sacrificing tone. Compressors can be tricky to get just right, especially when adjusting acoustic sounds. AcoustiComp works behind the scenes to set these critical parameters for predictable results.



■ACOUSTICOMP USER GUIDE

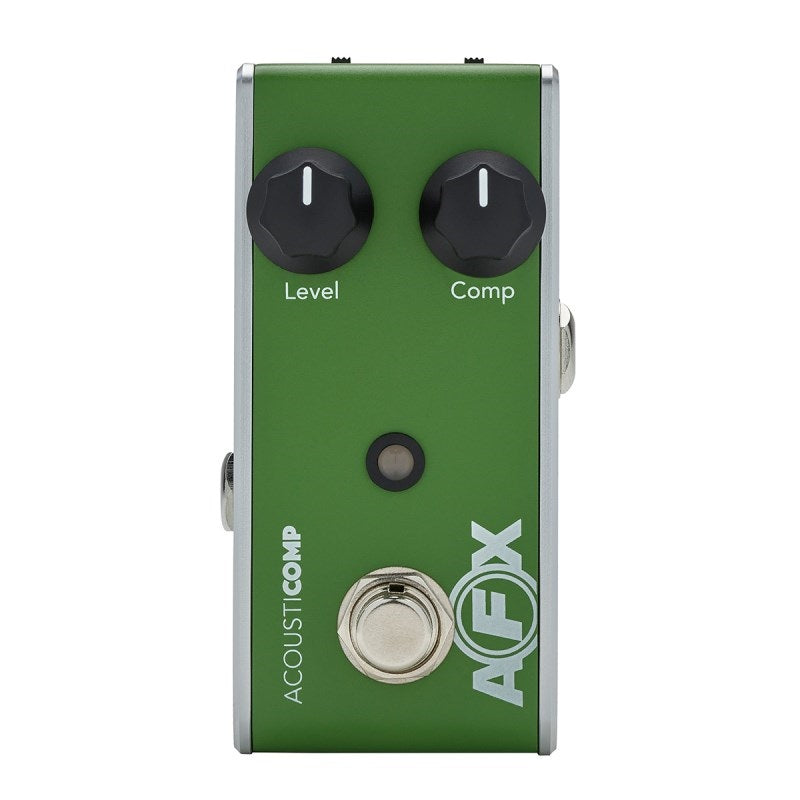

・COMP
Rotate this control to adjust the compression level from off to full.

・LEVEL
The Level control adjusts the effect level and balances it with the Bypass volume. Use it to increase or decrease the gain while the effect is running.

・TRUE BYPASS
In true bypass, the pedal's electronics are literally removed from the signal chain. For those who prefer buffered bypass, the AFX Mini effects pedal is switchable.

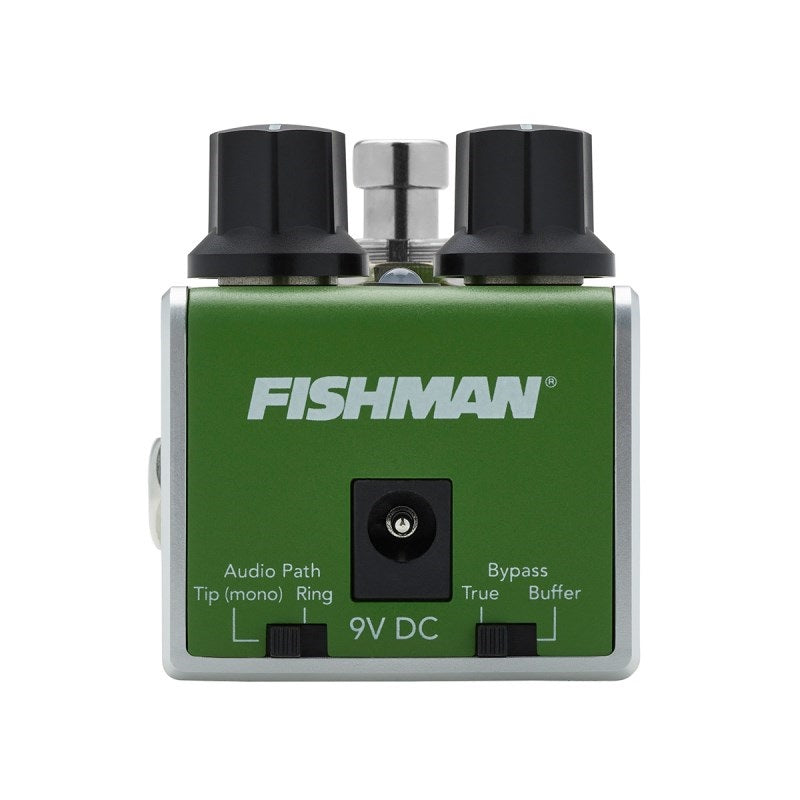

・AUDIO PATH SWITCH
The AFX Mini allows you to select the audio path that a particular effect is processed through, and you do this by toggling the Audio Path switch on the front of the pedal.

DC Power Supply: To pack so much functionality into such a small stompbox, the AFX Mini requires an external power supply. To ensure the above specifications, be sure to use a Fishman 910-R (120VAC) or 910-U (230VAC) power adapter.

■Specifications Model number: PRO-AFX-CM2
Audio I/O: 1/4" TRS inputs and outputs (TRS enables dual path functionality)
DSP: 32-bit processing Bypass: True bypass with buffered bypass option Dimensions: 1.9" W x 3.8" D x 1.92" H (49mm W x 97mm D x 49mm H)
Material: Durable aluminum housing. Current Draw: 53mA, typical. Power Supply: 910-R AC adapter (sold separately) or appropriately filtered and tuned 5.5mm OD x 2.1mm ID barrel connector, center negative. Analog Signal Path: Input Impedance: 10M Ohms | Output Impedance: 1kΩ | Signal-to-Noise Ratio: -100dB | Dynamic Range: 100dB
Digital Signal Path: A/D, D/A Conversion: 24-bit | Signal Processing: 32-bit
