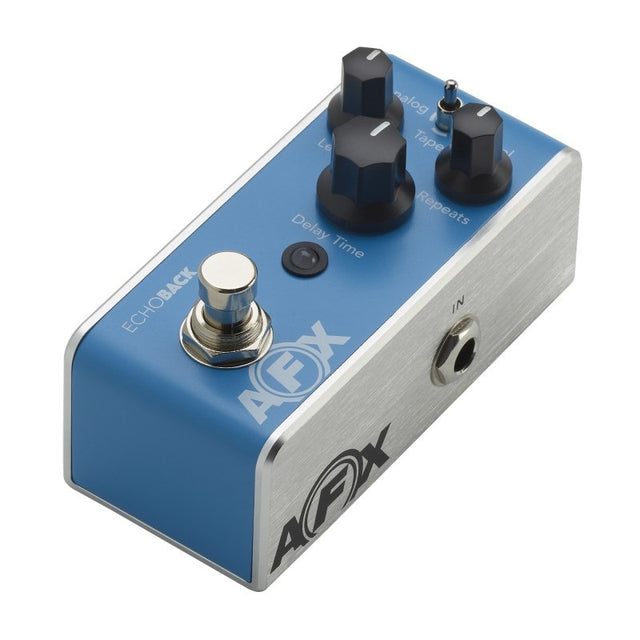

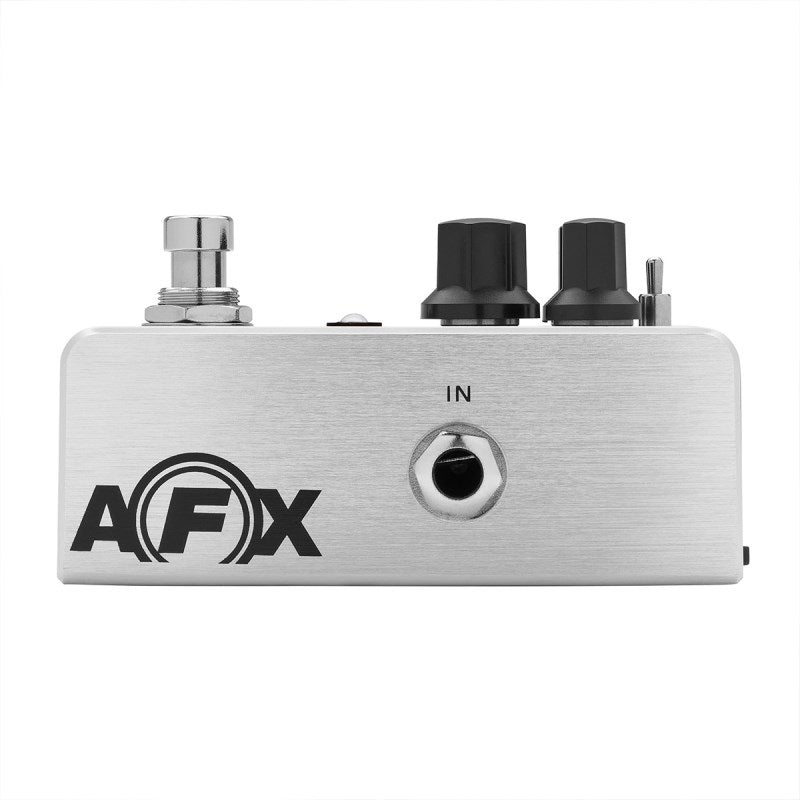

FISHMAN Fishman AFX ECHOBACK MINI DELAY PEDAL [PRO-AFX-DL2]

A simple yet feature-rich delay with tap tempo that adds tone and texture without completely coloring your sound.


Analog, digital, and tape delay effects True bypass with buffered bypass option Intuitive delay time, repeat, and level controls Innovative dual-path routing Ultra-compact design fits almost anywhere Requires 9V external power (powered by adapter or power supply, sold separately)


Voice three basic delay types—analog, digital, and tape—in one pedal, mixing them in parallel to impart new acoustic rhythms without compromising tone. Creating echo and delay effects has never been easier. Turn the Delay knob or tap the tempo to get the rhythm and feel of the moment. Varying the delay time creates transient pitch effects, just like the original that inspired this version. The "Repeats" control sets the number of echoes heard, while the "Level" knob blends the delay with the signal, rather than above it. Feel free to dial it up for wild effects.


? ANALOG
Designed to recreate the warm, rich character of the legendary bucket brigade delay of the 80s, turning up the Feedback control will hear the high frequencies of your echoes drop, but your acoustic tone will remain unaffected.

?DIGITAL
A practical echo maker with clear, distinct repeats.

?TAPE
We were inspired by the classic echo created by recording sound to tape and playing it back, and we hope you are too.



■ECHOBACK USER GUIDE
・DELAY SELECT
A select switch gives you quick and easy access to three delay effects: Analog, Digital, and Tape. Each effect is inspired by popular delays and voiced to better complement a wide range of acoustic instrument sounds.

・TAP TEMPO
EchoBack lets you set the tempo by double-tapping the footswitch instead of turning the Delay Time knob. To do this, press and hold the footswitch for 2 seconds. The LED will turn green and the current tempo will flash. To set a new tempo, double-tap the footswitch. After 5 seconds, tap tempo will end.

・Delay Spillover
When you press the footswitch to bypass the effect and the LED is off, the delay continues to repeat naturally to avoid any sudden changes in sound. Note that delay spillover is only active when the Bypass switch is set to Buffer. To change this to full mute, press and hold the footswitch and apply pressure to the pedal. The LED will flash to confirm this change.

・DELAY TIME
Rotate this control to select a delay time from 0ms to 800ms.

・REPEATS
Use the Repeats control to set the number of echoes you hear.

・LEVEL
The level control mixes the delay in parallel, adding as much or as little echo as you need in addition to the direct sound.

・TRUE BYPASS
True bypass literally removes the pedal's electronics from the signal chain. For those who prefer buffered bypass, the AFX Mini effects pedal can be switched

・AUDIO PATH SWITCH
The AFX Mini allows you to select the audio path that a particular effect is processed through, and you do this by toggling the Audio Path switch on the front of the pedal.

DC Power Supply: To pack so much functionality into such a small stompbox, the AFX Mini requires an external power supply. To ensure the above specifications, be sure to use a Fishman 910-R (120VAC) or 910-U (230VAC) power adapter.

■Specifications Model number: PRO-AFX-DL2
Audio I/O: 1/4" TRS inputs and outputs (TRS enables dual path functionality)
DSP: 32-bit processing Bypass: True bypass with buffered bypass option Dimensions: 1.9" W x 3.8" D x 1.92" H (49mm W x 97mm D x 49mm H)
Material: Durable aluminum housing. Current Draw: 53mA, typical. Power Supply: 910-R AC adapter (sold separately) or appropriately filtered and tuned 5.5mm OD x 2.1mm ID barrel connector, center negative. Analog Signal Path: Input Impedance: 10M Ohms | Output Impedance: 1kΩ | Signal-to-Noise Ratio: -100dB | Dynamic Range: 100dB
Digital Signal Path: A/D, D/A Conversion: 24-bit | Signal Processing: 32-bit
