FISHMAN Fishman AFX Acoustic Mini Reverb Pedal [PRO-AFX-RV2]

Achieve the perfect tone and atmosphere with hall, plate, and spring reverb! This reverb pedal is perfect for acoustic musicians.


Hall, plate, and spring reverb types; True bypass with buffered bypass option; Intuitive decay time, tone, and level controls; Innovative dual-path routing; Ultra-compact design fits almost anywhere; Requires 9V external power (powered by adapter or power supply, sold separately)


Three high-quality reverbs—hall, plate, and spring—blend in parallel with the direct sound while maintaining an acoustic tone. The Reverb Time knob controls how long the effect is heard, ranging from short to very large spaces. The Tone knob only affects the reverb, not the direct sound. Similarly, the Level knob adds the effect to the signal chain without overpowering the instrument's sound.

Three reverbs designed for acoustic guitar: SPRING
Recreates the classic sound of spring-type reverbs found in many electric guitar amplifiers.
・HALL
A versatile reverb with a natural resonant space and long reverb decay time, it can recreate rooms of all sizes.
・PLATE
Recreates the dense reflections and metallic character of mechanical plate reverbs used throughout the 50s, 60s, and 70s.



■ACOUSTIVERB USER GUIDE

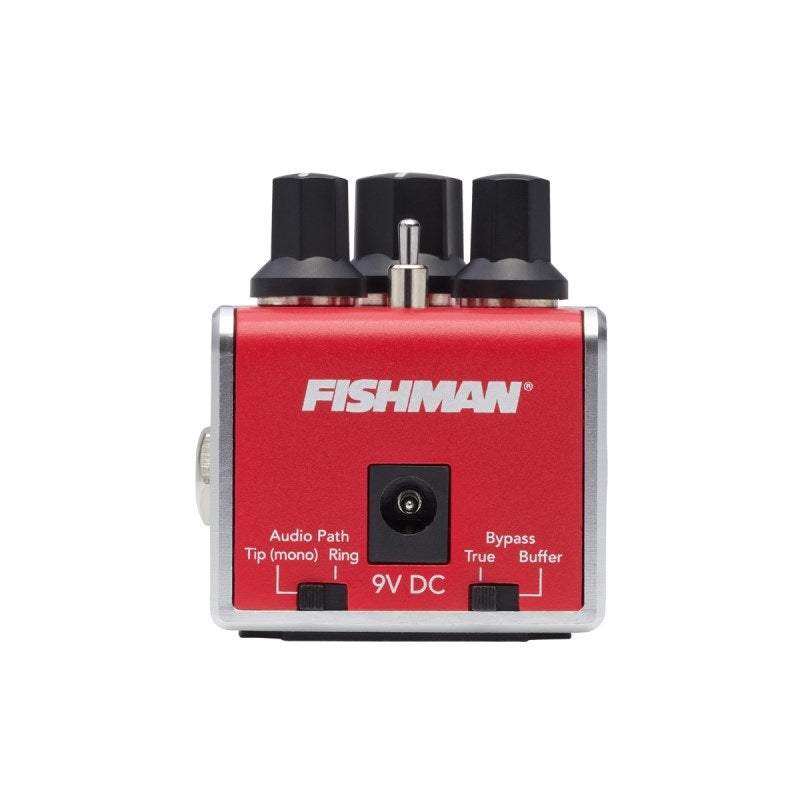

・Audio path switch
The AFX Mini allows you to select the audio path that a particular effect is processed through, and you do this by toggling the Audio Path switch on the front of the pedal.

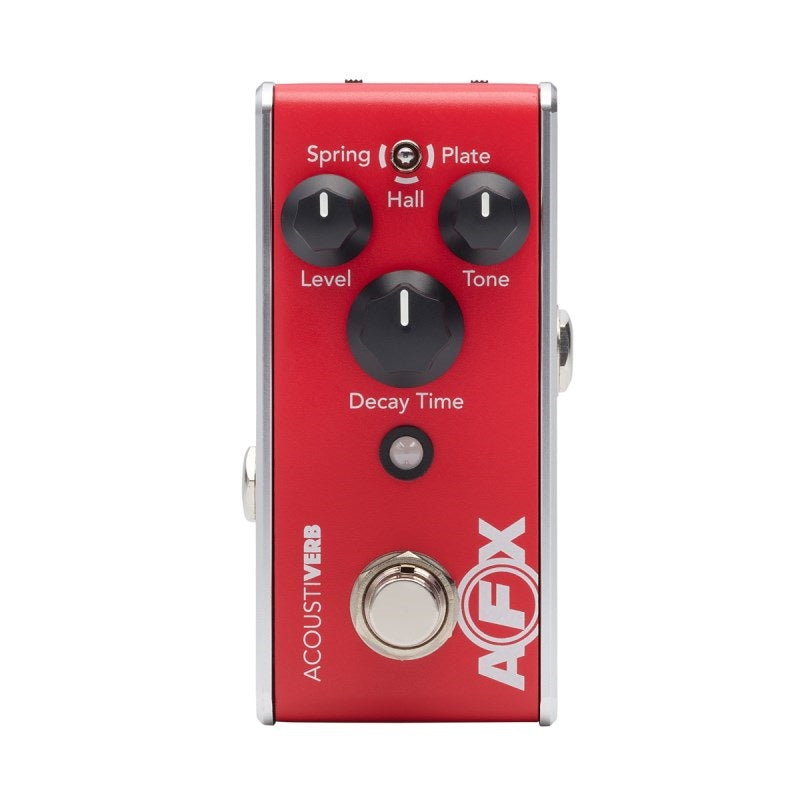

- The Reverb Select selection switch gives you quick and easy access to three popular reverb effects: Spring, Hall, and Plate.

When you press the Reverb Spillover footswitch to bypass the effect and the LED is off, the reverb continues to decay naturally to avoid any sudden changes in sound. Note that reverb spillover is only active when the Bypass switch is set to Buffered. To change this to full mute, press and hold the footswitch and apply pressure to the pedal. The LED will flash to confirm this change.

・LEVEL
The Level control mixes the reverb in parallel, adding as much reverb as you need in addition to the direct sound.

・TONE
The Tone control allows you to add brightness or warmth to the effect sound without altering the direct sound.

・DECAY TIME
This determines how quickly the reverb tail decays to silence.

・TRUE BYPASS
True bypass literally removes the pedal's electronics from the signal chain. For those who prefer buffered bypass, the AFX Mini effects pedal can be switched

DC Power Supply: To pack so much functionality into such a small stompbox, the AFX Mini requires an external power supply. To ensure the above specifications, be sure to use a Fishman 910-R (120VAC) or 910-U (230VAC) power adapter.

■Specifications Model number: PROAFX-RV2

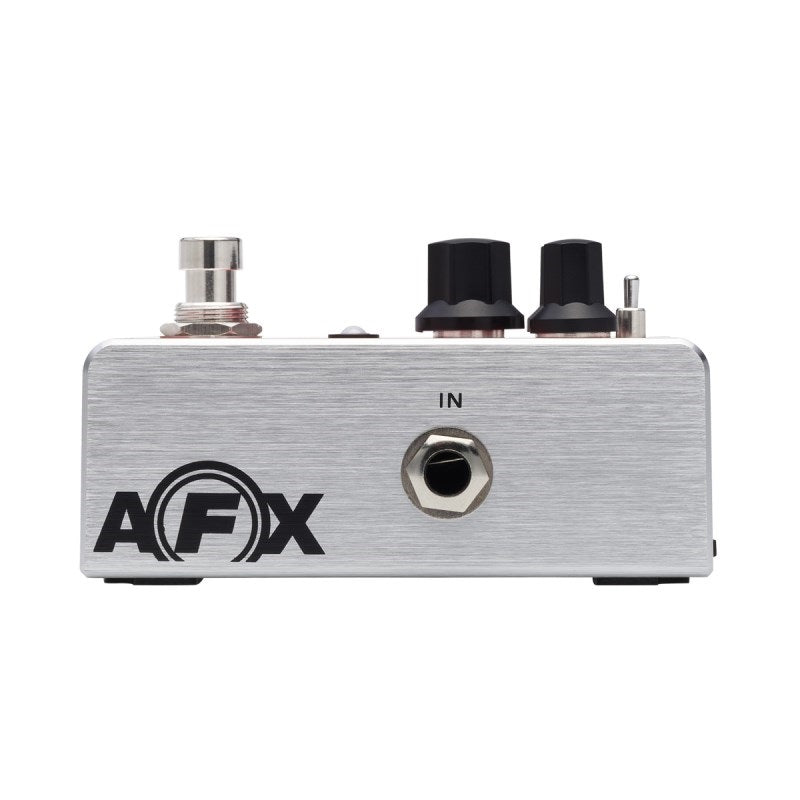

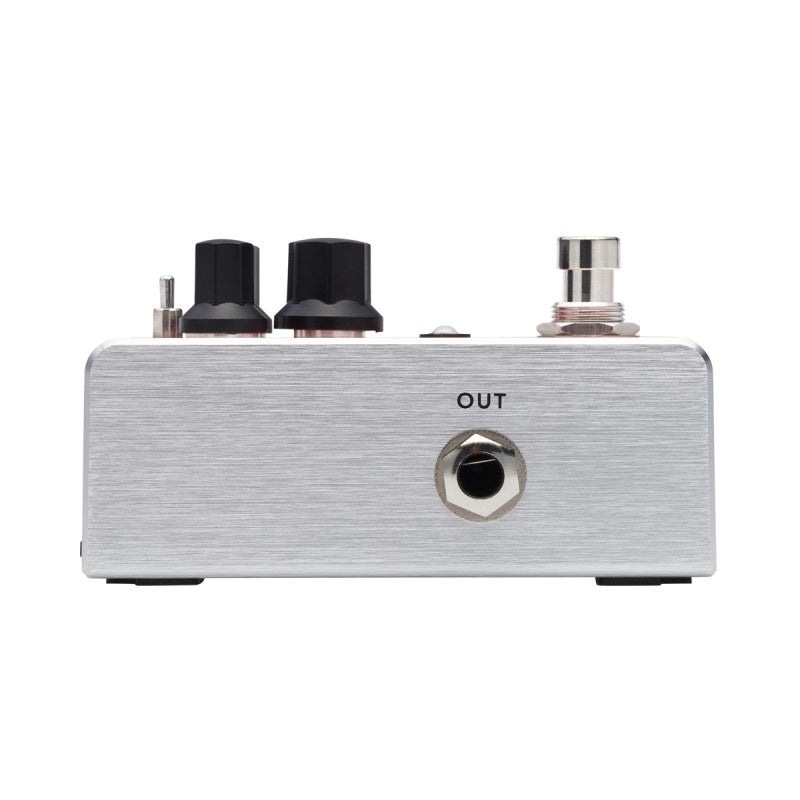

Audio I/O: 1/4" TRS inputs and outputs (TRS enables dual path functionality)
DSP: 32-bit processing Bypass: True bypass with buffered bypass option Dimensions: 1.9" W x 3.8" D x 1.92" H (49mm W x 97mm D x 49mm H)
Material: Durable aluminum housing. Current Draw: 53mA, typical. Power Supply: 910-R AC adapter (sold separately) or appropriately filtered and tuned 5.5mm OD x 2.1mm ID barrel connector, center negative. Analog Signal Path: Input Impedance: 10M Ohms | Output Impedance: 1kΩ | Signal-to-Noise Ratio: -100dB | Dynamic Range: 100dB
Digital Signal Path: A/D, D/A Conversion: 24-bit | Signal Processing: 32-bit
