MOTU UltraLite mk5 (USB Audio Interface) (USB-C) (Max. 18-Channel Input, 22-Channel Output) (DTM)

★5th generation UltraLite interface with outstanding sound quality and flexible inputs and outputs

Ultra-low latency and exceptional sound
The UltraLite-mk5 is a flexible, mobile USB 2.0 audio interface that combines ultra-low latency and superior analog audio quality at sample rates up to 192 kHz.
Equipped with all the necessary inputs and outputs, including two combo XLR/TRS, a line/Hi-Z guitar input, six line-level analog inputs, ten analog outputs, eight channels of optical digital I/O, S/PDIF digital, and a headphone output, this compact unit covers all the input and output systems you need, making it useful in a variety of situations.

●Perfect for both studio and stage use
The UltraLite-mk5 packs its features into a compact, rugged enclosure that you can take anywhere, and is perfect for the studio or stage, with or without a computer.
In addition to its use as an audio interface, the UltraLite-mk5 can also be used as a standalone mixer, providing 18 inputs and 22 outputs, giving you a total of 40 I/O channels on-site.

All the I/O you need
It connects to all the audio equipment you need for production, including speakers, headphones, microphones, guitars, synthesizers, keyboards, drum machines, effects processors, consumer optical devices and MIDI gear.

●Onboard Mixing: Record, monitor, route, and process all live inputs using the onboard multi-bus mixer with built-in DSP processing.
The latency due to internal processing is significantly shorter than that of native DAW processing, so it does not put a strain on your computer's processor and ensures smooth performance.

●DSP-processed effects: It is possible to apply the UltraLite mk5's own hardware DSP-driven effect processing, such as reverb, EQ, and compression, to the internal mix, independent of the host computer.

●Advanced extra channels other than physical ports: A ``loopback'' channel can be used via USB on your computer, allowing you to mix input and computer output for live streaming or podcasting.

●Mobile recording and mixing The UltraLite-mk5 has an internal mixer with functionality equivalent to that of a studio console and a wide range of input and output systems, so it can be fully functional even when used with a DAW installed on a laptop, meeting the needs of mobile recording and live mixing.

From the studio to the stage, the UltraLite-mk5 delivers exceptional sound quality, cutting-edge handling, and rock-solid performance, all backed by MOTU's renowned stable drivers.

■Features◎USB audio interface with up to 18x22 I/O and DSP performance for internal mixing and effects processing◎Superior analog audio performance delivered by ESS Sabre 32Ultra DAC technology◎Ultra-low latency for host software processing◎High-resolution OLED display on the front panel for precise metering of all analog I/O signals◎Two combo inputs supporting mic, line, and Hi-Z◎Individual preamp gain settings and 48V phantom power settings for each mic input◎Mic input -129dB EIN
10 balanced, DC-coupled 1/4" TRS analog outputs with measured 125dB dynamic range. Hardware (direct) monitor mixing for each analog output pair (6 mix buses).
Six balanced 1/4-inch TRS analog inputs with 120dB dynamic range. One optical digital input and one optical digital output (configurable as either 8-channel optical or 2-channel stereo TOS-Link).
RCA S/PDIF Digital I/O
1 x headphone output (powered by an ESS converter) with independent volume control
◎5-pin MIDI in/out ◎Supports sample rates from 44.1 to 192 kHz ◎USB class compliant for Mac, ready to use (no drivers required)
Windows driver with 2.4 ms round-trip latency (measured at 96 kHz with a 32 sample buffer)
◎Measured round-trip latency of 2.4ms at 96kHz sample rate. ◎Optional driver available for Mac. ◎iOS compatible (USB Audio Class compliant).
Loopback channels for capturing host outputs, live streaming, and podcasting. DSP-driven 22x6 monitor mixer with independent monitor mixes for each analog output pair.

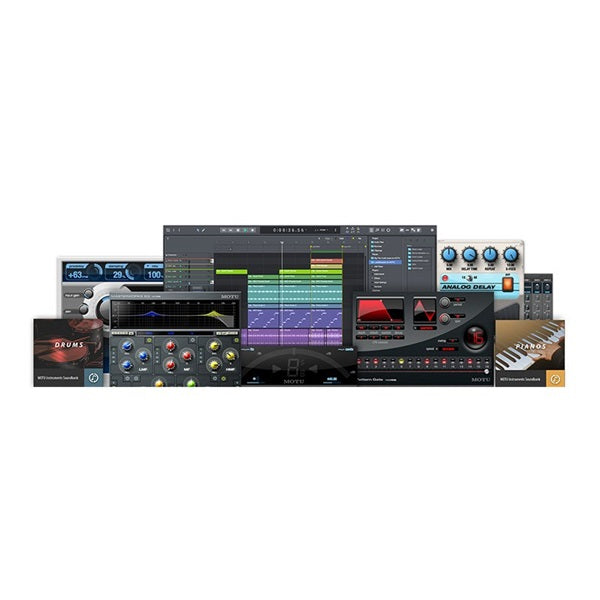

◎ Equipped with reverb, 4-band parametric EQ, and dynamics effects with internal DSP processing ◎ Sturdy steel housing ◎ New CueMix5 application provides mixing and control on Mac, PC, and iOS devices ◎ Includes a license for MOTU Performer Lite workstation software (download from your MOTU account: provided free of charge to purchasers)
Over 100 virtual instruments available for Performer Lite (available online)
Includes an industry-leading library of over 6GB of loops, samples, and one-shots (available online)

■Specifications◎Sample rates: 44.1, 48, 88.2, 96, 176.4, 192kHz
Mic/Line/Guitar Inputs: Two XLR/TRS combo jacks; Line/Instrument Input with 1MΩ impedance. Analog Outputs: Ten 1/4" TRS line outputs (balanced, DC-coupled).
◎Computer I/O
One USB-C 2.0 port. Can be connected to a USB Type-A port (using a conversion adapter).
MIDI I/O
・One MIDI In
・One MIDI Out
・16-channel MIDI signal input/output ◎Headphones: One 1/4TRS stereo phone jack ◎Phantom power: Two +48V phantom power supplies ◎Front panel ・Two XLR/TRS combo jack inputs ・One 1/4TRS headphone output ・One headphone/monitor volume ・Two microphone/instrument input volumes ・Four switches (2 x 48V switches, 2 x Pad switches)
One high-resolution OLED display. Power supply: 12-18V external DC power supply. Dimensions: 22 x 17.5 x 4.5 cm.
・1.31kg
◎Included software: CueMix 5
MOTU Performer Lite
6GB of loops and sounds from Big Fish Audio, LucidSamples, Loopmasters, and MOTU. Analog I/O.
Line Input: 1/4" TRS balanced, 120dB, -114dB (-0.0002%), TBD
Line Output: 1/4" TRS balanced, 125dB, -114dB (-0.0002%), TBD
Microphone Input: XLR balanced, 115dB, -129dBu EIN, TBD
Headphone Output: 1/4TRS stereo, 118dB, -110dB (-0.0003%), 14dBu

*Please check the latest operating environment on the manufacturer's website before purchasing.
