ESI | Product Code:
680455
Newly Added
ESI UGM192
Regular price
$162.00
Unit price
/
Unavailable
Shipping calculated at checkout.
Product Condition
| Brand New | Unused, as sold. |
|---|---|
| Mint | Like new, no flaws. |
| Excellent | Barely used, very minor wear. |
| Very Good | Light wear, fully functional. |
| Good | Visible wear, plays fine. |
| Fair | Heavy wear, still playable. |
Couldn't load pickup availability
ESI UGM192
Regular price
$162.00
Unit price
/
Unavailable
Description
Description
★A must-have for guitarists: a compact, palm-sized mobile interface
The ESI UGM192 is a mobile USB 3.1 audio interface ideal for microphone and guitar recording. Its pocket-sized design delivers high-end performance with USB 3.1 Type-C connectivity and 24-bit/192kHz audio. The front panel features a professional-grade microphone input and Hi-Z (instrument) input with phantom power support. Connect audio signals from condenser microphones and electric guitars to PCs, Macs, or mobile devices like smartphones and tablets that support USB audio.

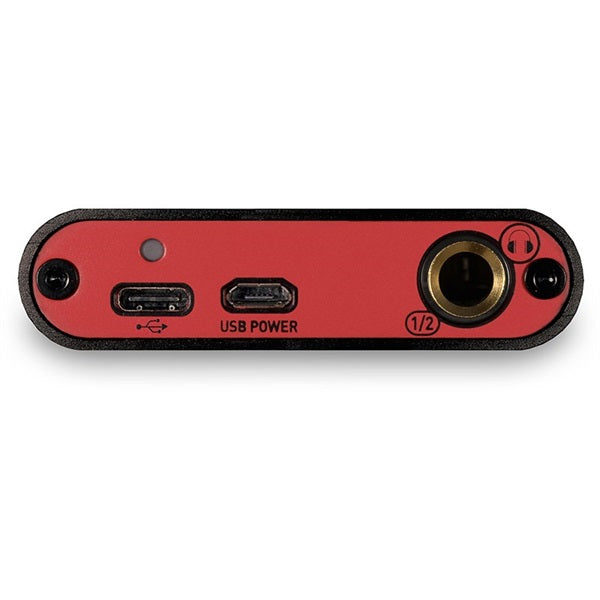

The rear panel of the unit features a line/headphone output, allowing for real-time (zero latency) monitoring via headphones, as well as the ability to connect studio monitors. An optional USB power connector is also provided, allowing for power supply via USB battery, making recording on the go or outdoors a breeze. The unit also features ESI's proprietary DirectWire (Windows only) function, which allows for flexible audio routing within a computer, enabling loopback recording within the computer.
Input/Output Terminals: Hi-Z (high impedance) input terminal (1/4" TS terminal)
-Monitor switch (Mono/Stereo/OFF)
Microphone gain switch (+20dB / +30dB / 0dB input gain increase switch)
+48V phantom power switch Microphone input (1/4" TRS connector, see image for pinout)
USB port (USB 3.1, Type-C, and USB 2.0 compatible) The LED above lights up when the device is in operation. Optional external USB power port (connect an external USB power source such as a mobile battery if the USB bus power supplied to the microUSB/USB-C port on the 6 is insufficient. This port is for power supply only and is not used for sending or receiving audio signals.)
- Headphone jack and line output jack (1/4" TRS unbalanced stereo jack)
Includes inTone 2 ESI Edition by Audified
The UGM192 comes with the inTone 2 ESI Edition by Audified, a powerful jamming tool with audio playback, recording, and mixing capabilities, and numerous guitar and bass effects. It's ideal for guitar practice, recording, and even as a powerful effects processor for onstage use, supporting guitarists and bassists.
■Main features◎USB 3.1 audio interface◎USB 2.0 compatible◎USB bus-powered◎Dedicated USB power supply terminal (microUSB) for connecting optional mobile batteries, etc.
◎Balanced 1/4" TRS microphone input with professional microphone preamp ◎48V phantom power ◎High-impedance (Hi-Z) 1/4" TS input jack ◎1/4" TRS stereo line output jack that doubles as a headphone jack ◎1/4" TRS stereo line output jack that doubles as a headphone jack ◎DA/AD converter with 114dB dynamic range, 24-bit/192kHz support ◎Compatible with Windows 7-10, macOS 10.9 and later, and iOS ◎EWDM driver (Windows: ASIO 2.0, MME, WDM, DirectSound - 32/64bit)
◎Compatible with macOS Core Audio (32/64bit)
DirectWIRE output channel routing with loopback function (Windows)

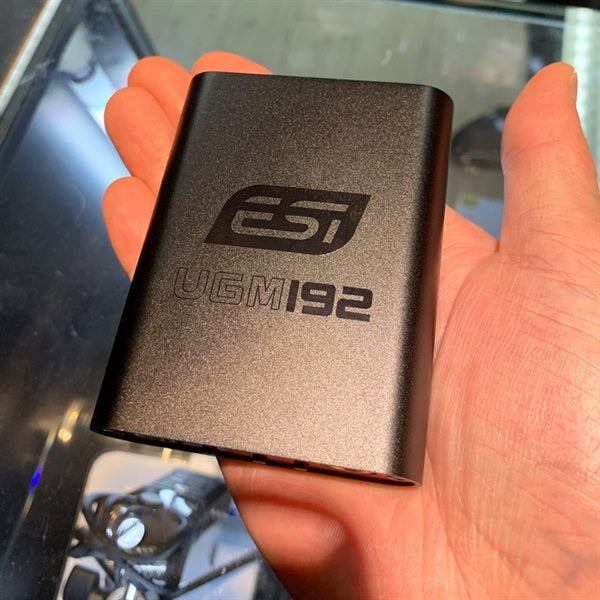

◎Compact and easy to carry size: approx. 87mm x 67mm x 17mm
■Specifications◎Interface
USB 3.1 audio interface (USB-C terminal and Type-C cable included)
USB 2.0 compatible (USB Type-A to C cable included)
USB bus powered option USB power supply terminal (microUSB)
◎Microphone preamplifier
TRS balanced 1/4" x 1
48V phantom power Maximum input level: -8.6dBu
+10dB/+20dB gain options Impedance: 2.2kΩ
◎HI-Z instrument input
TS unbalanced 1/4" x 1
Maximum input level: -8.4dBu
Impedance: 500kΩ
AD converter
24bit/192kHz
Dynamic range: 114dB (A-weighted)
THD+N: -100dB (@-1dBFS)
◎Line/headphone output
1 x TRS 1/4 stereo
Maximum output level: +6.4dBu (@-0dBFS)
THD+N: 0.0024% A-weighted (@ fs=48kHz)
Impedance: 32 to 600 ohms
◎DA converter
24bit/192kHz
Dynamic range: 114dB (A-weighted)
THD+N: -100dB (@ -0dBFS)
◎Other
DirectWIRE output channel routing support (Windows)
DirectWIRE loopback function (Windows)
◎System requirements
Windows 7-10 / ASIO 2.0, MME, WDM, DirectSound
macOS 10.9 or later / No CoreAudio driver required
iOS/iPad OS
◎Size and weight: Approximately 87mm x 67mm x 17mm
Approximately 100g
*Please check the latest operating environment on the manufacturer's website before purchasing.
The ESI UGM192 is a mobile USB 3.1 audio interface ideal for microphone and guitar recording. Its pocket-sized design delivers high-end performance with USB 3.1 Type-C connectivity and 24-bit/192kHz audio. The front panel features a professional-grade microphone input and Hi-Z (instrument) input with phantom power support. Connect audio signals from condenser microphones and electric guitars to PCs, Macs, or mobile devices like smartphones and tablets that support USB audio.
The rear panel of the unit features a line/headphone output, allowing for real-time (zero latency) monitoring via headphones, as well as the ability to connect studio monitors. An optional USB power connector is also provided, allowing for power supply via USB battery, making recording on the go or outdoors a breeze. The unit also features ESI's proprietary DirectWire (Windows only) function, which allows for flexible audio routing within a computer, enabling loopback recording within the computer.
Input/Output Terminals: Hi-Z (high impedance) input terminal (1/4" TS terminal)
-Monitor switch (Mono/Stereo/OFF)
Microphone gain switch (+20dB / +30dB / 0dB input gain increase switch)

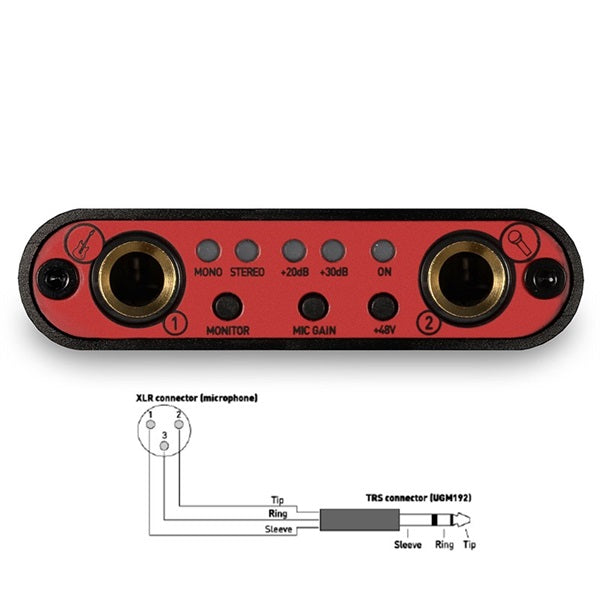

+48V phantom power switch Microphone input (1/4" TRS connector, see image for pinout)
USB port (USB 3.1, Type-C, and USB 2.0 compatible) The LED above lights up when the device is in operation. Optional external USB power port (connect an external USB power source such as a mobile battery if the USB bus power supplied to the microUSB/USB-C port on the 6 is insufficient. This port is for power supply only and is not used for sending or receiving audio signals.)
- Headphone jack and line output jack (1/4" TRS unbalanced stereo jack)
Includes inTone 2 ESI Edition by Audified
The UGM192 comes with the inTone 2 ESI Edition by Audified, a powerful jamming tool with audio playback, recording, and mixing capabilities, and numerous guitar and bass effects. It's ideal for guitar practice, recording, and even as a powerful effects processor for onstage use, supporting guitarists and bassists.
■Main features◎USB 3.1 audio interface◎USB 2.0 compatible◎USB bus-powered◎Dedicated USB power supply terminal (microUSB) for connecting optional mobile batteries, etc.
◎Balanced 1/4" TRS microphone input with professional microphone preamp ◎48V phantom power ◎High-impedance (Hi-Z) 1/4" TS input jack ◎1/4" TRS stereo line output jack that doubles as a headphone jack ◎1/4" TRS stereo line output jack that doubles as a headphone jack ◎DA/AD converter with 114dB dynamic range, 24-bit/192kHz support ◎Compatible with Windows 7-10, macOS 10.9 and later, and iOS ◎EWDM driver (Windows: ASIO 2.0, MME, WDM, DirectSound - 32/64bit)
◎Compatible with macOS Core Audio (32/64bit)
DirectWIRE output channel routing with loopback function (Windows)
◎Compact and easy to carry size: approx. 87mm x 67mm x 17mm
■Specifications◎Interface
USB 3.1 audio interface (USB-C terminal and Type-C cable included)
USB 2.0 compatible (USB Type-A to C cable included)
USB bus powered option USB power supply terminal (microUSB)
◎Microphone preamplifier
TRS balanced 1/4" x 1
48V phantom power Maximum input level: -8.6dBu
+10dB/+20dB gain options Impedance: 2.2kΩ
◎HI-Z instrument input
TS unbalanced 1/4" x 1
Maximum input level: -8.4dBu
Impedance: 500kΩ
AD converter
24bit/192kHz
Dynamic range: 114dB (A-weighted)
THD+N: -100dB (@-1dBFS)
◎Line/headphone output
1 x TRS 1/4 stereo
Maximum output level: +6.4dBu (@-0dBFS)
THD+N: 0.0024% A-weighted (@ fs=48kHz)
Impedance: 32 to 600 ohms
◎DA converter
24bit/192kHz
Dynamic range: 114dB (A-weighted)
THD+N: -100dB (@ -0dBFS)
◎Other
DirectWIRE output channel routing support (Windows)
DirectWIRE loopback function (Windows)
◎System requirements
Windows 7-10 / ASIO 2.0, MME, WDM, DirectSound
macOS 10.9 or later / No CoreAudio driver required
iOS/iPad OS
◎Size and weight: Approximately 87mm x 67mm x 17mm
Approximately 100g
*Please check the latest operating environment on the manufacturer's website before purchasing.
