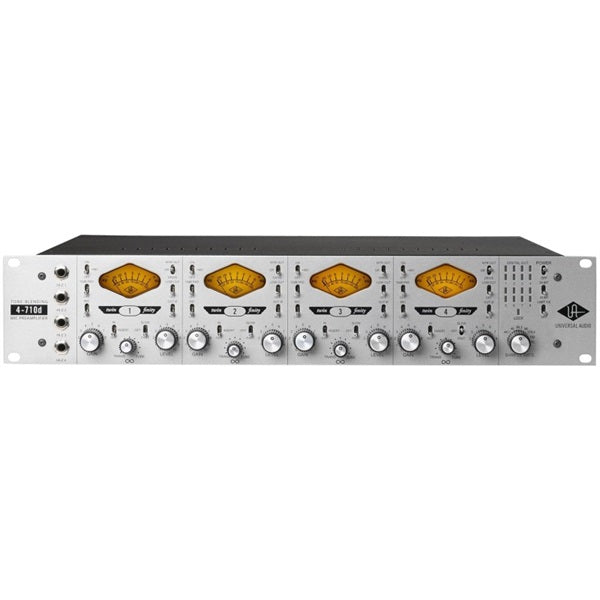

Universal Audio Universal Audio 4-710D (Vacuum Tube/Solid State Blend 4-Channel Preamp) (Official Japanese Product)
Regular price
$2,292.00
Unit price
/
Unavailable
Shipping calculated at checkout.
Product Condition
| Brand New | Unused, as sold. |
|---|---|
| Mint | Like new, no flaws. |
| Excellent | Barely used, very minor wear. |
| Very Good | Light wear, fully functional. |
| Good | Visible wear, plays fine. |
| Fair | Heavy wear, still playable. |
Couldn't load pickup availability
Universal Audio Universal Audio 4-710D (Vacuum Tube/Solid State Ble...
Regular price
$2,292.00
Unit price
/
Unavailable
Description
Description
The already popular TWIN-FINITY, a mic preamp/DI featuring both tube and solid-state circuits and tone blending, is now available in a 4-channel version, with 1176-style dynamics compression,
It is also a front-end device with AD functionality that supports up to 192KHz, making it ideal for recording any source.
This model is also well-suited for modern digital recording environments, and is a completely new type of product that combines Universal Audio's classic design with modern, innovative technology.
■Product Details◆Preamplifier: Equipped with the 710 Twin-Finity mic/line preamp, which has won four TEC awards
Dual-path 285-volt Class A tube/transimpedance solid-state preamp
Phase-coherent tube and solid-state tone blending for a wide range of sounds from creamy to crunchy
-Equipped with a newly designed 1176-style compression circuit for each preamp channel
Ultra-high impedance (2.2MΩ) discrete JFET DI
Backlit VU meters for output and input drive, gain level, and gain reduction
Balanced send/return insert (half-normal wiring)
・48V phantom power
- 75 Hz low-cut filter
・Phase inversion switch
・Mono balance out
AD converter: 8 channels of high-quality 24-bit AD conversion
-Selectable sampling rate up to 192kHz
ADAT optical output, AES/EBU DB-25 connector
- 8-channel soft limiter (all channels switchable)
- Ultra-low jitter clock subsystem
Clip/hold LED indicator
75Ω BNC Word Clock I/O
◆Others ・Anti-pop protection digital output when powered on
・Universal power supply
-High durability with heavy metal body, 2U rack size
■Product specifications
Mic/Line Input/Output Section:
Microphone input impedance: 2KΩ
Line input impedance: 10KΩ
Hi-Z Impedance: 2.2MΩ
Internal output impedance: 600Ω
Gain range (unit): -Infinity to 70dBu
- Microphone gain range: 10 to 60 dBu
Line Gain Range: 10 to 40 dBu Pad: -15 dB
Low-cut filter: 75Hz/-23dB
・Vacuum tube: 12AX7
- Phantom power: 48V
◆AD Department:
Internal clock: 44.1, 48, 88.2, 96, 176.4, 192 kHz
External Word Clock Input: 44.1, 48, 88.2, 96, 176.4, 192 kHz
AD: 44.1-192kHz 24bit/16bit (dithered)
AES/EBU Output: 8 channels, DB-25 connector, single wire
・ADAT output: 2 systems
・44.1 to 48Khz = Port 1, Port 2 (same signal output)
・88.2～96Khz (S/MUX): Port 1 = channel 1-4, Port 2 = channel 5-8
・176.4~192kHz (S/MUX): Port 1 = channel 1-2, Port 2 = channel 3-4
◆Mechanical & Power:
・Maximum power consumption: 160mA@120VAC 20W
・Operating power supply: 100 to 240VAC
◆Size:
Dimensions: 48.2 x 8.9 x 30.5 (W x H x D) cm
・Weight: 5.2kg
It is also a front-end device with AD functionality that supports up to 192KHz, making it ideal for recording any source.
This model is also well-suited for modern digital recording environments, and is a completely new type of product that combines Universal Audio's classic design with modern, innovative technology.
■Product Details◆Preamplifier: Equipped with the 710 Twin-Finity mic/line preamp, which has won four TEC awards
Dual-path 285-volt Class A tube/transimpedance solid-state preamp
Phase-coherent tube and solid-state tone blending for a wide range of sounds from creamy to crunchy
-Equipped with a newly designed 1176-style compression circuit for each preamp channel
Ultra-high impedance (2.2MΩ) discrete JFET DI
Backlit VU meters for output and input drive, gain level, and gain reduction
Balanced send/return insert (half-normal wiring)
・48V phantom power
- 75 Hz low-cut filter
・Phase inversion switch
・Mono balance out
AD converter: 8 channels of high-quality 24-bit AD conversion
-Selectable sampling rate up to 192kHz
ADAT optical output, AES/EBU DB-25 connector
- 8-channel soft limiter (all channels switchable)
- Ultra-low jitter clock subsystem
Clip/hold LED indicator
75Ω BNC Word Clock I/O
◆Others ・Anti-pop protection digital output when powered on
・Universal power supply
-High durability with heavy metal body, 2U rack size
■Product specifications
Mic/Line Input/Output Section:
Microphone input impedance: 2KΩ
Line input impedance: 10KΩ
Hi-Z Impedance: 2.2MΩ
Internal output impedance: 600Ω
Gain range (unit): -Infinity to 70dBu
- Microphone gain range: 10 to 60 dBu
Line Gain Range: 10 to 40 dBu Pad: -15 dB
Low-cut filter: 75Hz/-23dB
・Vacuum tube: 12AX7
- Phantom power: 48V
◆AD Department:
Internal clock: 44.1, 48, 88.2, 96, 176.4, 192 kHz
External Word Clock Input: 44.1, 48, 88.2, 96, 176.4, 192 kHz
AD: 44.1-192kHz 24bit/16bit (dithered)
AES/EBU Output: 8 channels, DB-25 connector, single wire
・ADAT output: 2 systems
・44.1 to 48Khz = Port 1, Port 2 (same signal output)
・88.2～96Khz (S/MUX): Port 1 = channel 1-4, Port 2 = channel 5-8
・176.4~192kHz (S/MUX): Port 1 = channel 1-2, Port 2 = channel 3-4
◆Mechanical & Power:
・Maximum power consumption: 160mA@120VAC 20W
・Operating power supply: 100 to 240VAC
◆Size:
Dimensions: 48.2 x 8.9 x 30.5 (W x H x D) cm
・Weight: 5.2kg
