Drums | Electronic Drum | Electronic drum body
Used | Condition: Very Good

YAMAHA | Product Code: 786555

YAMAHA Used EAD10 [Electronic Acoustic Drum Module]

Name: YAMAHA Used EAD10 [Electronic Acoustic Drum Module]
Brand: YAMAHA
SKU: 786555
Price: 266.00 USD
Availability: OutOfStock

$266.00

Shipping calculated at checkout.

Product Condition

Brand New	Unused, as sold.
Mint	Like new, no flaws.
Excellent	Barely used, very minor wear.
Very Good	Light wear, fully functional.
Good	Visible wear, plays fine.
Fair	Heavy wear, still playable.

Product Inquiry

Description

We have a used EAD10 in stock, a super popular item that allows you to easily record your drum set! It's in excellent condition!

The EAD10 consists of a main unit (sound generator) and a sensor unit that combines a microphone and trigger. By attaching the sensor unit to the bass drum hoop, it is possible to capture high-quality acoustic drum sounds and process the tone by adding effects, etc. In addition, by using the iOS app, you can easily record high-quality performance videos, easily edit them, and upload them to video sharing sites.

1. Easy setup for professional miking
The EAD10's sensor unit consists of an XY-type stereo condenser microphone and trigger unit that have been specially tuned by Yamaha engineers. By attaching it to the top of the bass drum hoop on the striking side (as shown in the attached photo), you can monitor the sound of the entire drum set with natural balance and positioning in high quality.

2. Monitor/record high-quality acoustic drum sounds
The drum sound picked up by the EAD10's sensor unit can be clearly monitored through headphones, or recorded to the main unit's internal memory or USB memory for playback. An AUX jack is also provided, allowing you to connect a portable music player, etc., and simultaneously monitor the player's playback sound and the high-quality miked sound while you perform.

3. A variety of effect sounds that expand the possibilities for drummers
The EAD10 lets you customize your drum sounds by applying your favorite effects to the audio signal captured by the sensor unit's microphone. It also captures trigger signals from the sensor unit's trigger, allowing you to add trigger sounds to your bass drum hits. The EAD10 main unit features over 30 effects, including reverb and delay, and over 750 trigger sounds. In addition to combining these effects into 50 preset scenes, you can also customize and save 200 of your own scenes. Adding a variety of sounds to your acoustic drums expands the expressive potential of your drumming. It also offers excellent expandability by incorporating optional drum triggers and electronic drum DTX pads.

4. High scalability thanks to integration with the free iOS app "Rec'n'Share"
The iOS app "Rec'n'Share" is included. Simply select your favorite song from your library and the app will detect the tempo and add a click. It also features tempo change and repeat playback, providing powerful support for drum practice.
Additionally, by using the app to shoot videos on an iOS device, you can easily create high-quality performance videos using audio captured by the EAD10, and you can even mix, edit, and upload videos all within the app.

- This application is used by connecting your iOS device and the EAD10 main unit with a USB cable. You can use Apple's Lightning-USB Camera Adapter to connect your iOS device to the USB cable.
"Rec'n'Share can be downloaded for free from the Apple App Store.
・Apple is a registered trademark of Apple Inc. in the United States and other countries. The iOS trademark is used under license from Cisco in the U.S. App Store is a service mark of Apple Inc.

[Main unit]

[Number of Scenes] Preset: 50 User: 200
[Number of reverb types] 11
[Number of effect types] Microphone: 21, Trigger: 10
[Trigger Tone] Sound Source: AWM2, Maximum Polyphony: 64, Number of Voices: 757
[Recorder] Recording time: Approximately 1 minute 30 seconds on built-in memory, approximately 30 minutes per file on USB flash memory. Recording/playback format: WAV (44.1kHz, 16-bit, stereo)
[Wave] Number of waves that can be loaded: Maximum 100, Playback sampling rate: 44.1kHz, Wave memory: 32MB
Maximum sample size: 1 mono sample 1.75MB, 1 stereo sample 3.5MB, Sample format: WAV (16bit)
[Click] Tempo: 30-300 BPM, Tap tempo function, Beat (time signature): 1/4-16/4, 1/8-16/8, 1/16-16/16, Timing: Accent, quarter note, eighth note, sixteenth note, eighth note triplet
[Other features] Trigger sensitivity adjustment, USB audio/MIDI, headphone EQ
[Connections] Power: DC IN (12V), Headphones: PHONES (standard stereo phone jack), External Input: AUX IN (stereo mini jack), External Output: OUTPUT L/MONO, R (standard phone jack), USB: USB TO DEVICE, USB TO HOST, Sensor Input: Trigger Sensor A (standard stereo phone jack), Microphone Sensor B (standard stereo phone jack), Trigger Input: Stereo (L: trigger, R: trigger) ①KICK/② (also serves as A), ③SNARE/④ (standard stereo phone jack), 3 Zone (L: trigger, R: rim switch) ⑤, ⑥ (standard stereo phone jack), Pedal: FOOT SW (standard stereo phone jack)
Power Supply: PA-150B (or equivalent recommended by Yamaha), Power Consumption: 10W (when using PA-150B power adapter), Auto Power Off: Yes
[Size/Weight] Dimensions: Width x Depth x Height... 260(W) x 138(D) x 63(H) mm, Weight: Main unit only 654g

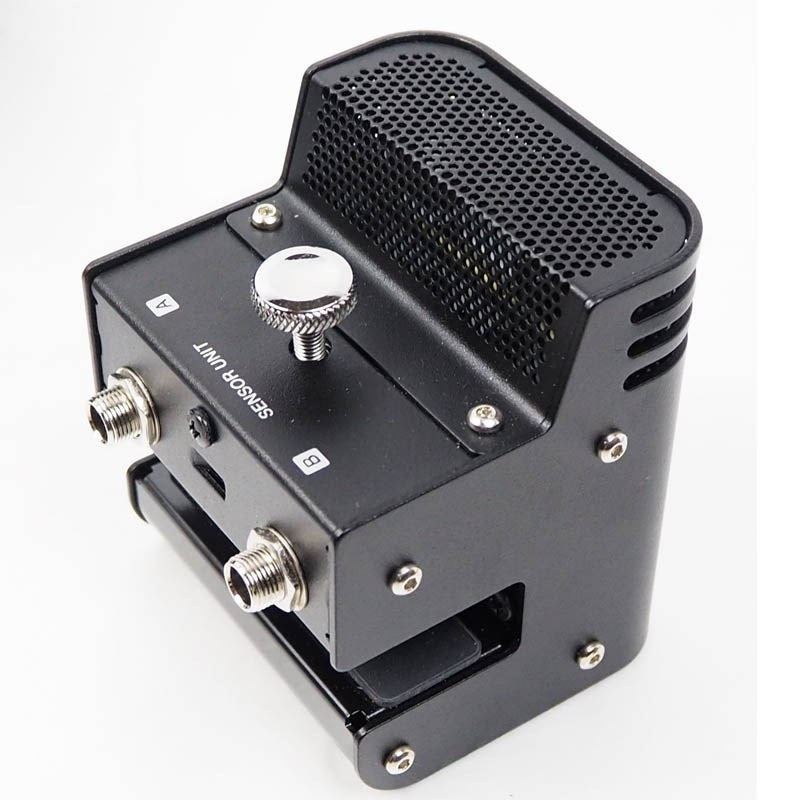

[Sensor unit]
[Sensing method] Microphone: High sound pressure resistant microphone x 2, Trigger: Dedicated bass drum x 1
[Connection terminals] Sensor output: A for trigger sensor (standard phone jack), B for microphone sensor (standard stereo phone jack)
[Size/Weight] Dimensions: Width x Depth x Height... 76(W) x 78(D) x 88(H) mm, Weight: Sensor unit only 464g

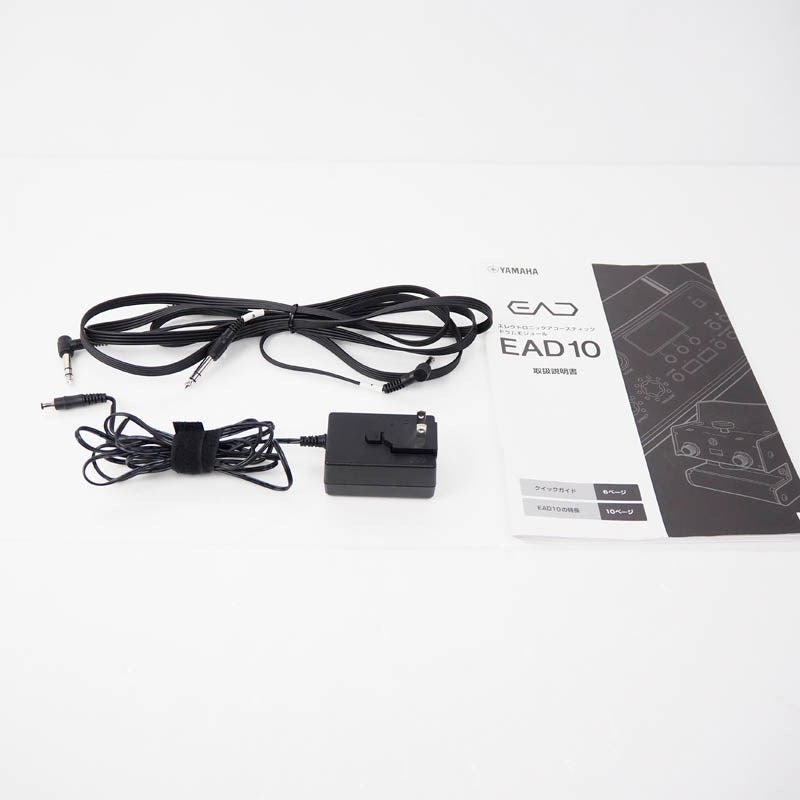

[Accessories] Instruction manual, power adapter (PA-150B), module holder, butterfly bolts for module holder (2 pieces), connection cable (1 set), cushioning stickers (2 pieces)
*Please note that this is a used item and may have minor scratches and other signs of use.
