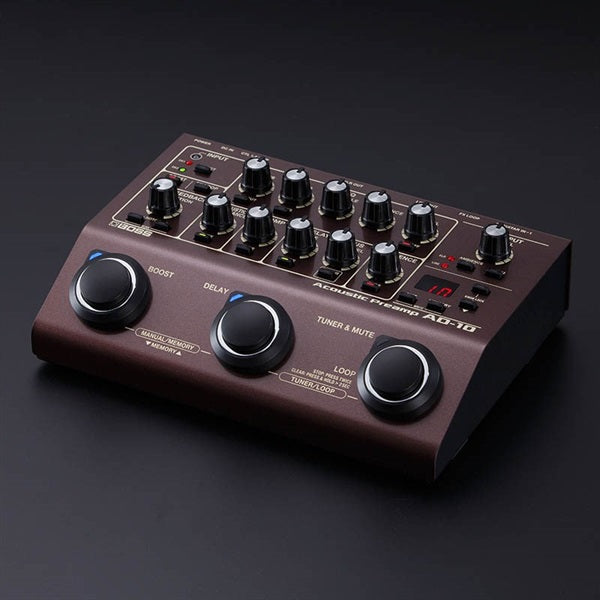

BOSS [Available for immediate delivery] BOSS AD-10 [Acoustic Preamp]

A live solution for high-end acoustic guitarists

The AD-10 is an acoustic preamp for high-end guitarists who demand the ultimate acoustic-electric sound. Its high-quality reproduction of acoustic guitar detail is enhanced by simple panel controls. The input circuit features a robust, low-noise design that transmits signals from the onboard preamp and piezo pickups with exceptional quality. Two inputs are available, supporting both piezo and magnetic pickups. The AD-10 also offers a rich, immersive sound, with features like Acoustic Resonance, a compressor with MDP processing, and a 4-band EQ optimized for acoustic guitars. Sub-parameters allow for precise tone shaping, and dedicated effects like ambience are also available. Two notches and a reduction function minimize feedback artifacts. The two stereo outputs (XLR and standard) allow for a variety of output settings to suit live performance situations.

◆ High-performance preamp designed specifically for electric acoustic guitar ◆ Two inputs, compatible with both piezo and magnetic guitars. Gain settings are available for each.
◆ Acoustic Resonance function that reproduces the warm, rich sound of a guitar ◆ MDP Compressor that provides natural, musical compression suitable for arpeggios and other sounds ◆ 4-band EQ that provides the basis for tone adjustment optimized for acoustic guitar sound
◆ Sub-parameters that allow you to achieve your desired tone and settings.
◆ Ambience and delay/chorus for a rich sound ◆ Anti-feedback is equipped with a notch filter and a reduction function to prevent deterioration in sound quality ◆ XLR stereo output terminals with ground lift function ◆ LINE OUT terminal that can output to headphones or a monitor amplifier ◆ Looper function with up to 80 seconds of storage, allowing loop performances ◆ Equipped with a manual mode with intuitive knob operation and a memory mode that allows you to recall saved settings.
◆ Power supply: AA alkaline batteries and AC adapter

Powerful as an acoustic guitar preamp
The AD-10 features two inputs for versatile use. It can accommodate guitars with dual pickups (piezo and magnetic), or switch between two connected guitars. Input gain and EQ can be adjusted individually for each input, and a boost function allows you to adjust the volume difference between fingered and strummed guitars, or for solos, with the touch of a button. Outputs include standard jacks and stereo XLR connectors. A ground lift switch allows direct connection to a PA system as a direct box. Outputs are also available, allowing for a variety of applications, including separate pre- and post-input outputs, or separate outputs for connected guitars.

For sound creation
The AD-10 features an Acoustic Resonance function that recreates the natural, full-bodied tone of an acoustic guitar, often lost due to pickup characteristics, on stage. It also features a compressor using proprietary MDP technology, an advanced technology that responds to the range and dynamics of your phrases, ensuring a consistently natural feel and sound. This next-generation compression effect is perfectly suited to any acoustic guitar playing style. Furthermore, simply turning the knobs controls internal parameters intricately, adding a sophisticated spaciousness while preserving the delicate acoustic guitar tone. The built-in delay/chorus effect is also a powerful tool for creating impressive sounds. Each effect delivers a high-quality sound optimized for acoustic guitar. In addition to the panel knobs, the AD-10 also offers internal sub-parameters. For example, the "EQ" section allows you to change the MID Q, adjust the tone of the booster function, select the type of acoustic resonance and adjust the tone, allowing you to create the sound you want.

Various features optimized for live performances: To combat feedback, which is essential for live performances, the unit features a specialized low-frequency reduction function. Simply turn the knob to effectively suppress feedback without significantly affecting sound quality. Two notch filters are also provided, automatically detecting feedback points, effectively eliminating feedback. The unit also features a looper function that can record and play up to 80 seconds of loops, enhancing performances such as solo performances, allowing you to perform in real time at any time. You can also customize the unit's operation to your liking by connecting a foot switch or expression pedal to the external control jack and assigning various functions.

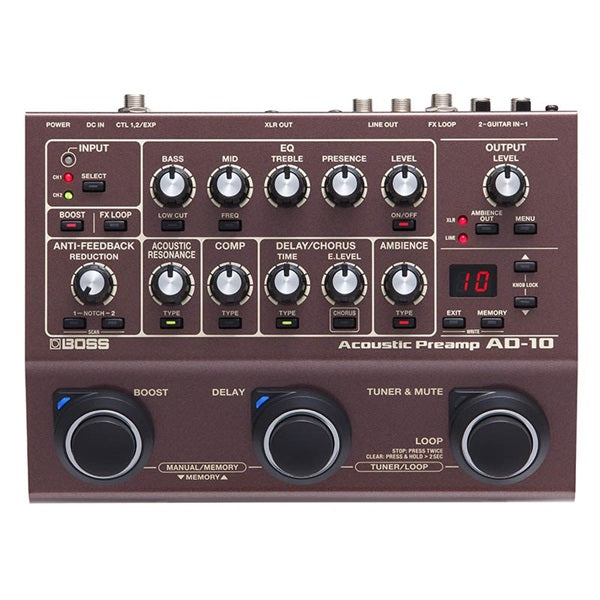

Utilities for improved usability: The basic operation is a simple manual mode, which allows you to change the tone in response to knob position. There's also a memory mode, which lets you recall up to 10 pre-saved memories for playback. It also features a built-in BOSS-quality tuner with mute function, preventing sound leakage between songs and noise when switching guitars, making for a comfortable live setup. The AD-10 is also useful for recording. Connecting to a PC via USB allows it to function as an audio interface, allowing you to create songs with high-quality acoustic guitar sounds. It's powered by six AA alkaline batteries for up to six hours of operation. An AC adapter is also supported.

■ Main specifications ● Standard input level
GUITAR IN 1, 2: -10dBu (variable)
RETURN: -10dBu
Input impedance
GUITAR IN: 10M ohms
RETURN: 220k ohms
●Standard output level
SEND: -10dBu
LINE OUT L/PHONES, R/MONO: -10dBu
XLR OUT L, R: -10dBu
Output impedance
SEND: 1k Ω
LINE OUT L/PHONES, R/MONO: 44 Ω
XLR OUT L, R: 600 Ω
● Operation mode Manual mode Memory mode ● Number of memories
10
Effects
ACOUSTIC RESONANCE (3 Types)
COMP (2 Types)
4-band EQ, low cut
BOOST
CHORUS (3 Types)
DELAY (3 Types)
REVERB (3 Types)
ANTI-FEEDBACK (REDUCTION, NOTCHx2)
Phrase Loop
80 seconds Display
7-segment 2-digit LED

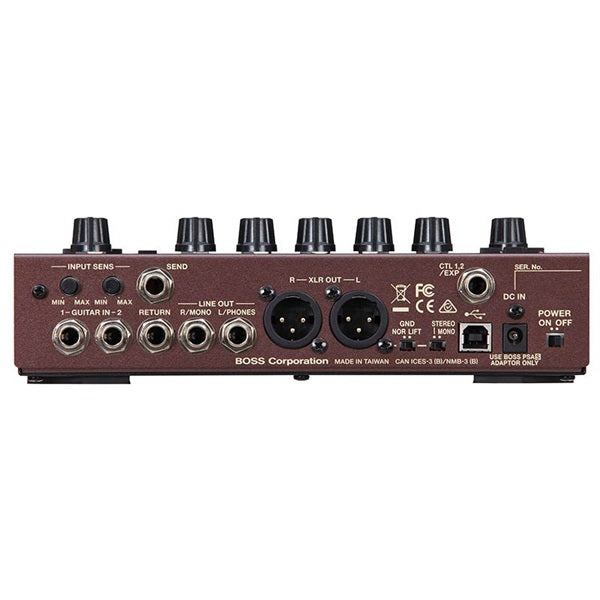

●Connection terminal
GUITAR IN 1, 2 jacks: 1/4 inch type
SEND terminal: Standard type
RETURN terminal: Standard type
XLR OUT L, R terminals: XLR type
LINE OUT L/PHONES, R/MONO terminal: Standard type
EXP/CTL1, 2 terminals: TRS standard terminals
USB COMPUTER terminal: USB Type B
DC IN terminal ●Power supply
AC adapter Alkaline batteries (AA x 6)
●Current consumption
300mA
●Battery life during continuous use: Alkaline batteries: Approximately 6 hours *Depends on usage conditions.
External dimensions
217 (W) x 161 (D) x 65 (H) mm
●Mass
1.3kg (including batteries)
●Accessories: Instruction manual "Safety precautions" leaflet Warranty card Roland user registration card
AC adapter Optional expression pedals: EV-30, FV-500H/L, Roland EV-5
Foot switch: FS-5U
Dual footswitch: FS-6, FS-7
* 0dBu = 0.775Vrms
